KBMS1454SWH0 03 – DOOR PARTS

KBMS1454SWH0 03 – DOOR PARTS

Written by

in

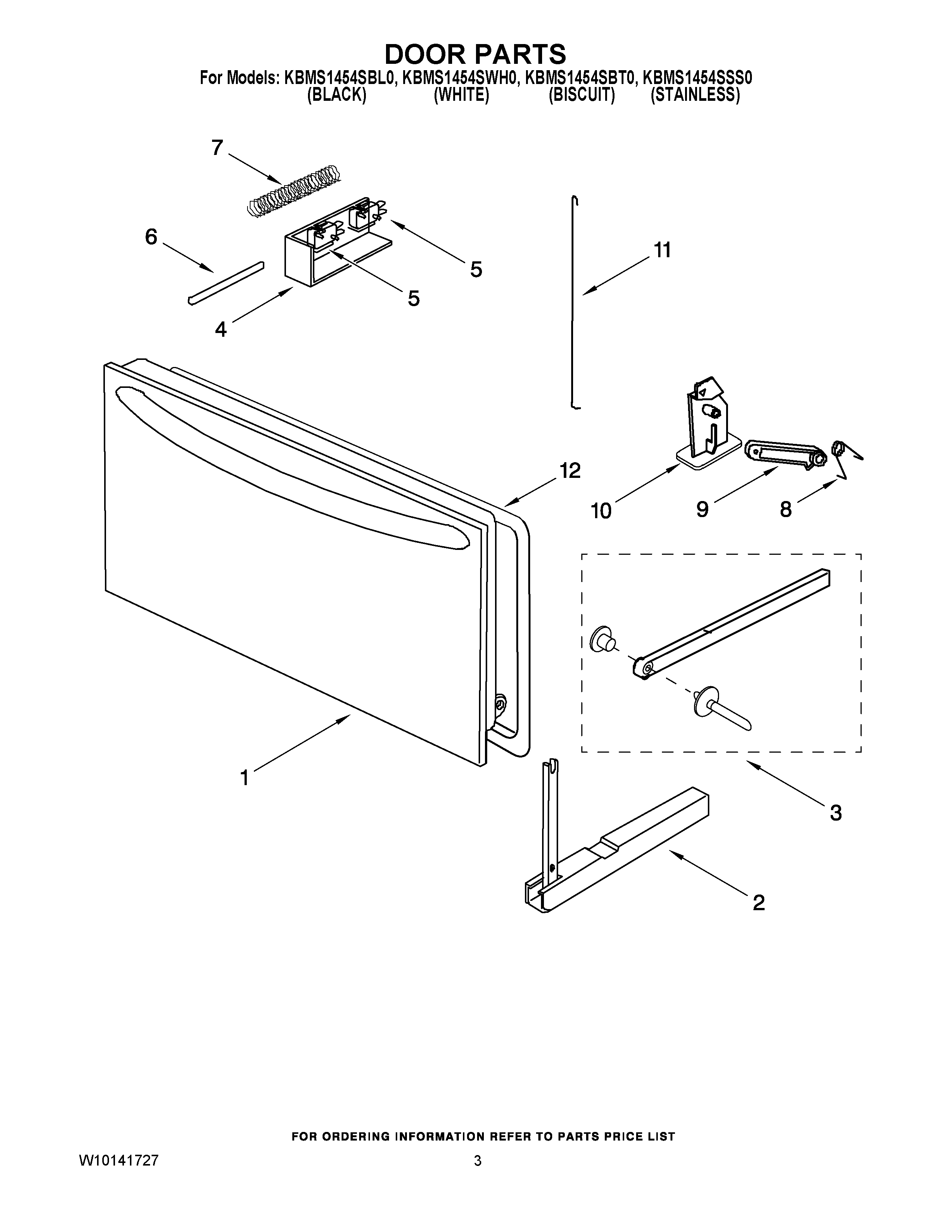

KBMS1454SWH0 03 – DOOR PARTS

Products

PositionProduct
1Door Assembly (Black)
1Door Assembly (Biscuit)
1Door Assembly (White)
1Door Assembly (Stainless)
2W11700293 Whirlpool Door Hinge
3Sliding Arm Assy
4WP8205683 Whirlpool Microwave Interlock
5W10211972 Whirlpool Microwave Switch
6Push-Rod (2)
7W11715912 Whirlpool Spring Assembly
8WPW10128850 Whirlpool Microwave Arm
10W11684510 Whirlpool Support
11W11700292 Whirlpool Spring
12Gasket
