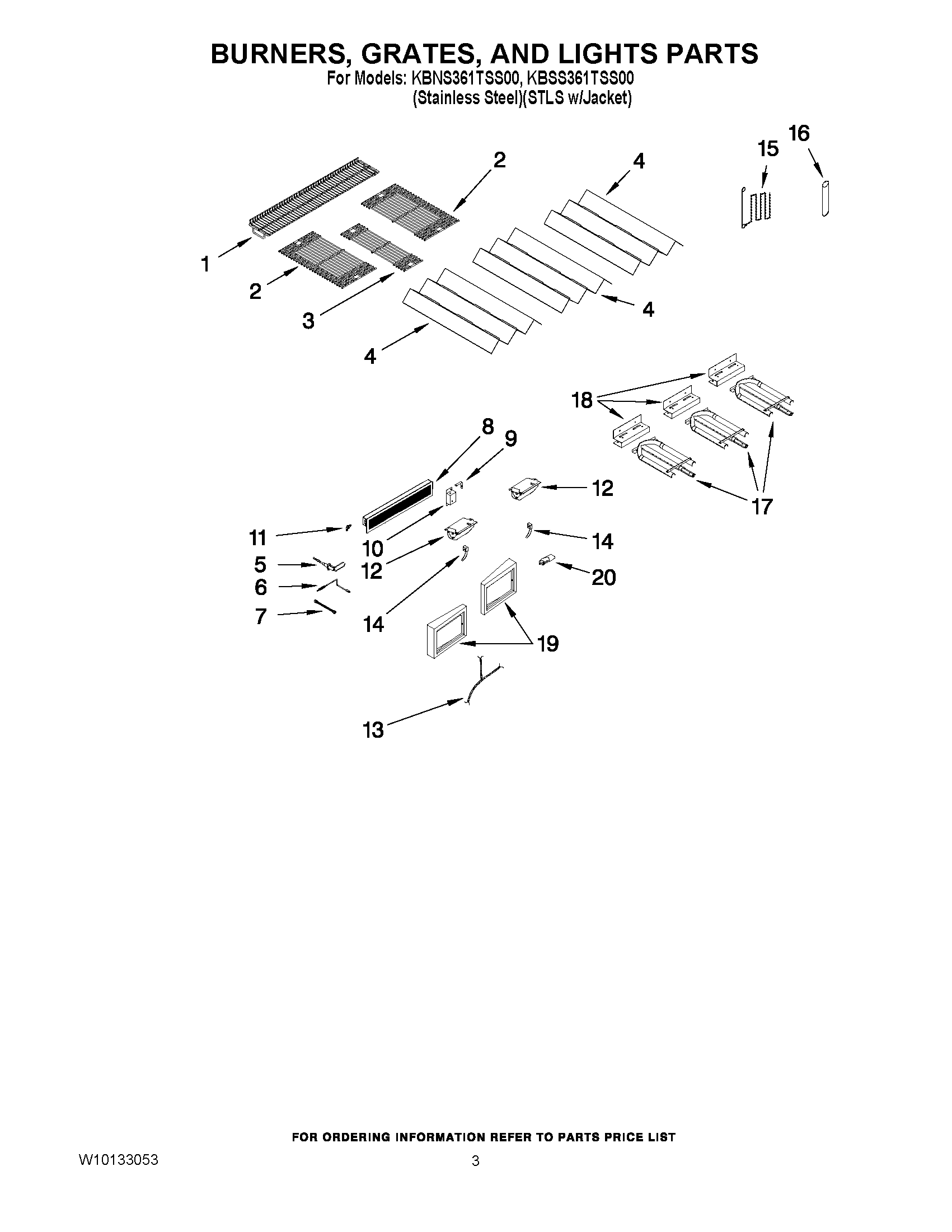

KBNS361TSS00 02 – BURNERS, GRATES, AND LIGHTS PARTS

KBNS361TSS00 02 – BURNERS, GRATES, AND LIGHTS PARTS

Written by

in

KBNS361TSS00 02 – BURNERS, GRATES, AND LIGHTS PARTS

Products

PositionProduct
1Rack, Warming
2Rack, Large
3Rack, Small
4Plate, Sear
5Electrode, Rear
6Thermocouple, Rear Burner
7Flex Tube, Rear Burner
8Burner, Rear
9Bracket, Rear Thermocouple
10Cover, Rear Thermocouple
11Orifice, Rear Burner
12Light, Grill
13HARNESS, WIRE LIGHTS
14Socket, Light
15Rod, Lighting
16Bag, Lighting Rod
17Burner, Main
18Bracket, Main Brnr
19Light Set
208204670 Whirlpool Microwave Halogen Lamp 10W 12V
