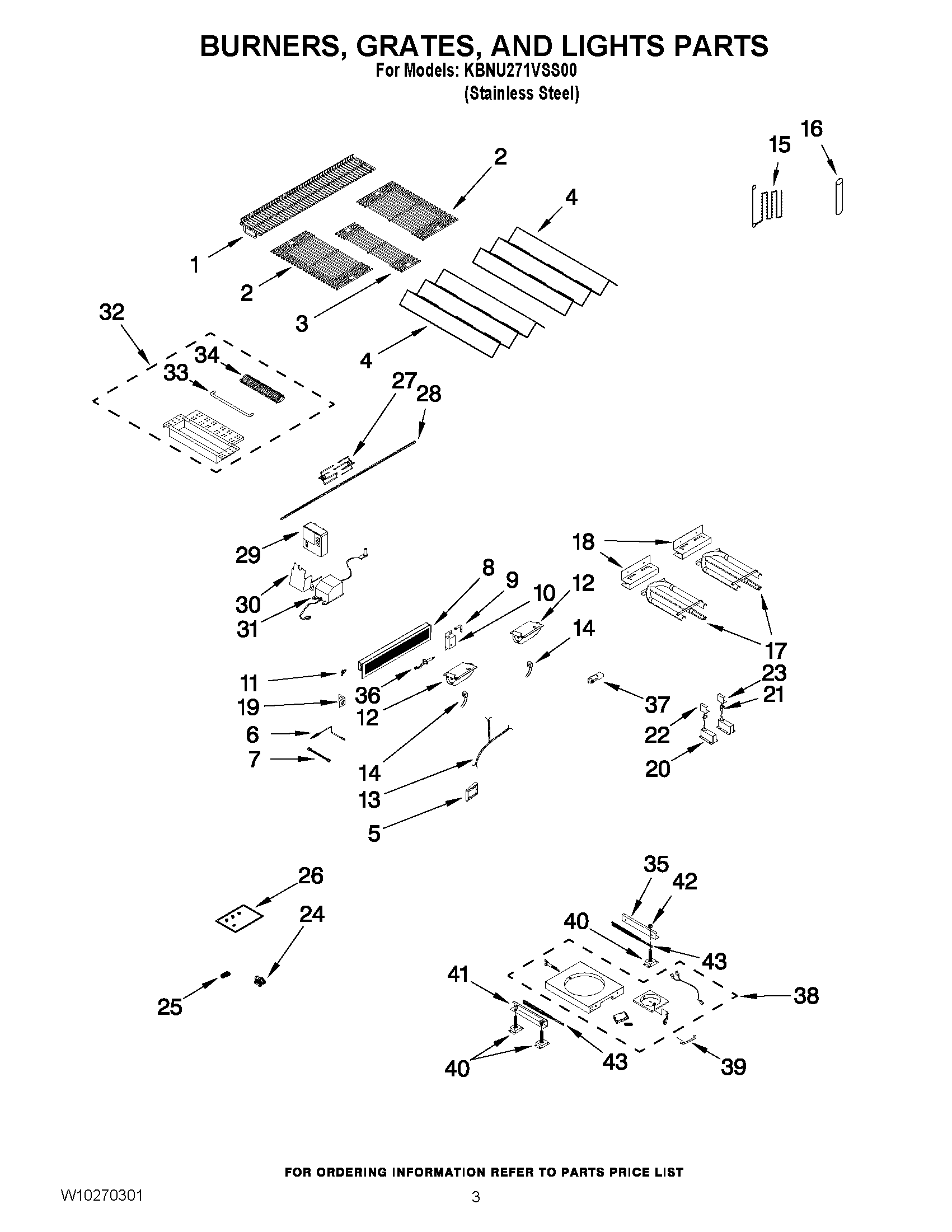

KBNU271VSS00 02 – BURNERS, GRATES, AND LIGHTS PARTS

Products

Position	Product
1	Rack, Warming
2	RACK, LARGE
3	RACK, SMALL
4	PLATE, SEAR
5	Light Set
6	Thermocouple, Rear Burner
7	Flex Tube, Rear Burner
8	Burner, Rear
9	Bracket, Rear Thermocouple
10	Cover, Rear Thermocouple
11	ORIFICE, REAR BURNER
12	Light, Grill
13	HARNESS, WIRE LIGHTS
14	Socket, Light
15	Rod, Lighting
16	Bag, Lighting Rod
17	Burner, Main
18	BRACKET,MAIN BRNR
19	BRACKET, IGNITER REAR BURNER
20	BRACKET, IGNITER FRONT BURNERS
21	IGNITER, HOT SURFACE
22	COLLECTOR,GAS LEFT
23	COLLECTOR, GAS RIGHT
24	WPW10132702 Whirlpool Regulator
25	CONNECTOR, NG
26	KIT, ORIFICE NG
27	FORK, SPIT
28	ROD, SPIT
29	WPW10167017 Whirlpool Rotisserie Motor
30	BRACKET, MOTOR
31	WPW10247115 Whirlpool Transformer
32	BOX, SMOKER
33	HANDLE, SMOKER
34	GRATE, SMOKER
35	BRACKET, RIGHT
36	IGNITOR, HOT
37	8204670 Whirlpool Microwave Halogen Lamp 10W 12V
38	WPW10291260 Whirlpool Electronic Control Board
39	HANDLE, TRAY
40	NUT, ADJUSTABLE
41	BRACKET, LEFT
42	BRACKET, FIXING
43	SLIDE, TRAY
