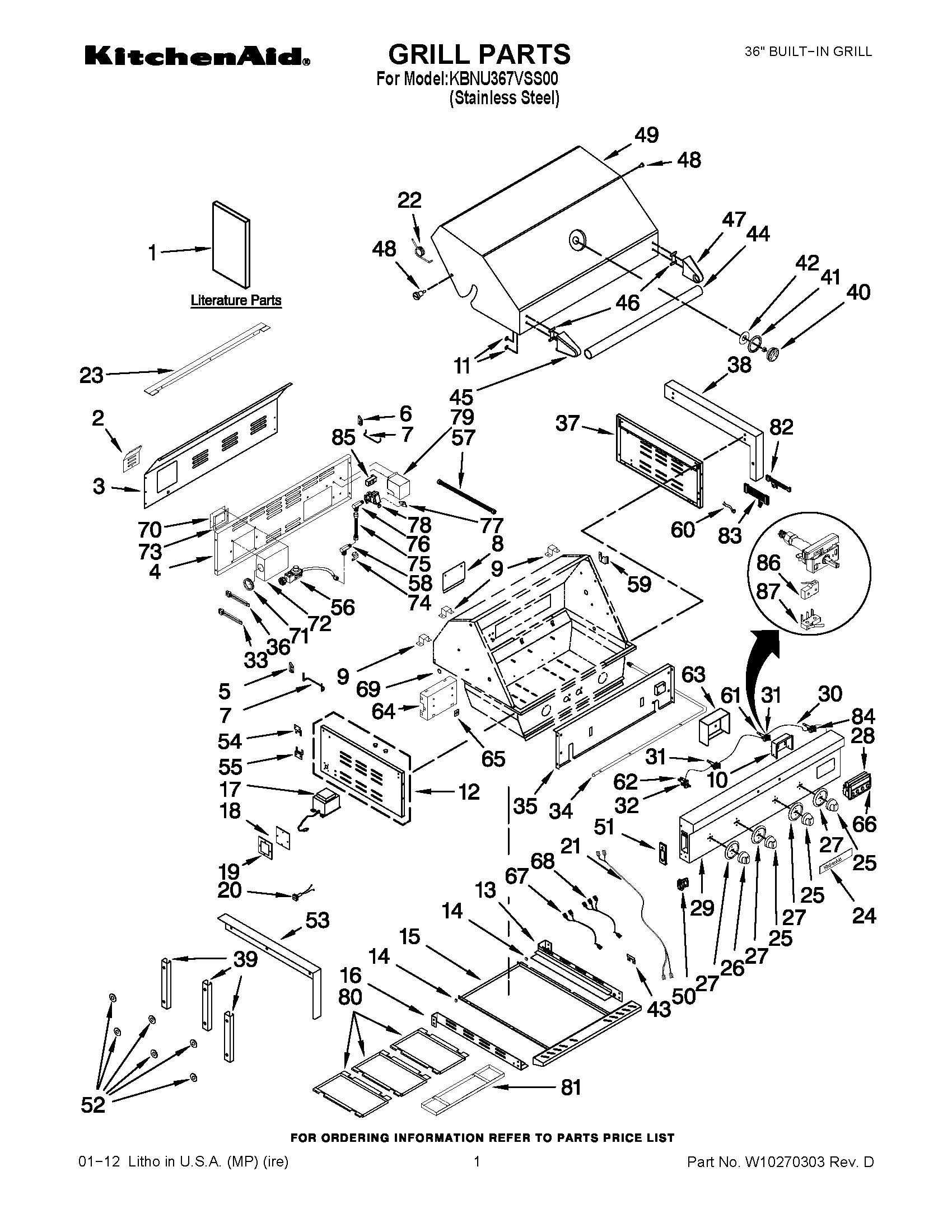

KBNU367VSS00 01 – GRILL PARTS

Products

PositionProduct
1Use & Care Guide
1Conversion Instr. (LP to Natural)
2Cover, Rear
4PANEL, ACCESS
5BRACKET, PANEL (LEFT)
6BRACKET, PANEL (RIGHT)
7BRACKET, WARMING RACK
8Cover, Access Panel
9Clip, Wire
10BOX, DISPLAY
11Hole Plug
12PANEL, SIDE LEFT
13BRACKET, GREASE TRAY (RIGHT)
14Roller, Drip Tray
15DRIP TRAY ASSY (INCLUDES ROLLERS)
16BRACKET, GREASE TRAY (LEFT)
17W10247117 Whirlpool Oven Transformer
18COVER, WIRE TERMINAL
19WASHER, TERMINAL
20W10247122 Whirlpool Outlet
21W10133876 Whirlpool Wire Harness
22SPRING, HINGE
23FLANGE, BACK
24Nameplate
25W10128753 Whirlpool Knob Assembly
26WPW10128756 Whirlpool Knob
27Bezel, Knob
28WPW10244945 Whirlpool Electronic Control Board
29PANEL, CONTROL
30W10291262 Whirlpool Wire Harness
31WPW10244954 Whirlpool Main Valve
32WPW10244951 Whirlpool Main Valve
33WIRE, LOAD CELL
34MANIFOLD
35BAFFLE, FRONT
36W10247099 Whirlpool Wire Harness
37SIDE PANEL, RIGHT
38Flange (RT)
39Bracket, Flange
40Thermometer
41Bezel, Thermometer
42INSULATOR, THERMOMETER(SMALL)
43STOP, BATTERY BOX
44Handle, Hood
45Endcap, Handle (Left)
46Spacer, Handle
47Endcap, Handle (Right)
48Hinge, Lid
49HOOD
50BOX, BATTERY
51COVER, BATTERY BOX
52WASHER
53Flange (LF)
54Brkt, Trnsfrmr (Top)
55Brkt, Trnsfrmr (Btm)
56REGULATOR (LP)
57FLEX TUBE, MANIFOLD
58CONNECTOR (BRASS)
59BRACKET, SPIT
60W10247126 Whirlpool Wire Harness
61VA
62WPL W10244952
63WPL W10244956
64WPL W10247145
65WPL W10247146
66WPL W10244946
67W10247178 Whirlpool Wire Harness
68WPL W10247127
69WPL W10247110
70WPL W10247095
71WPL W10246877
72WPL W10247101
73WPL W10247102
74WPL W10247103
75WPL W10247105
76WPL W10244333
77WPL W10244337
78WPW10247149 Whirlpool Oven Valve
79WPL W10244336
80WPL W10244963
81WPL W10244964
82W10247179 Whirlpool Wire Harness
83W10247132 Whirlpool Wire Harness
84W10244953 Whirlpool Main Valve
85CABINET (NOT A SERVICEABLE PART)
86WPW10246888 Whirlpool Microswitch
