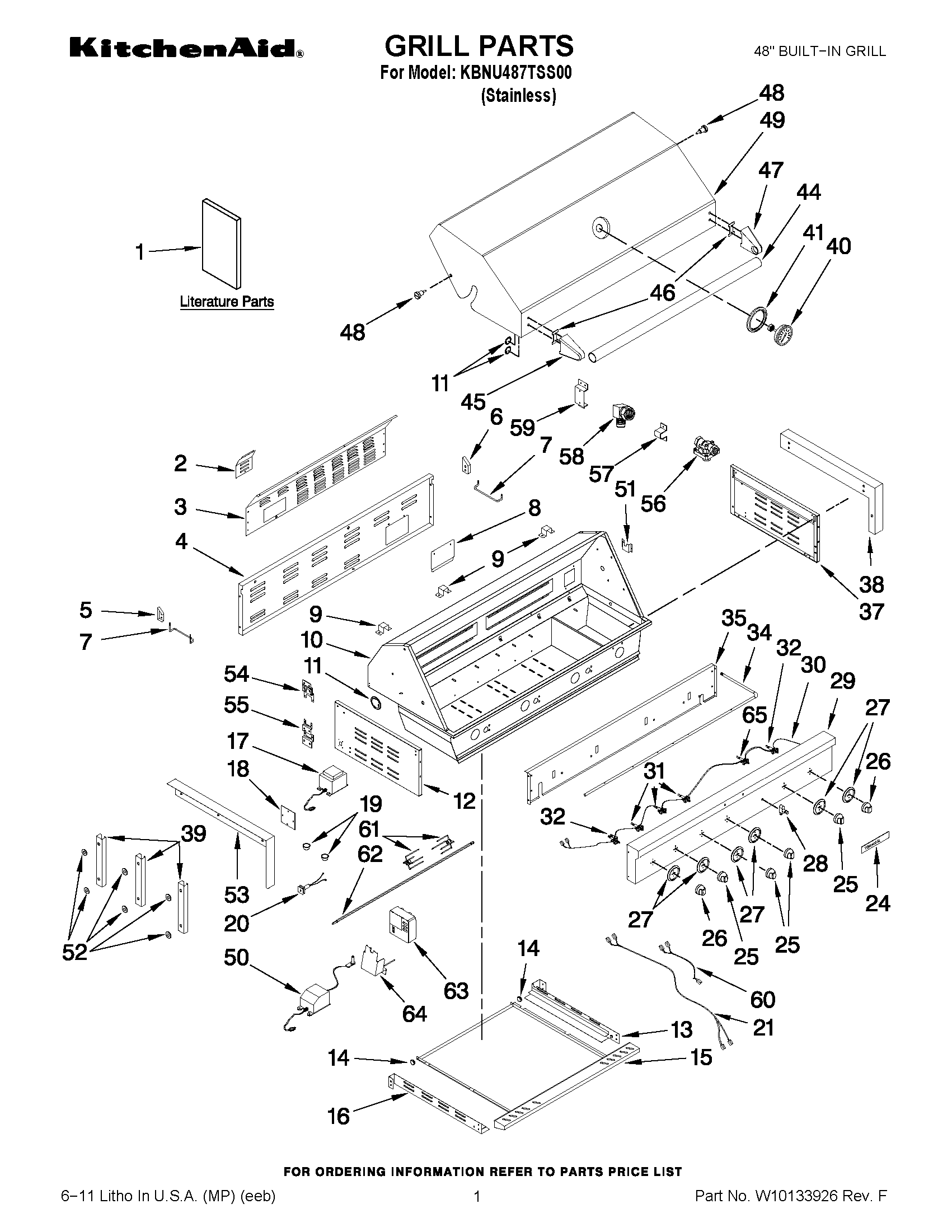

KBNU487TSS00 01 – GRILL PARTS

Products

Position	Product
1	Use & Care Guide
1	Conversion Instr. (LP to Natural)
2	Cover, Rear
3	Panel, Rear
4	Panel, Access
5	Bracket, Panel Left
6	Bracket, Panel Right
7	Bracket, Warming Rack
8	Cover, Access Panel
9	Clip, Wire
10	Hood Assy
11	Hole Plug
12	Panel, Side Left
13	Bracket, Grease Tray (Right)
14	Roller, Drip Tray
15	Drip Tray Assy (Includes Rollers)
15	Drip Tray Assy (Includes Rollers) (Small)
16	Bracket, Grease Tray (Left)
17	W10247117 Whirlpool Oven Transformer
18	Cover, Wire Terminal
19	BUSHING (PLASTIC (No.SB22))
19	BUSHING (PLASTIC (No.SB22))
20	Outlet, Transformer
21	W10133876 Whirlpool Wire Harness
24	Nameplate
25	W10128753 Whirlpool Knob Assembly
26	WPW10128756 Whirlpool Knob
27	Bezel, Knob
28	Switch, Light
29	Panel, Control
30	Harness, Wire Control
31	WPW10128764 Whirlpool Oven Main Valve
32	WPW10128766 Whirlpool Main Valve
34	MANIFOLD
35	Baffle, Front
37	Side Panel, Right
38	Flange (RT)
39	Bracket, Flange
40	Thermometer
41	Bezel, Thermometer
44	Handle, Hood
45	Endcap, Handle (Left)
46	Spacer, Handle
47	Endcap, Handle (Right)
48	Hinge, Lid
49	HOOD
50	WPW10247115 Whirlpool Transformer
51	Bracket, Spit
52	WASHER
53	Flange (LF)
54	Brkt, Trnsfrmr (Top)
55	Brkt, Trnsfrmr (Btm)
56	WPW10132702 Whirlpool Regulator
57	Fixture, Manifold
58	Connector (Bra
59	WPL W10128749
60	WPL W10134818
61	WPL W10134981
62	Rod, Spit
63	WPW10167017 Whirlpool Rotisserie Motor
64	WPL W10134986
