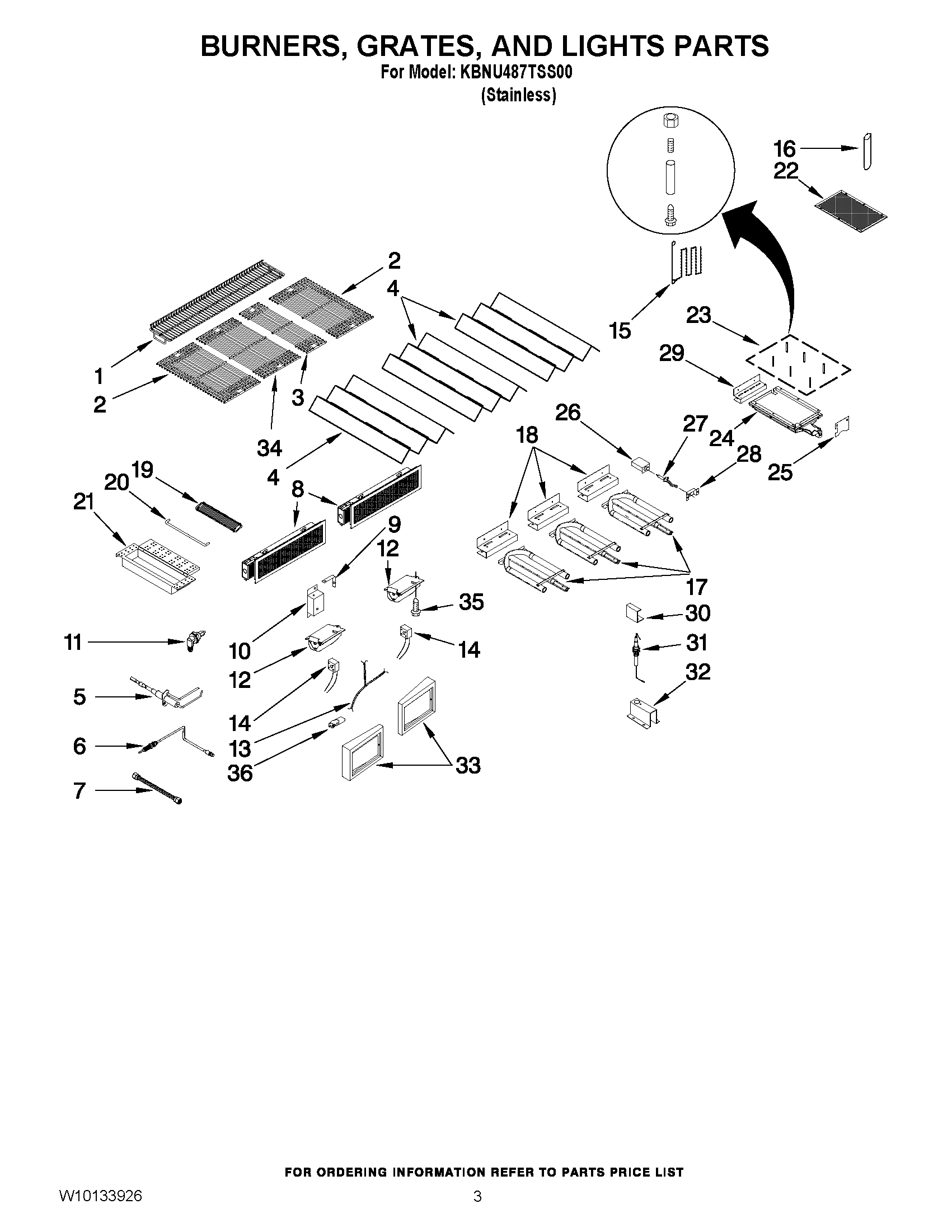

KBNU487TSS00 02 – BURNERS, GRATES, AND LIGHTS PARTSadmin2025-04-26T09:36:10+00:00KBNU487TSS00 02 – BURNERS, GRATES, AND LIGHTS PARTS
Products
| Position | Product |
|---|
| 1 | Rack, Warming |
| 2 | Rack, Large |
| 3 | Rack, Small |
| 4 | Plate, Sear |
| 5 | Electrode Kit, Rotisserie |
| 6 | Thermocouple, Rear Burner |
| 7 | Flex Tube, Rear Burner |
| 8 | Burner, Rear |
| 9 | Bracket, Rear Thermocouple |
| 10 | Cover, Rear Thermocouple (Right) |
| 10 | Cover, Rear Thermocouple |
| 11 | Orifice, Rear Burner |
| 12 | Light, Grill |
| 13 | HARNESS, WIRE LIGHTS |
| 14 | Socket, Light |
| 15 | Rod, Lighting |
| 16 | Bag, Lighting Rod |
| 17 | Burner, Main |
| 18 | Bracket, Main Brnr |
| 19 | GRATE, SMOKER |
| 20 | HANDLE, SMOKER |
| 21 | Box, Smoke |
| 22 | Screen, Sear Brnr |
| 23 | ROD, KIT |
| 24 | WPW10134795 Whirlpool Burner |
| 25 | Panel, Sear Brnr |
| 26 | Ignitor, Gas Coll. |
| 27 | Igniter, Sear Brnr |
| 28 | Bracket, Sear Ign. |
| 29 | Bracket, Sear Brnr |
| 30 | IGNITOR, GAS COLL. |
| 31 | IGNITER,HOT SURFCE |
| 32 | Bracket, Main Brnr |
| 33 | Light Set |
| 34 | Rack, Middle |
| 35 | Screw, 5/32 x 20 |
| 36 | 8204670 Whirlpool Microwave Halogen Lamp 10W 12V |
