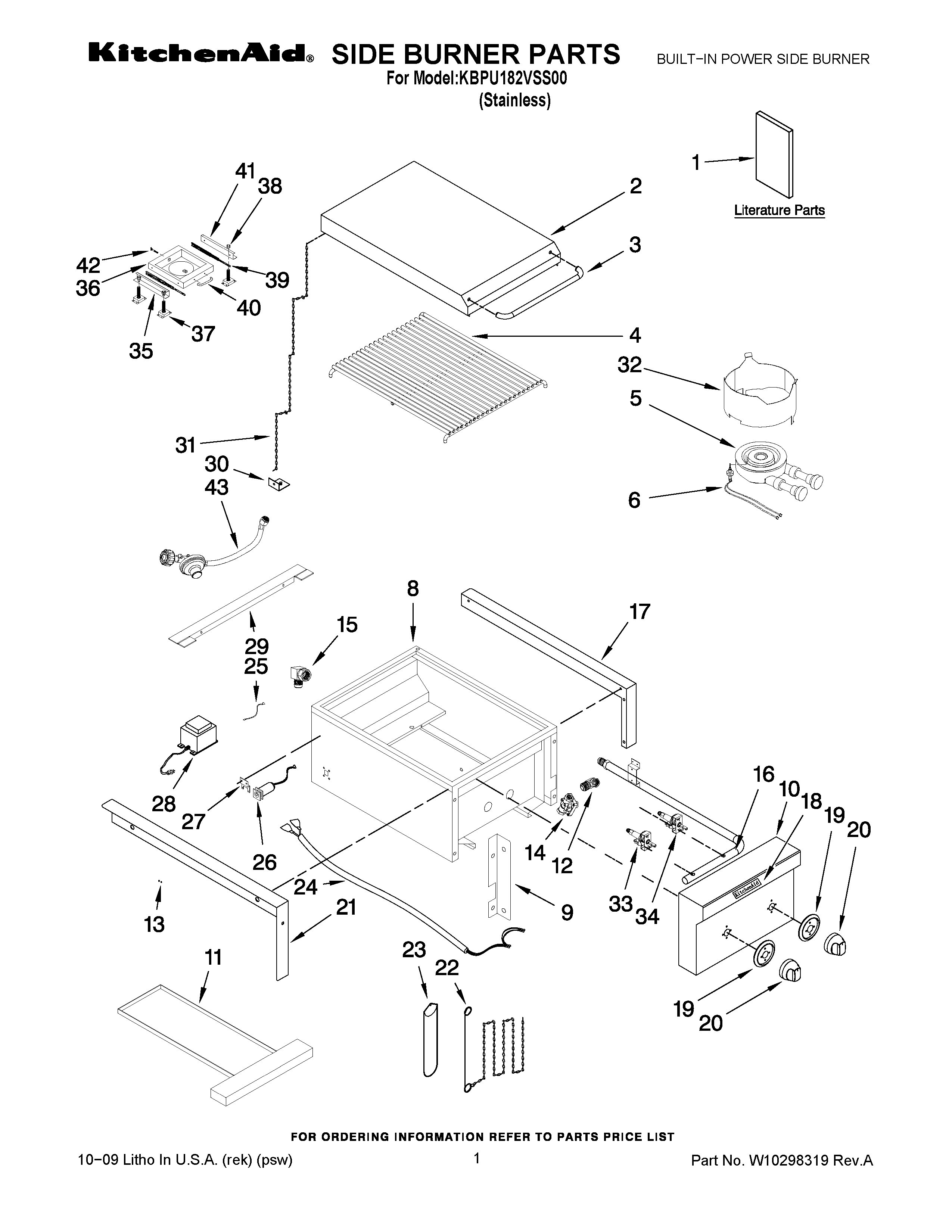

KBPU182VSS00 01 – SIDE BURNER PARTS

Products

Position	Product
1	U & C GUIDE / INSTRUCTIONS, INSTALLATION
2	COVER, BURNER
3	BAR, TOOL
4	GRATE, BURNER
5	BURNER
6	IGNITOR, SURFACE
8	BOX, BURNER
9	BRACKET, PANEL
10	PANEL, CONTROL
11	TRAY, GREASE
12	CONN, BRASS NG
13	KIT, ORIFICE
14	WPW10132702 Whirlpool Regulator
15	CONN, BRASS LP
16	MANIFOLD
17	FLANGE, RIGHT
18	NAMEPLATE
19	WPW10128756 Whirlpool Knob
20	W10285660 Whirlpool Knob
21	FLANGE, LEFT
22	ROD, LIGHTING
23	BAG, LTG ROD
24	HARNESS, WIRE
25	HARNS, WIRE
26	W10247122 Whirlpool Outlet
27	BRACKET, TRANSFRMR
28	TRANSFORMER
29	FLANGE, BACK
30	STATOR, CHAIN
31	CHAIN
32	SHIELD
33	VALVE, BURNER
34	VALVE, BURNER
35	BRACKET, LEFT
36	TRAY, TANK
37	BRACKET, FIXING
38	NUT, ADJUSTABLE
39	SLIDE, TRAY
40	HANDLE, TRAY
41	BRACKET, RIGHT
42	BOLT, TANK
43	REGULATOR (LP)
