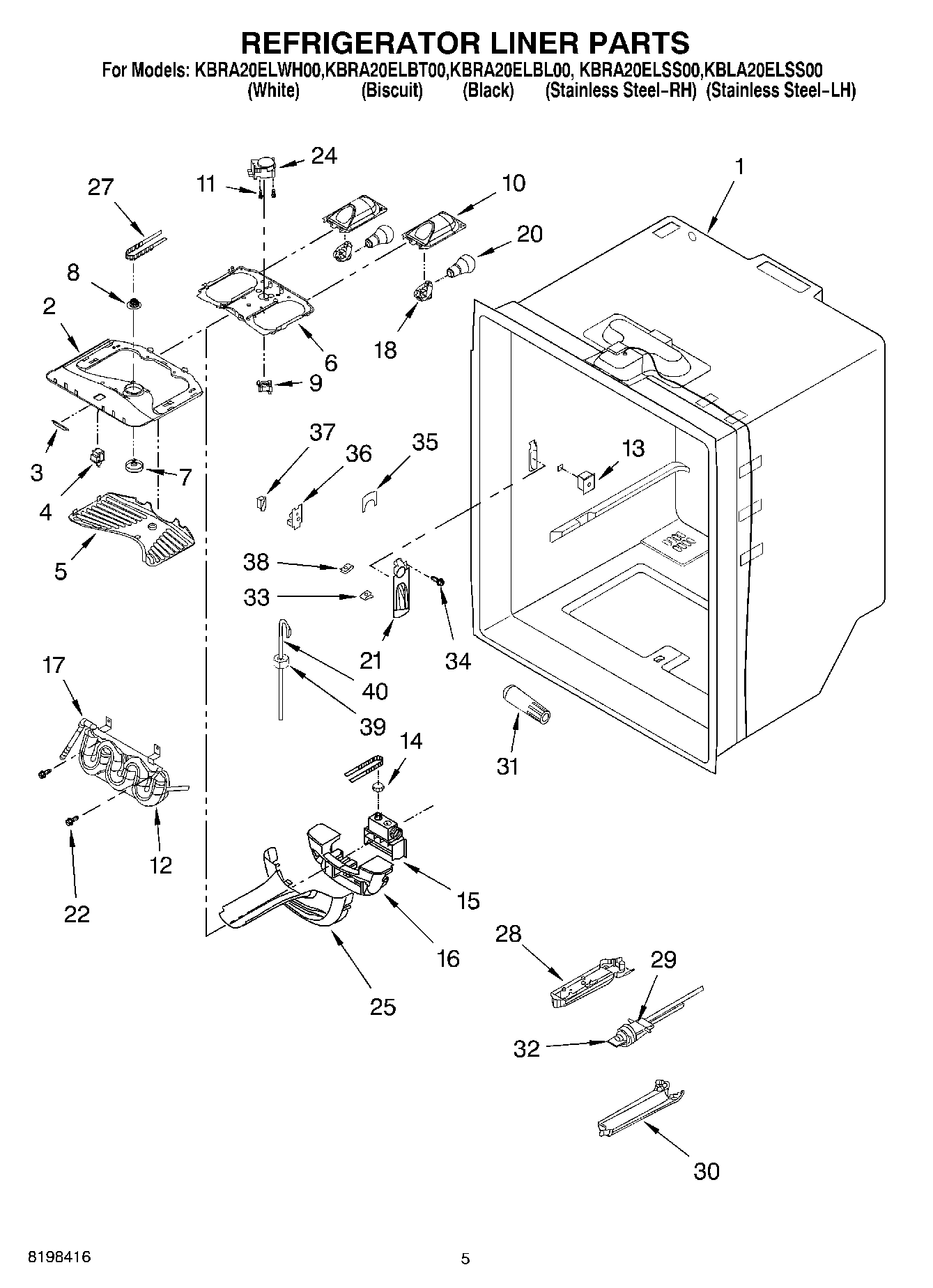

KBRA20ELBT00 03 – REFRIGERATOR LINER PARTSadmin2025-04-26T09:35:55+00:00KBRA20ELBT00 03 – REFRIGERATOR LINER PARTS
Products
| Position | Product |
|---|
| 1 | Liner (Not A Serviceable Part) |
| 2 | Housing, Ref. Light |
| 3 | OVERLAY |
| 4 | W11384469 Whirlpool Door Switch |
| 5 | Cover, Ref. Light |
| 6 | WP67002085 Whirlpool Refrigerator Housing |
| 7 | Knob, Damper |
| 8 | 67001033 Whirlpool Refrigerator Knob Gear |
| 9 | 67001034 Whirlpool Refrigerator Tensioner Belt |
| 10 | Housing, Light |
| 11 | Screw (2) |
| 12 | W11361728 Whirlpool Reservoir Assembly |
| 13 | Grommet, Screw |
| 14 | Gear, Damper |
| 15 | Control, Damper |
| 16 | Insulation, Damper |
| 17 | WP2300868 Whirlpool Refrigerator Fitting |
| 18 | W11447232 Whirlpool Refrigerator Socket |
| 20 | W11679940 Whirlpool Refrigerator Light Bulb Assembly |
| 21 | Dispenser |
| 24 | WP67001036 Whirlpool Refrigerator Defrost Timer |
| 25 | Cover, Control |
| 27 | Belt, Damper |
| 28 | PLATE-FIL |
| 29 | Housing, Water Filter Assembly |
| 30 | WP12568001 Whirlpool Filter Cover |
| 31 | everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water |
| 32 | Head, Filter Bypass |
| 33 | 67002816 Whirlpool Refrigerator Waterline Clip |
| 34 | 67006425 Whirlpool Refrigerator Screw |
| 35 | W11519867 Whirlpool Refrigerator Cover |
| 36 | 12707303SP Whirlpool Refrigerator Plate |
| 37 | WP12575501 Whirlpool Refrigerator Micro Switch |
| 38 | Clip, Front |
| 39 | W11677725 Whirlpool Refrigerator Guide |
| 40 | W10823511 Whirlpool Refrigerator Water Tube |
