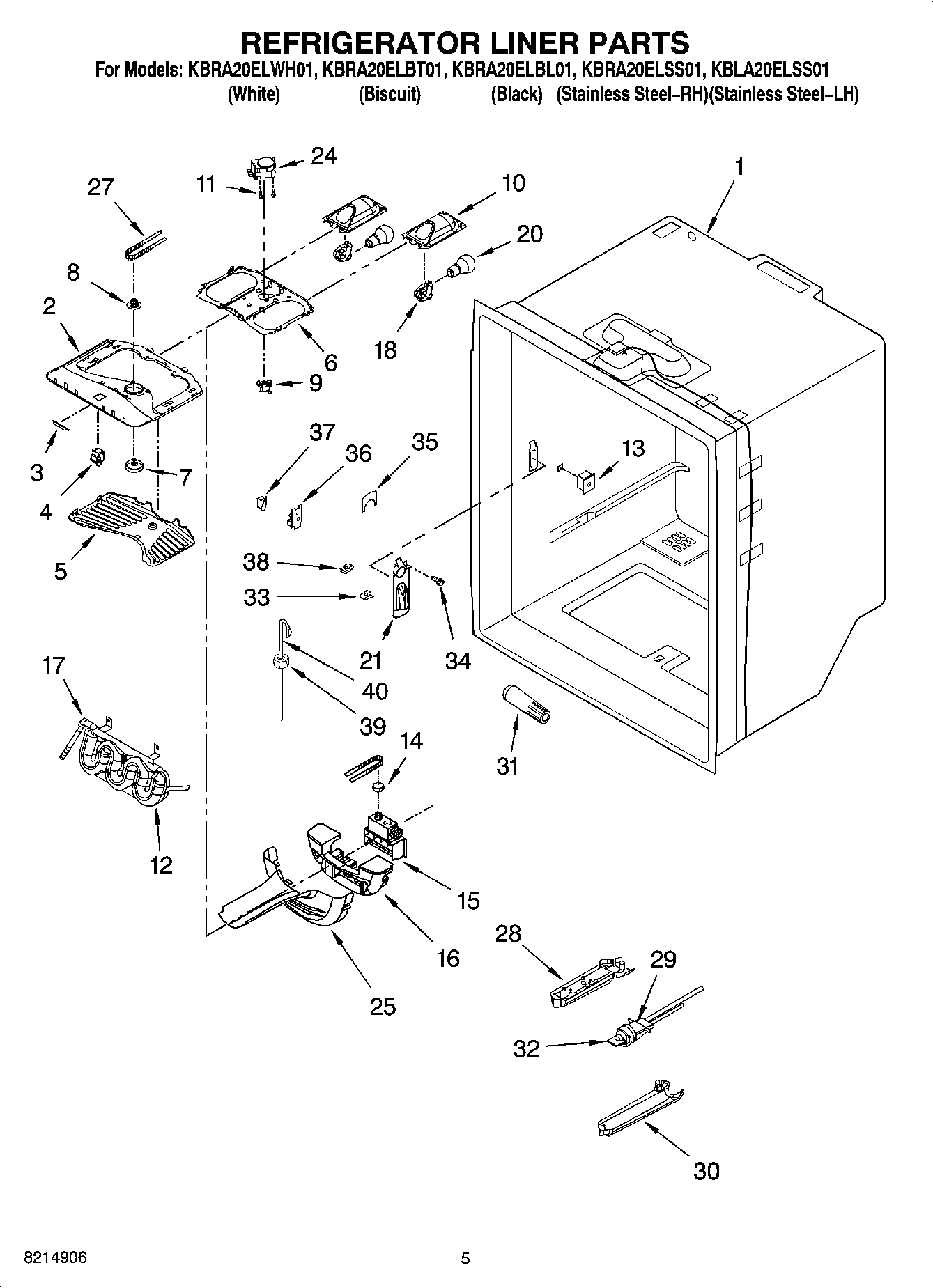

KBRA20ELBT01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Housing, Ref. Light
3	OVERLAY
4	W11384469 Whirlpool Door Switch
5	Cover, Ref. Light
6	WP67002085 Whirlpool Refrigerator Housing
7	Knob, Damper
8	67001033 Whirlpool Refrigerator Knob Gear
9	67001034 Whirlpool Refrigerator Tensioner Belt
10	Housing, Light
11	Screw (2)
12	W11361728 Whirlpool Reservoir Assembly
13	Grommet, Screw
14	Gear, Damper
15	Control, Damper
16	Insulation, Damper
17	WP2300868 Whirlpool Refrigerator Fitting
18	W11447232 Whirlpool Refrigerator Socket
20	W11679940 Whirlpool Refrigerator Light Bulb Assembly
21	Dispenser
24	WP67001036 Whirlpool Refrigerator Defrost Timer
25	Cover, Control
27	Belt, Damper
28	PLATE-FIL
29	Housing, Water Filter Assembly
30	WP12568001 Whirlpool Filter Cover
31	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
32	Head, Filter Bypass
33	67002816 Whirlpool Refrigerator Waterline Clip
34	67006425 Whirlpool Refrigerator Screw
35	W11519867 Whirlpool Refrigerator Cover
36	12707303SP Whirlpool Refrigerator Plate
37	WP12575501 Whirlpool Refrigerator Micro Switch
38	Clip, Front
39	W11677725 Whirlpool Refrigerator Guide
40	W10823511 Whirlpool Refrigerator Water Tube
