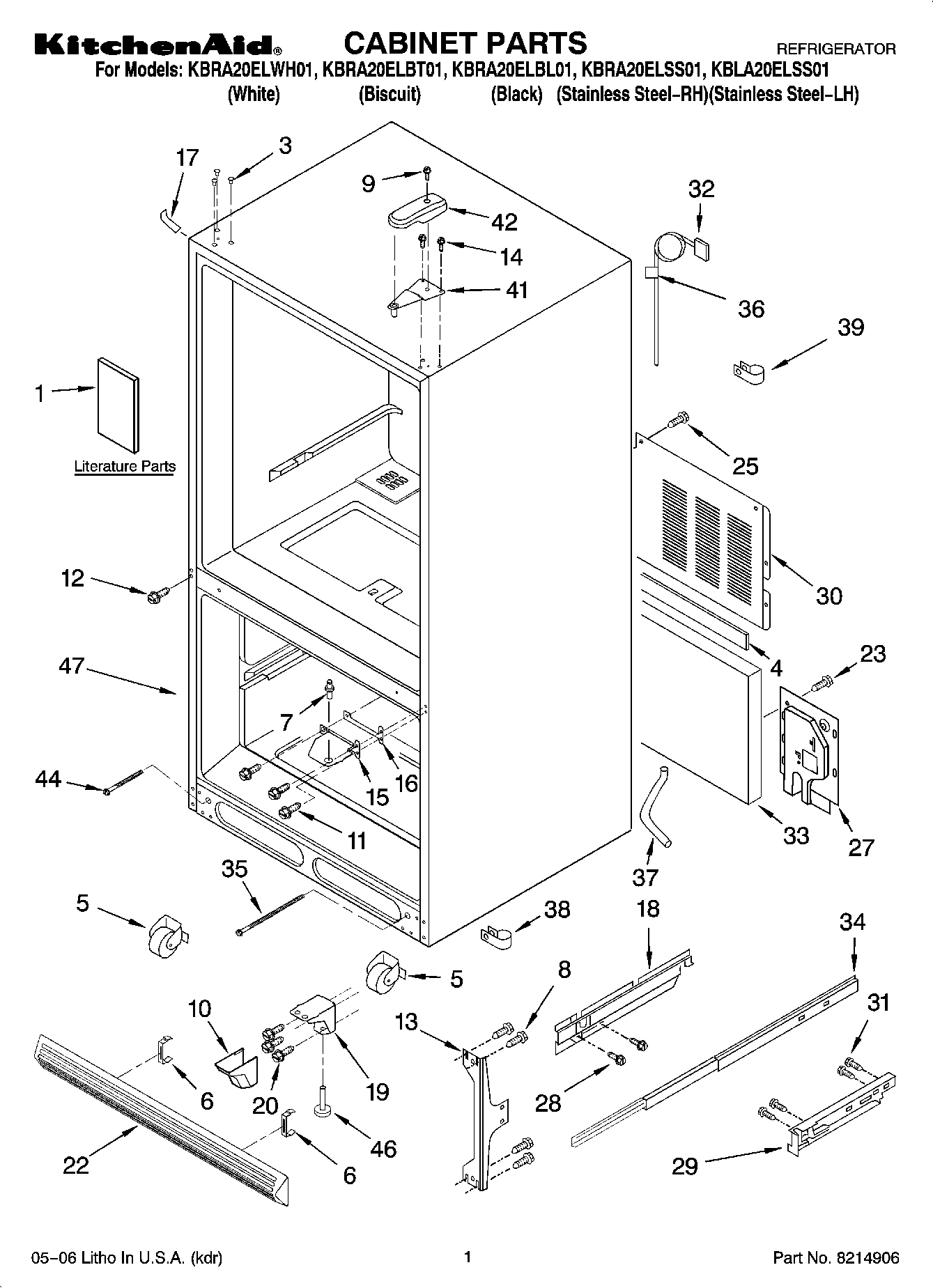

KBRA20ELSS01 01 – CABINET PARTS

KBRA20ELSS01 01 – CABINET PARTS

Written by

in

KBRA20ELSS01 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Tech Sheet
1Guide, Energy
3W10709784 Whirlpool Refrigerator Handle Plug
3WP2189000 Whirlpool Refrigerator Handle Plug
3WP2189009 Whirlpool Refrigerator Handle Plug
4GASKET
5Roller Assembly
6Clip, Grille
712002311 Whirlpool Refrigerator Center Hinge Pin Kit
8WP98165 Whirlpool Screw
9Screw
10Hinge Cover, Bottom (White)
10Hinge Cover, Bottom (Black)
10Hinge Cover, Bottom (Biscuit)
11WP67006380 Whirlpool Screw
13Bracket, Door (2)
14WP489349 Whirlpool Refrigerator Screw
15WP12607104ED Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
16WPM0274062 Whirlpool Refrigerator Shim
16WPM0274057 Whirlpool Refrigerator Shim
17Cover, Corner (Biscuit)
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1767003484 Whirlpool Refrigerator White Corner Cover
18Bracket, Slide (2) (Left)
18Bracket, Slide (2) (Right)
19Hinge Bottom (Black)
19Hinge Bottom (White)
20WP67006715 Whirlpool Refrigerator Screw
22Grille Assembly (Includes Clips) (White)
22Grille Assembly (Includes Clips) (Biscuit)
22WP67002224 Whirlpool Refrigerator Grille Assembly
23681390 Whirlpool Refrigerator Screw
25WPL 4344167
27Cover, Water Valve
28WPL 4343861
29Track, Door (Left)
29Track, Door (Right)
30Cover, Unit
31WP489474 Whirlpool Refrigerator Screw
32WP67006506 Whirlpool Refrigerator Power Cord
3367003796 Whirlpool Refrigerator Fiber Acoustic
34Slide, Drawer (2)
35Bolt, Adjusting (Rear)
36Clip, Cord
37Tube, Drain
3867001067 Whirlpool Refrigerator Drain Tube Clip
39W10833902 Whirlpool Refrigerator Clamp
41WP12566606ED Whirlpool Refrigerator Door Hinge
42Cover, Hinge (Biscuit)
4267001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
4267001014 Whirlpool Refrigerator Top Hinge Cover White
4471003131 Whirlpool Oven Screw
46W11177593 Whirlpool Leveling Feet
47Cabi
