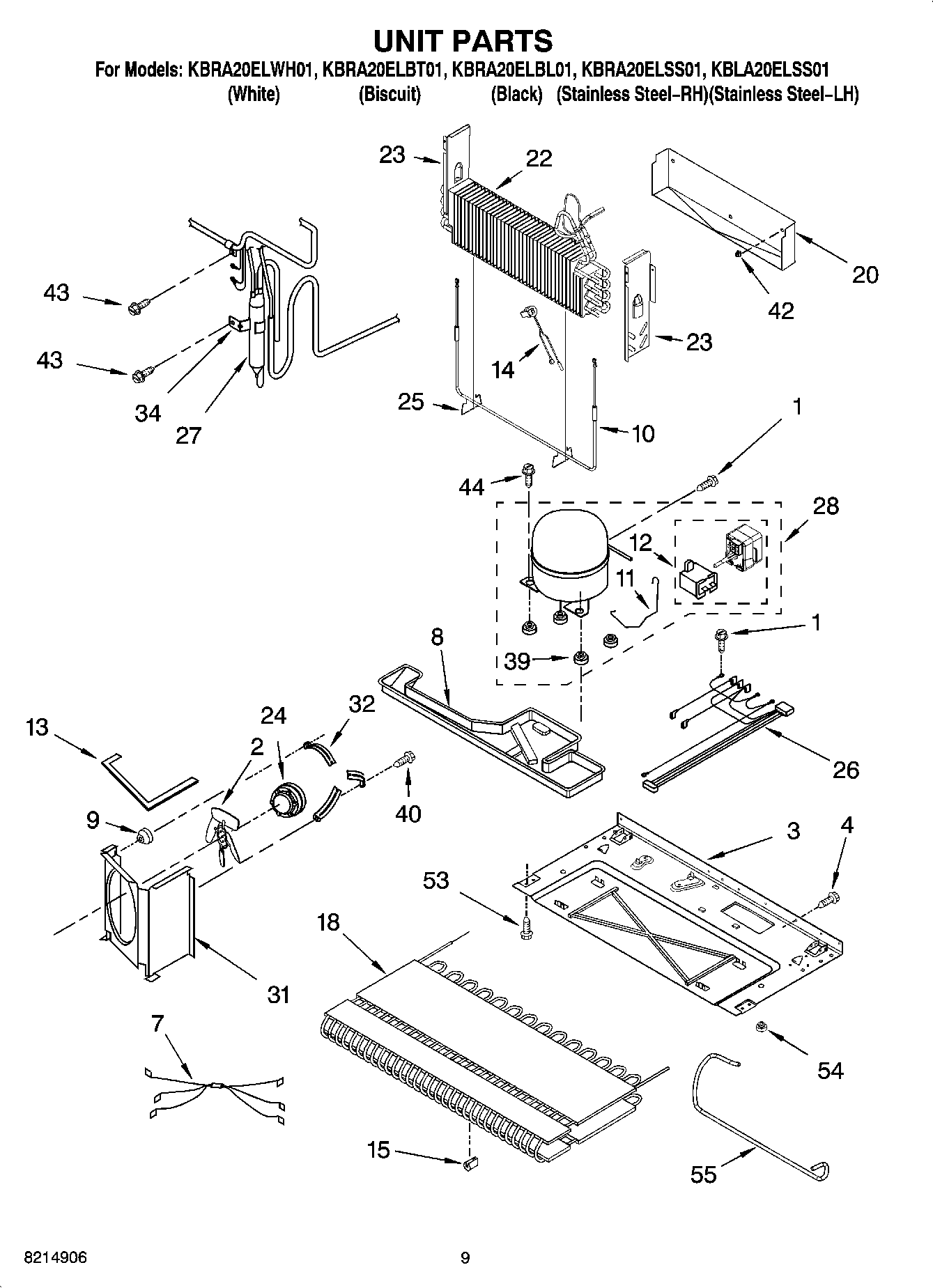

KBRA20ELWH01 05 – UNIT PARTS

KBRA20ELWH01 05 – UNIT PARTS

Written by

in

KBRA20ELWH01 05 – UNIT PARTS

Products

PositionProduct
112992301 Whirlpool Refrigerator Screw
2WP12587601 Whirlpool Refrigerator Condenser Blade
3Base
4WPL 4344167
7Harness, Evap. Heater
8Drain Pan
9Grommet (3)
10WP67002493 Whirlpool Refrigerator Defrost Heater
11Clip
12W10613606 Whirlpool Refrigerator Start Device Relay Overload
13WP854334 Whirlpool Air Conditioner Sealing Strip
1412001937 Whirlpool Refrigerator 42-Degree Defrost Thermostat
1567005680 Whirlpool Refrigerator Condenser Grommet
18WP67006131 Whirlpool Refrigerator Condenser
20Tray, Drip
2212002041 Whirlpool Refrigerator Evaporator Replacement Kit
23Dam (Left Side)
23Dam (Right Side)
24833697 Whirlpool Condenser Fan Motor
25W11673433 Whirlpool Clip
26Harness, Unit
27W10843121 Whirlpool Refrigerator Tube
28W10309990 Whirlpool Refrigerator Compressor
31SHROUD
32Bracket, Fan Motor
34Clip, Drier
39WPL 4343845
40Screw
42Clip, Evap Motor
43W10709801 Whirlpool Refrigerator Screw
44WPL 4343847
53WPL 4344292
54A3076901 Whirlpool Refrigerator Plug
55and Optional Parts Not Included
55Following Parts Not Illustrated
55Tube, Discharge
55876764 Whirlpool Refrigerator Primary Valve
55978027 Whirlpool Refrigerator Primary Valve
55978026 Whirlpool Refrigerator Primary Valve
55978030 Whirlpool Refrigerator Valve
55WP978025 Whirlpool Refrigerator Valve
55VALVE, ACCESS (1/2“)
55VALVE, ACCESS (5/8“)
55REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
