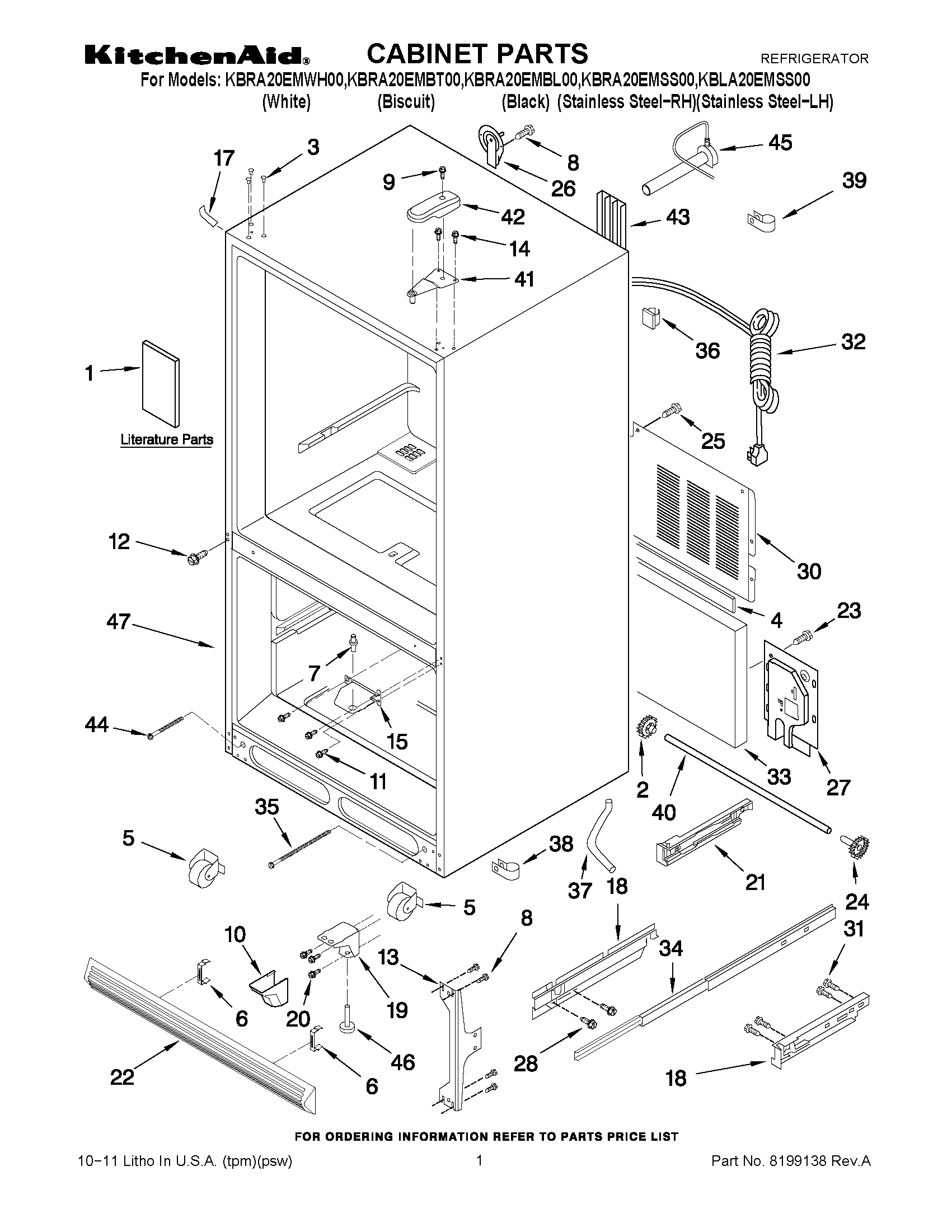

KBRA20EMBL00 01 – CABINET PARTS

KBRA20EMBL00 01 – CABINET PARTS

Written by

in

KBRA20EMBL00 01 – CABINET PARTS

Products

Position	Product
1	Tech Sheet
1	Guide, Energy
1	Owners Manual
2	12002497 Whirlpool Refrigerator Drawer Gear Kit
3	WP2189009 Whirlpool Refrigerator Handle Plug
3	WP2189000 Whirlpool Refrigerator Handle Plug
3	W10709784 Whirlpool Refrigerator Handle Plug
4	GASKET
5	Roller Assembly
6	Clip, Grille
7	12002311 Whirlpool Refrigerator Center Hinge Pin Kit
8	WP98165 Whirlpool Screw
9	Screw
10	Hinge Cover, Bottom (Black)
10	Hinge Cover, Bottom (Biscuit)
10	Hinge Cover, Bottom (White)
11	WP67006380 Whirlpool Screw
13	WPW10330993 Whirlpool Refrigerator Bracket
13	WPW10330991 Whirlpool Refrigerator Bracket
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607103WD Whirlpool Refrigerator Center Hinge
15	WP12607104ED Whirlpool Refrigerator Door Hinge
17	Cover, Corner (Biscuit)
17	67003484 Whirlpool Refrigerator White Corner Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	Bracket, Slide (2) (Left)
18	Bracket, Slide (2) (Right)
19	Hinge Bottom (Black)
19	Hinge Bottom (White)
20	WP67006715 Whirlpool Refrigerator Screw
21	W10251557 Whirlpool Refrigerator Bracket
22	Grille Assembly (Includes Clips) (Biscuit)
22	WP67002224 Whirlpool Refrigerator Grille Assembly
22	Grille Assembly (Includes Clips) (White)
23	681390 Whirlpool Refrigerator Screw
25	WPL 4344167
26	12726003 Whirlpool Refrigerator Water Cover
27	Cover, Water Valve
30	Cover, Unit
31	WP489474 Whirlpool Refrigerator Screw
32	WP67006506 Whirlpool Refrigerator Power Cord
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	Slide, Drawer (2)
35	Bolt, Adjusting (Rear)
36	Clip, Cord
37	Tube, Drain
38	67001067 Whirlpool Refrigerator Drain Tube Clip
39	Clamp, Tube
40	W11028221 Whirlpool Refrigerator Shaft
41	WP12566606ED Whirlpool Refrigerator Door Hinge
42	67001014 Whirlpool Refrigerator Top Hinge Cover White
42	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
42	Cover, Hinge (Biscuit)
43	WPL 8208152
44	71003131 Whirlpool Oven Screw
45	W11181718 Whirlpool Refrigerator Water Tube
46	W11177593 Whirlpool Leveling Feet
47	CABINET (NOT A SERVICEABLE PART)
