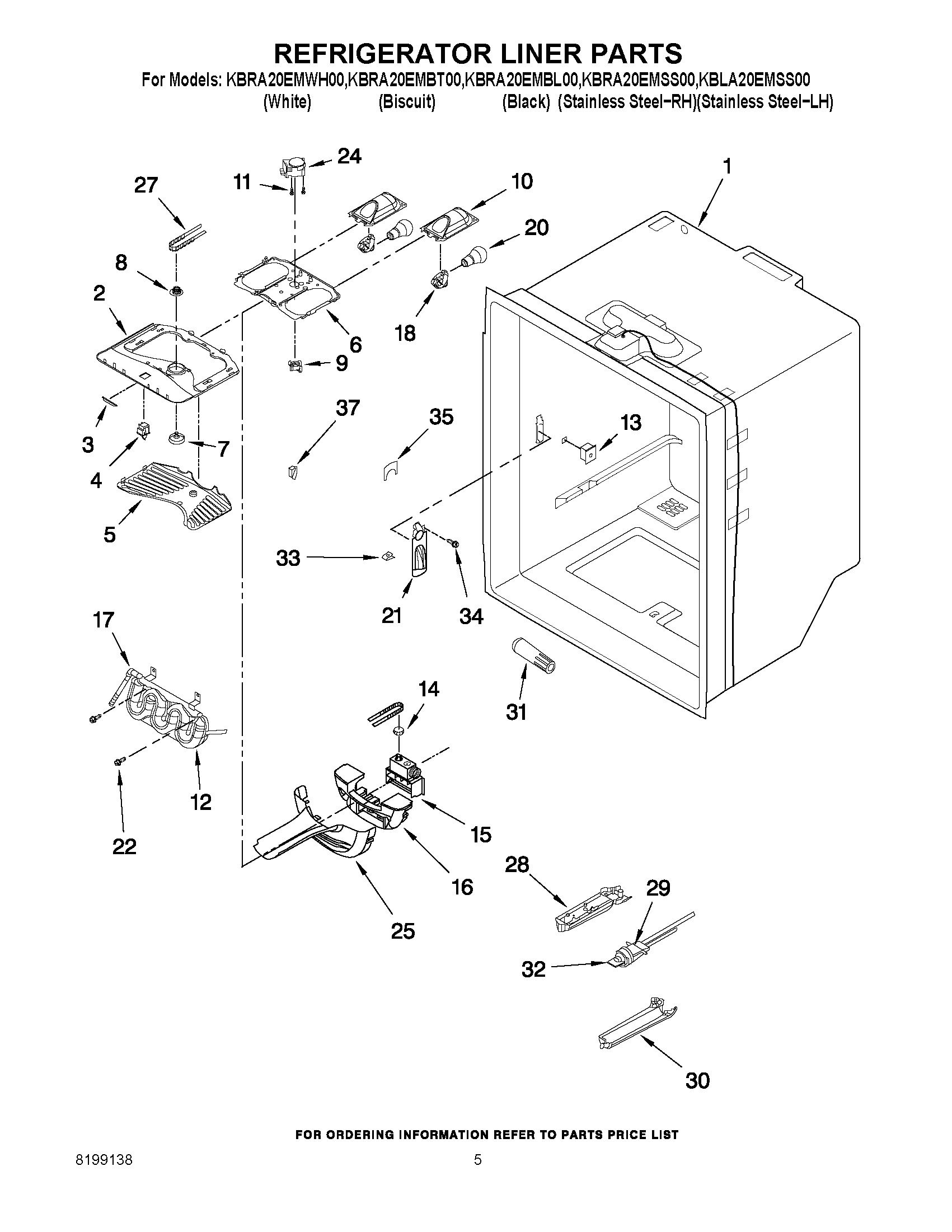

KBRA20EMBL00 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Housing, Ref. Light
3OVERLAY
4W11384469 Whirlpool Door Switch
5Cover, Ref. Light
6WP67002085 Whirlpool Refrigerator Housing
7Knob, Damper
867001033 Whirlpool Refrigerator Knob Gear
967001034 Whirlpool Refrigerator Tensioner Belt
10Housing, Light
11Screw (2)
12Tank, Water
13Grommet, Screw
14Gear, Damper
15Control, Damper
16Insulation, Damper
17WP2300868 Whirlpool Refrigerator Fitting
18W11447232 Whirlpool Refrigerator Socket
20W11679940 Whirlpool Refrigerator Light Bulb Assembly
21Dispenser
22WP98165 Whirlpool Screw
24WP67001036 Whirlpool Refrigerator Defrost Timer
25Cover, Control
27Belt, Damper
28PLATE-FIL
29WP67004106 Whirlpool Water Filter Housing
30WP12568001 Whirlpool Filter Cover
31everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
32Head, Filter Bypass
3367002816 Whirlpool Refrigerator Waterline Clip
3467006425 Whirlpool Refrigerator Screw
35W11519867 Whirlpool Refrigerator Cover
37WP12575501 Whirlpool Refrigerator Micro Switch
