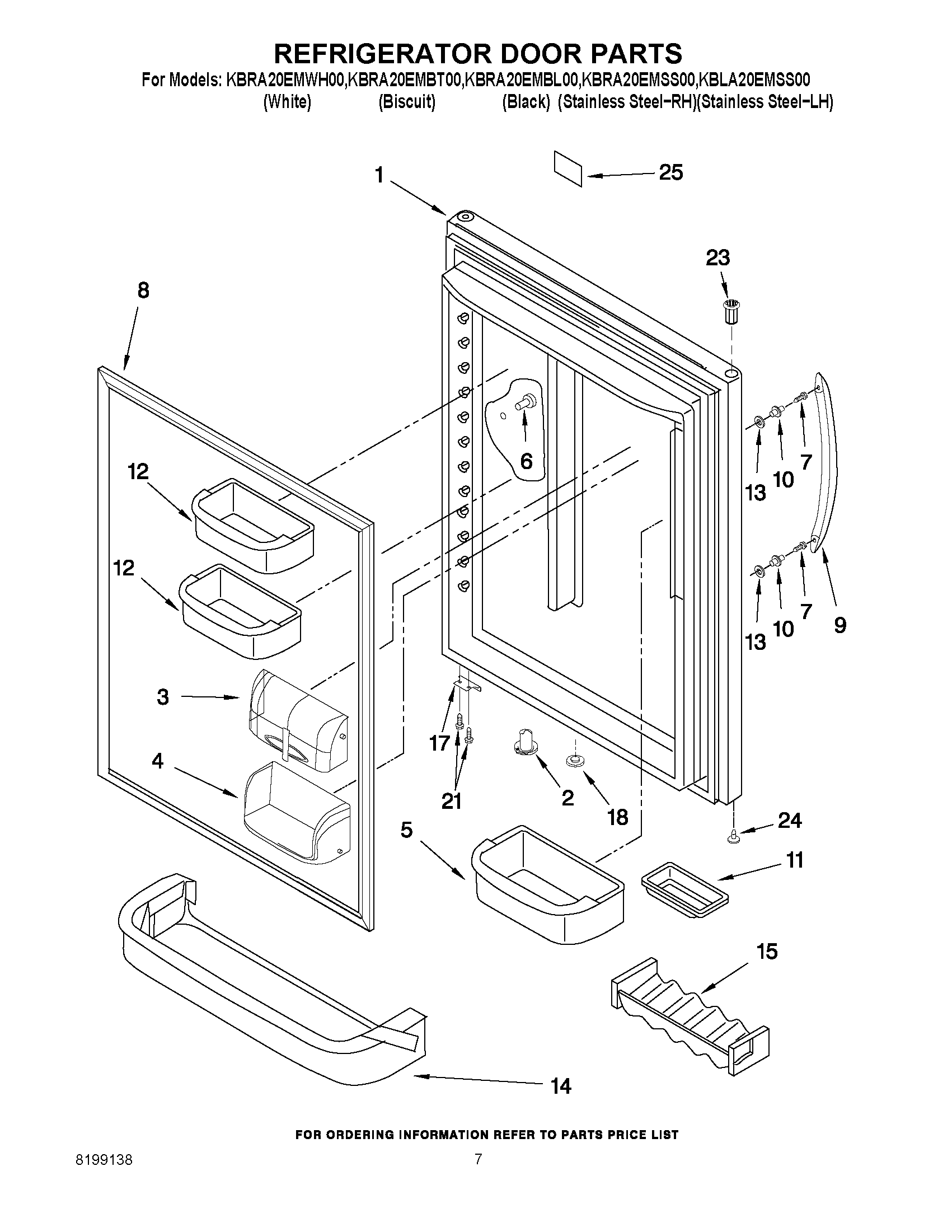

KBRA20EMBL00 04 – REFRIGERATOR DOOR PARTS

KBRA20EMBL00 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBRA20EMBL00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Insulation) (Stainless- RH-Mdl)
1Refrigerator Door (Includes Insulation) (Black)
1Refrigerator Door (Includes Insulation) (White)
112658537SQ Whirlpool Refrigerator DOR-FIP SS
112658535CQ Whirlpool Refrigerator DOR-FIP BT
2WP67003638 Whirlpool Closing Cam
2WP67003639 Whirlpool Refrigerator Closer
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5Shelf Bin (Medium)
6WP12246608 Whirlpool Refrigerator Button
6WP67001130 Whirlpool Refrigerator White Button Plug
6W10709784 Whirlpool Refrigerator Handle Plug
7WP3387230 Whirlpool Screw
8W10443317 Whirlpool Refrigerator FIP Gasket
8W10849442 Whirlpool Refrigerator FIP Gasket
9Door Handle (Stainless)
9Door Handle (Black)
9Door Handle (Biscuit)
9Door Handle (White)
10Stud, Handle
11WPL 4344296
12Shelf Bin (2) (Large)
13Washer
14Door Shelf
15WP67005626 Whirlpool Refrigerator Can Caddy
1767003781 Whirlpool Refrigerator Door Stop (BSQ)
1712968202W Whirlpool Refrigerator Door Stop
17W11708403 Whirlpool Door Stop
18Plug, Button (White)
18Plug, Button
21WPW10348409 Whirlpool Screw
2367004978 Whirlpool Refrigerator Black Door Bushing
23WPL 4344362
2467004838 Whirlpool Refrigerator Button Vent Plug
2410712401 Whirlpool Refrigerator Vent Plug (White)
25Nameplate (White)
25Nameplate (Bisquit)
25Nameplate (Black)
