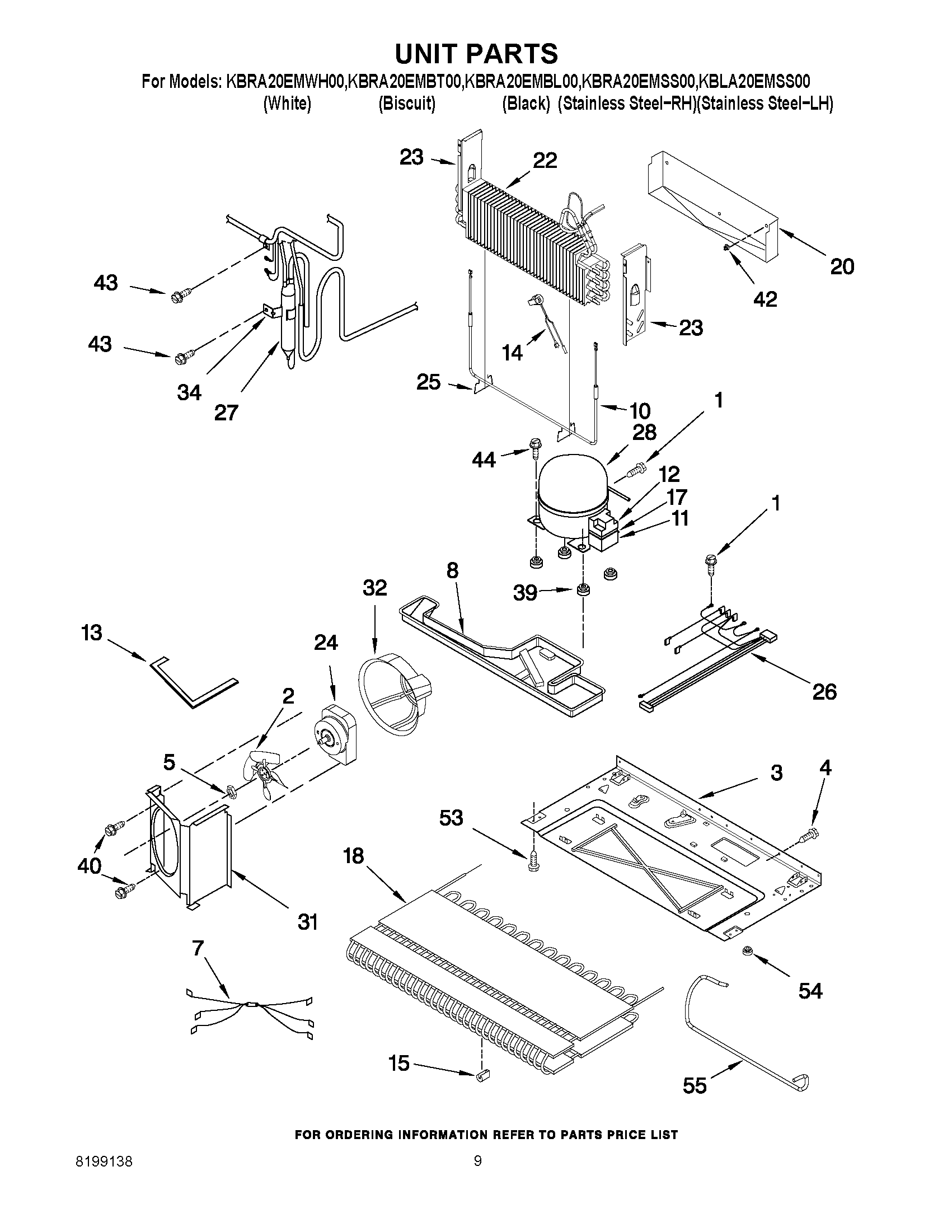

KBRA20EMBL00 05 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
1	12992301 Whirlpool Refrigerator Screw
2	WP12587601 Whirlpool Refrigerator Condenser Blade
3	Base
4	WPL 4344167
5	WP486692 Whirlpool Refrigerator Nut
7	Harness, Evap. Heater
8	Drain Pan
10	WP67002493 Whirlpool Refrigerator Defrost Heater
11	Clip
12	W10848274 Whirlpool Refrigerator Start Device
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	12001937 Whirlpool Refrigerator 42-Degree Defrost Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
17	WP65889-4 Whirlpool Refrigerator Capacitor
18	WP67006131 Whirlpool Refrigerator Condenser
20	Tray, Drip
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	Dam (Left Side)
23	Dam (Right Side)
24	Motor, Fan
25	W11673433 Whirlpool Clip
26	Harness, Unit
27	W10843121 Whirlpool Refrigerator Tube
28	W10309989 Whirlpool Refrigerator Compressor
31	SHROUD
32	Bracket, Fan Motor
34	Clip, Drier
39	WPL 4343845
40	Screw
42	Clip, Evap Motor
43	W10709801 Whirlpool Refrigerator Screw
44	WPL 4343847
53	WPL 4344292
54	A3076901 Whirlpool Refrigerator Plug
55	WP12866903 Whirlpool Refrigerator Discharge Tube
