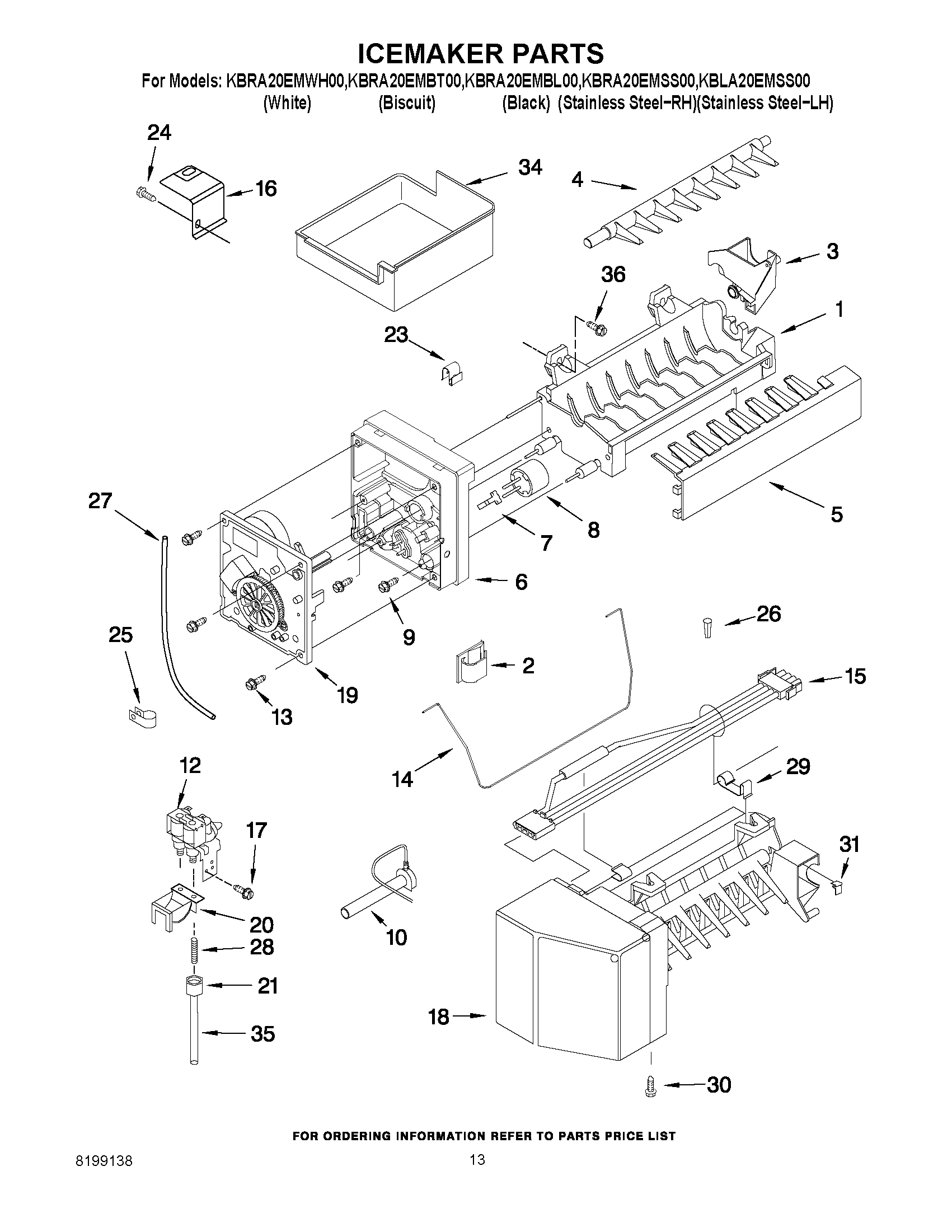

KBRA20EMBL00 07 – ICEMAKER PARTS

Products

Position	Product
NI	Retainer, Tube
NI	W11677725 Whirlpool Refrigerator Guide
NI	WPL 4344316
NI	WPL 4344549
NI	681390 Whirlpool Refrigerator Screw
NI	W11033771 Whirlpool Refrigerator Coupling
NI	Screw, Bracket
NI	WP488878 Whirlpool Refrigerator Tube Clamp
1	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
2	WPM0104106 Whirlpool Refrigerator Clip
3	WP628356 Whirlpool Refrigerator Fill Cup
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	WP627985 Whirlpool Icemaker Cycling Thermostat
9	WP681249 Whirlpool Screw Assembly
10	W11176463 Whirlpool Refrigerator Water Tube
12	WP67005154 Whirlpool Water Valve
13	WPL 4344397
14	ARM-SHUT
15	WPD7813010 Whirlpool Refrigerator Wire Harness
16	WP2256087 Whirlpool Refrigerator Bracket
17	WPL 4344167
18	WPW10289690 Whirlpool Ice Maker Cover
19	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
20	12831101 Whirlpool Refrigerator Tube Clamp
21	Nut, Sleeve
23	WP628379 Whirlpool Refrigerator Clip
24	67006425 Whirlpool Refrigerator Screw
25	W10833902 Whirlpool Refrigerator Clamp
26	WPA3223101 Whirlpool Refrigerator Insert PL
28	Spring
29	WPL 4343984
30	WP98165 Whirlpool Screw
31	WPM0114003 Whirlpool Microwave Speed Clip Clamp
34	WP67001255 Whirlpool Ice Bucket
35	W10823511 Whirlpool Refrigerator Water Tube
36	W10709801 Whirlpool Refrigerator Screw
100	4396418 Whirlpool Ice Maker
