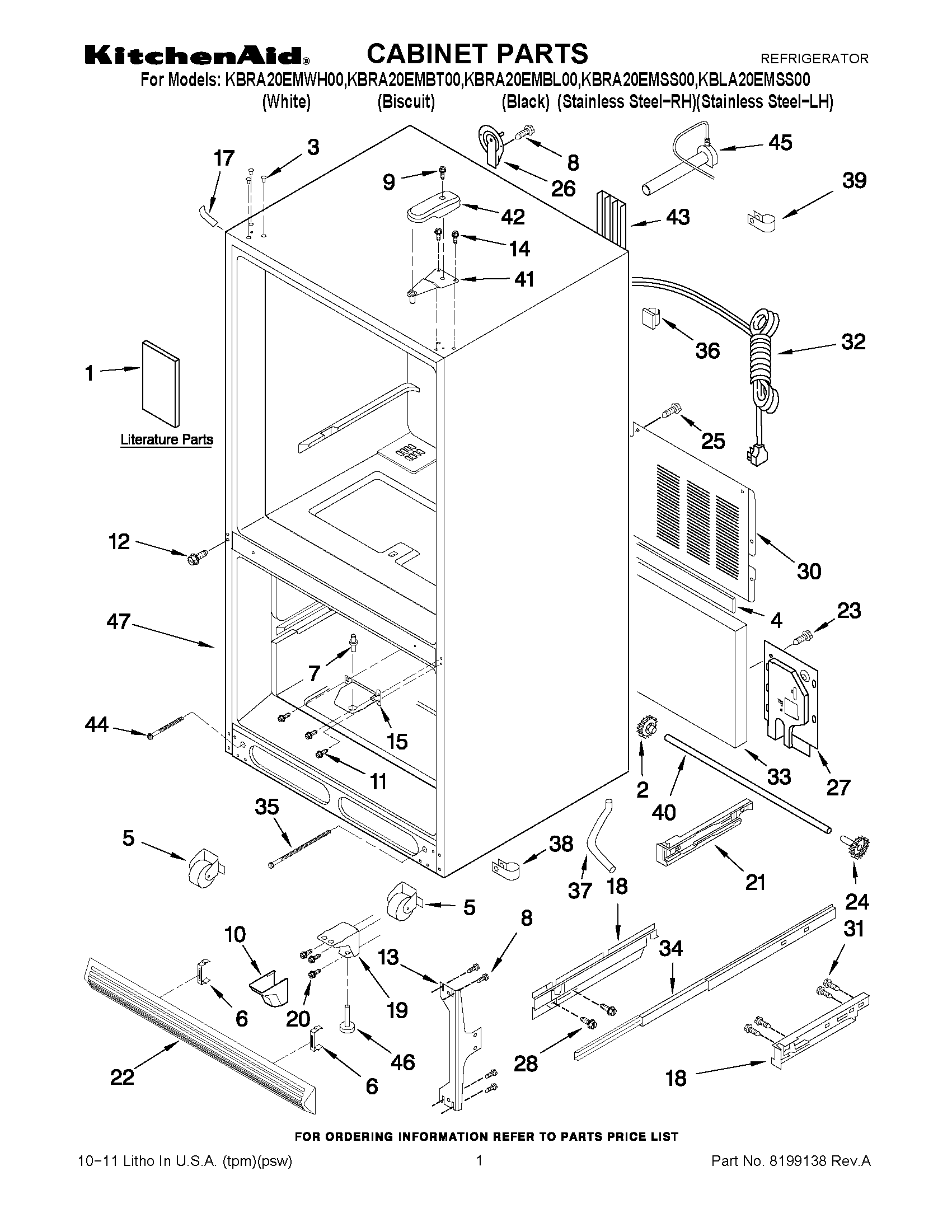

KBRA20EMSS00 01 – CABINET PARTSadmin2025-04-26T09:34:57+00:00KBRA20EMSS00 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | Tech Sheet |
| 1 | Guide, Energy |
| 1 | Owners Manual |
| 2 | 12002497 Whirlpool Refrigerator Drawer Gear Kit |
| 3 | WP2189009 Whirlpool Refrigerator Handle Plug |
| 3 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 3 | W10709784 Whirlpool Refrigerator Handle Plug |
| 4 | GASKET |
| 5 | Roller Assembly |
| 6 | Clip, Grille |
| 7 | 12002311 Whirlpool Refrigerator Center Hinge Pin Kit |
| 8 | WP98165 Whirlpool Screw |
| 9 | Screw |
| 10 | Hinge Cover, Bottom (Black) |
| 10 | Hinge Cover, Bottom (Biscuit) |
| 10 | Hinge Cover, Bottom (White) |
| 11 | WP67006380 Whirlpool Screw |
| 13 | WPW10330993 Whirlpool Refrigerator Bracket |
| 13 | WPW10330991 Whirlpool Refrigerator Bracket |
| 14 | WP489349 Whirlpool Refrigerator Screw |
| 15 | WP12607103WD Whirlpool Refrigerator Center Hinge |
| 15 | WP12607104ED Whirlpool Refrigerator Door Hinge |
| 17 | Cover, Corner (Biscuit) |
| 17 | 67003484 Whirlpool Refrigerator White Corner Cover |
| 17 | 67003485 Whirlpool Refrigerator Corner Cover (Black) |
| 18 | Bracket, Slide (2) (Left) |
| 18 | Bracket, Slide (2) (Right) |
| 19 | Hinge Bottom (Black) |
| 19 | Hinge Bottom (White) |
| 20 | WP67006715 Whirlpool Refrigerator Screw |
| 21 | W10251557 Whirlpool Refrigerator Bracket |
| 22 | Grille Assembly (Includes Clips) (Biscuit) |
| 22 | WP67002224 Whirlpool Refrigerator Grille Assembly |
| 22 | Grille Assembly (Includes Clips) (White) |
| 23 | 681390 Whirlpool Refrigerator Screw |
| 25 | WPL 4344167 |
| 26 | 12726003 Whirlpool Refrigerator Water Cover |
| 27 | Cover, Water Valve |
| 30 | Cover, Unit |
| 31 | WP489474 Whirlpool Refrigerator Screw |
| 32 | WP67006506 Whirlpool Refrigerator Power Cord |
| 33 | 67003796 Whirlpool Refrigerator Fiber Acoustic |
| 34 | Slide, Drawer (2) |
| 35 | Bolt, Adjusting (Rear) |
| 36 | Clip, Cord |
| 37 | Tube, Drain |
| 38 | 67001067 Whirlpool Refrigerator Drain Tube Clip |
| 39 | Clamp, Tube |
| 40 | W11028221 Whirlpool Refrigerator Shaft |
| 41 | WP12566606ED Whirlpool Refrigerator Door Hinge |
| 42 | 67001014 Whirlpool Refrigerator Top Hinge Cover White |
| 42 | 67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK) |
| 42 | Cover, Hinge (Biscuit) |
| 43 | WPL 8208152 |
| 44 | 71003131 Whirlpool Oven Screw |
| 45 | W11181718 Whirlpool Refrigerator Water Tube |
| 46 | W11177593 Whirlpool Leveling Feet |
| 47 | CABINET (NOT A SERVICEABLE PART) |
