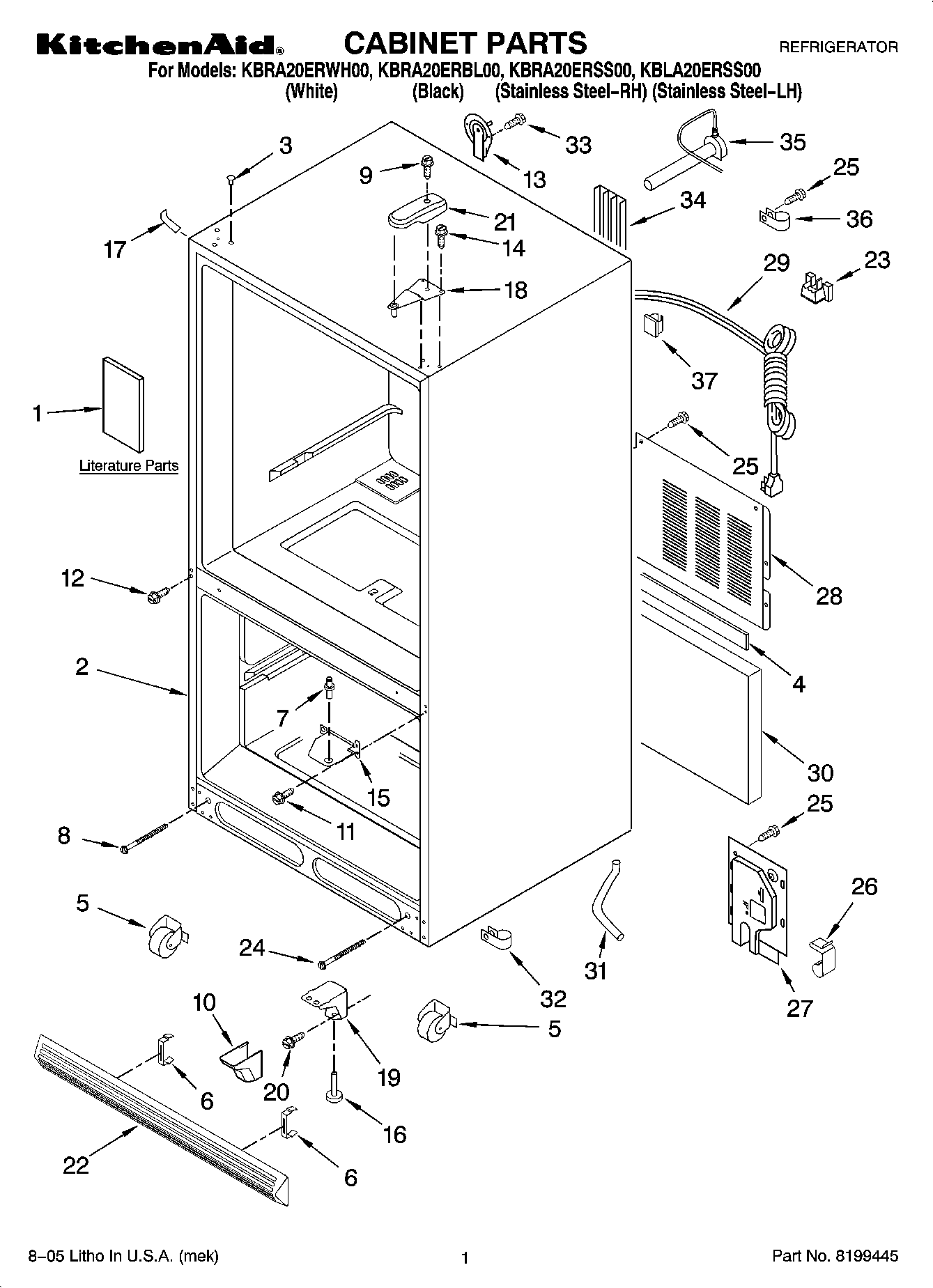

KBRA20ERBL00 01 – CABINET PARTS

Products

Position	Product
1	Energy Tag
1	Use & Care Guide
1	Tech Sheet
2	Cabinet (Not A Servicable Part)
3	WP2189000 Whirlpool Refrigerator Handle Plug
3	WP2189009 Whirlpool Refrigerator Handle Plug
4	GASKET
5	Roller Assembly
6	Clip, Grille
7	12002311 Whirlpool Refrigerator Center Hinge Pin Kit
8	Bolt, Adjusting (Rear)
9	WP8281196 Whirlpool Screw
10	Hinge Cover, Bottom (Black)
10	Hinge Cover, Bottom (White)
11	WP67006380 Whirlpool Screw
13	12726003 Whirlpool Refrigerator Water Cover
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	W11177593 Whirlpool Leveling Feet
17	67003484 Whirlpool Refrigerator White Corner Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	WP12566606ED Whirlpool Refrigerator Door Hinge
19	Hinge Bottom (Black)
19	Hinge Bottom (White)
20	Screw
21	67001014 Whirlpool Refrigerator Top Hinge Cover White
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
22	WP67002224 Whirlpool Refrigerator Grille Assembly
22	Grille Assembly (Includes Clips) (White)
23	WP12777701 Whirlpool Refrigerator Filler Block
24	71003131 Whirlpool Oven Screw
25	WPL 4344167
26	Clip, Water Line
27	Cover, Water Valve
28	Cover, Unit
29	WP67006506 Whirlpool Refrigerator Power Cord
30	67003796 Whirlpool Refrigerator Fiber Acoustic
31	Tube, Drain
32	67001067 Whirlpool Refrigerator Drain Tube Clip
33	WP98165 Whirlpool Screw
34	WPL 8208152
35	W11176463 Whirlpool Refrigerator Water Tube
36	W10833902 Whirlpool Refrigerator Clamp
37	WPM0104106 Whirlpool Refrigerator Clip
