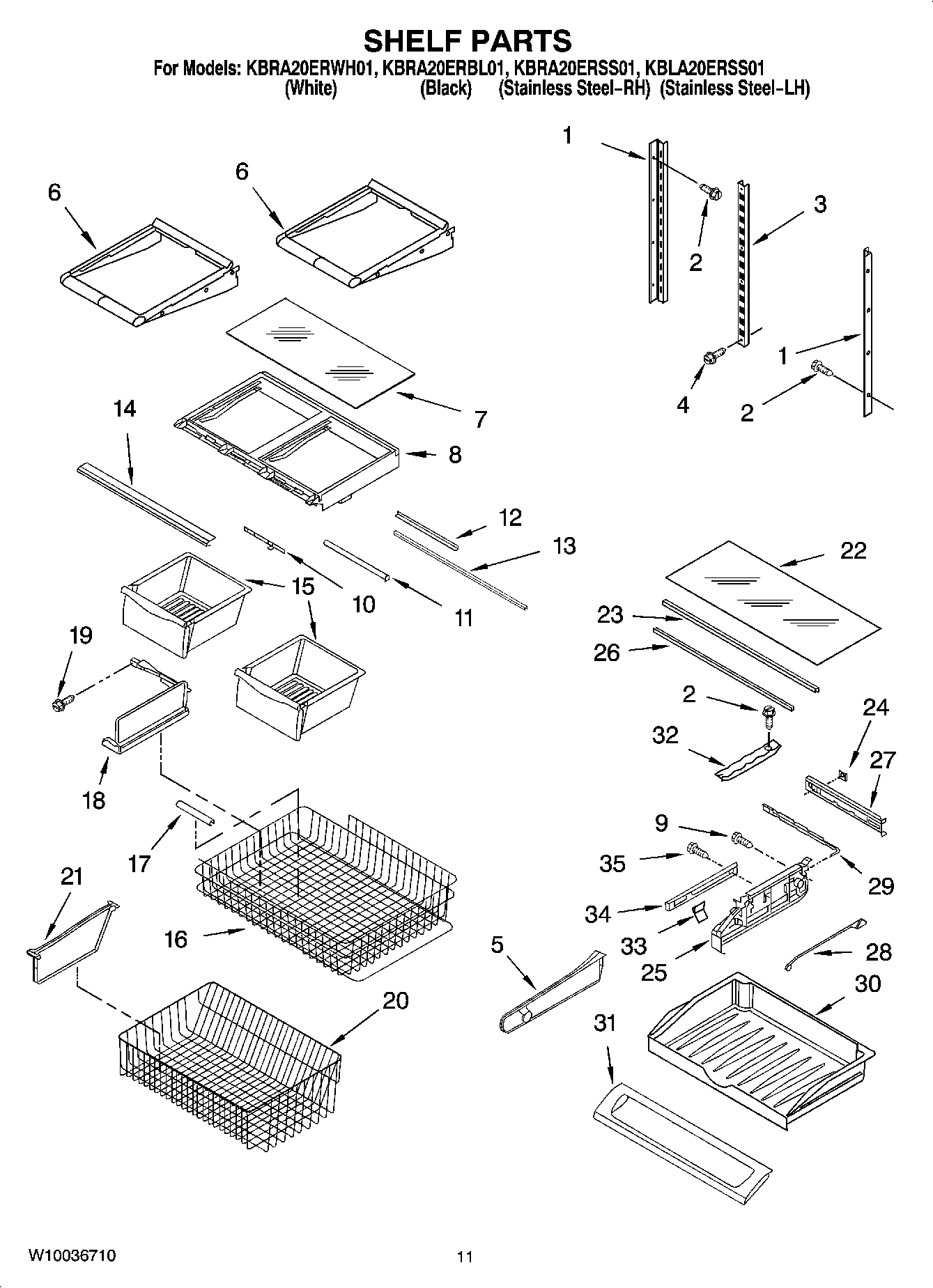

KBRA20ERBL01 07 – SHELF PARTS

Products

Position	Product
1	Ladder, Side
2	67006425 Whirlpool Refrigerator Screw
3	Ladder, Center
4	Screw
5	WP67002321 Whirlpool Refrigerator Divider Panel
6	Shelf, Glide (4)
7	WP67006655 Whirlpool Refrigerator Crisper Glass Shelf
8	WP67006185 Whirlpool Refrigerator Crisper Frame
9	WPL 4344523
10	SLIDE
11	WP67003417 Whirlpool Refrigerator Front Seal
12	WP67002513 Whirlpool Refrigerator Rear Crisper Seal
13	WP12227304WD Whirlpool Refrigerator Drawer Support
14	Trim, Crisper
15	WP67002659 Whirlpool Crisper Pan
17	Handle, Basket
18	Divider, Upper Basket
19	Screw
20	W10503185 Whirlpool Dishwasher Cutlery Basket
21	Divider, Lower Basket
22	WP67002332 Whirlpool Refrigerator Glass Pan
23	WP67006010 Whirlpool Refrigerator Shelf Trim
24	67002329 Whirlpool Refrigerator Pantry Gasket
25	WP12656105 Whirlpool Drawer Support
25	WP12656018 Whirlpool Drawer Support
26	WP12227305WD Whirlpool Drawer Support
27	12656202 Whirlpool Refrigerator Housing
28	67003794 Whirlpool Refrigerator Temperature Control Bar
29	WP67003793 Whirlpool Refrigerator Temperature Slide
30	W11490183 Whirlpool Refrigerator Utility Pan
31	WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
32	WP67001719 Whirlpool Refrigerator Track
33	W11498983 Whirlpool Refrigerator Knob
34	WPW10235370 Whirlpool Refrigerator Glide
35	WP98165 Whirlpool Screw
