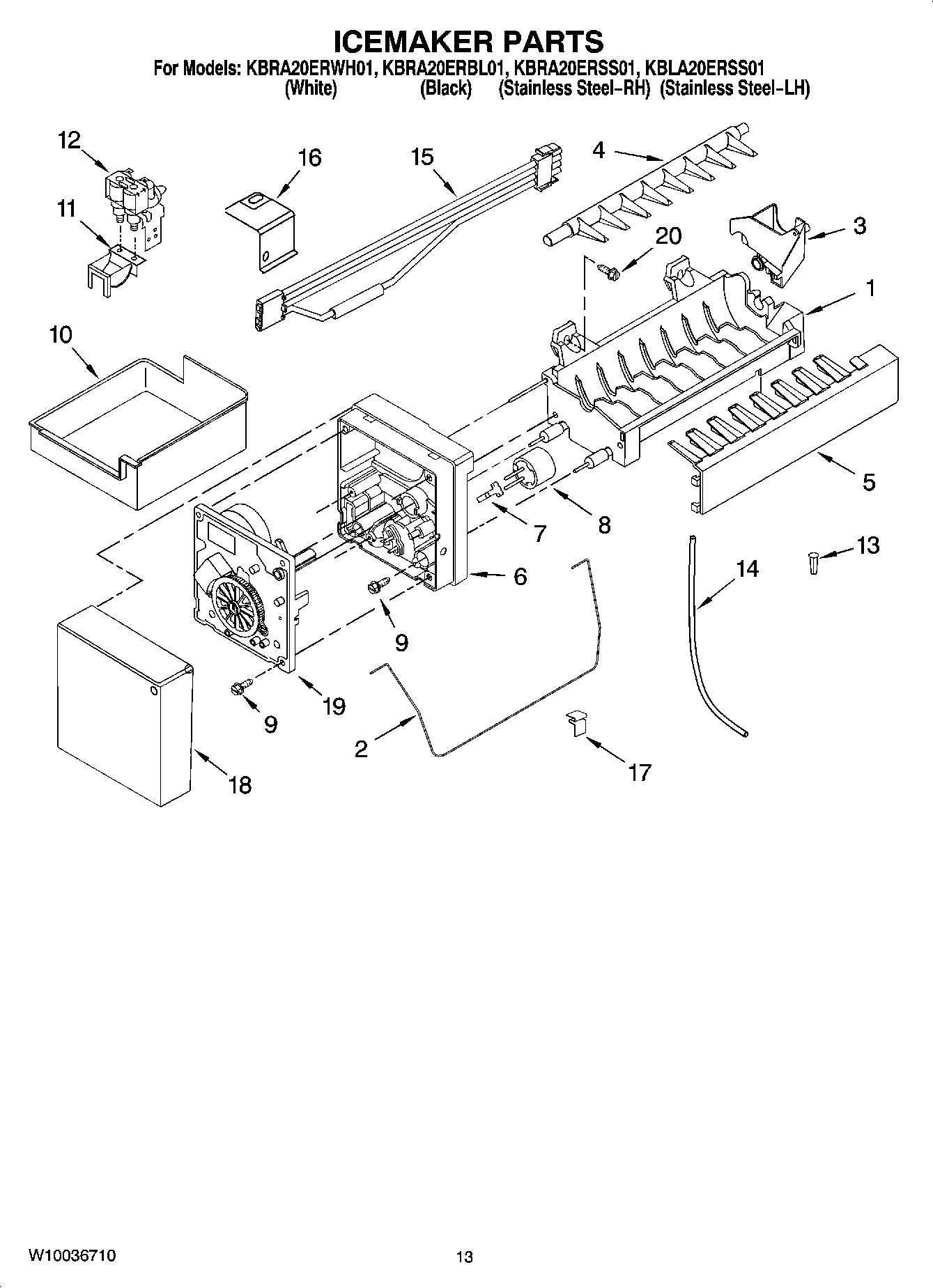

KBRA20ERBL01 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

KBRA20ERBL01 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KBRA20ERBL01 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP542638 Whirlpool Refrigerator Grease
Torx Key
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL ARI153633A
Miscellaneous
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
CLEANER, (STAINLESS STEEL)
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
TORX SCR
833938 Whirlpool Refrigerator Terminal
212643 Whirlpool Refrigerator Permagum Sealer
1Mold & Heater Assembly (Not Available — Order 8170937)
2ARM-SHUT
3WP628356 Whirlpool Refrigerator Fill Cup
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8Thermostat (Not Available — Order 8170937)
9WP681249 Whirlpool Screw Assembly
10WP67001255 Whirlpool Ice Bucket
1112831101 Whirlpool Refrigerator Tube Clamp
12WP67005154 Whirlpool Water Valve
13WPA3223101 Whirlpool Refrigerator Insert PL
14W10823511 Whirlpool Refrigerator Water Tube
15WPD7813010 Whirlpool Refrigerator Wire Harness
16WP2256087 Whirlpool Refrigerator Bracket
17WPM0114003 Whirlpool Microwave Speed Clip Clamp
18WPW10289690 Whirlpool Ice Maker Cover
19Module Assembly (Not Available — Order 8170937)
20WP98165 Whirlpool Screw
100W11033771 Whirlpool Refrigerator Coupling
100Retainer, Tube
100Screw, Bracket
100D7824706Q Whirlpool Refrigerator Ice Maker Assembly
100681390 Whirlpool Refrigerator Screw
100Following Parts Not Illustrated
