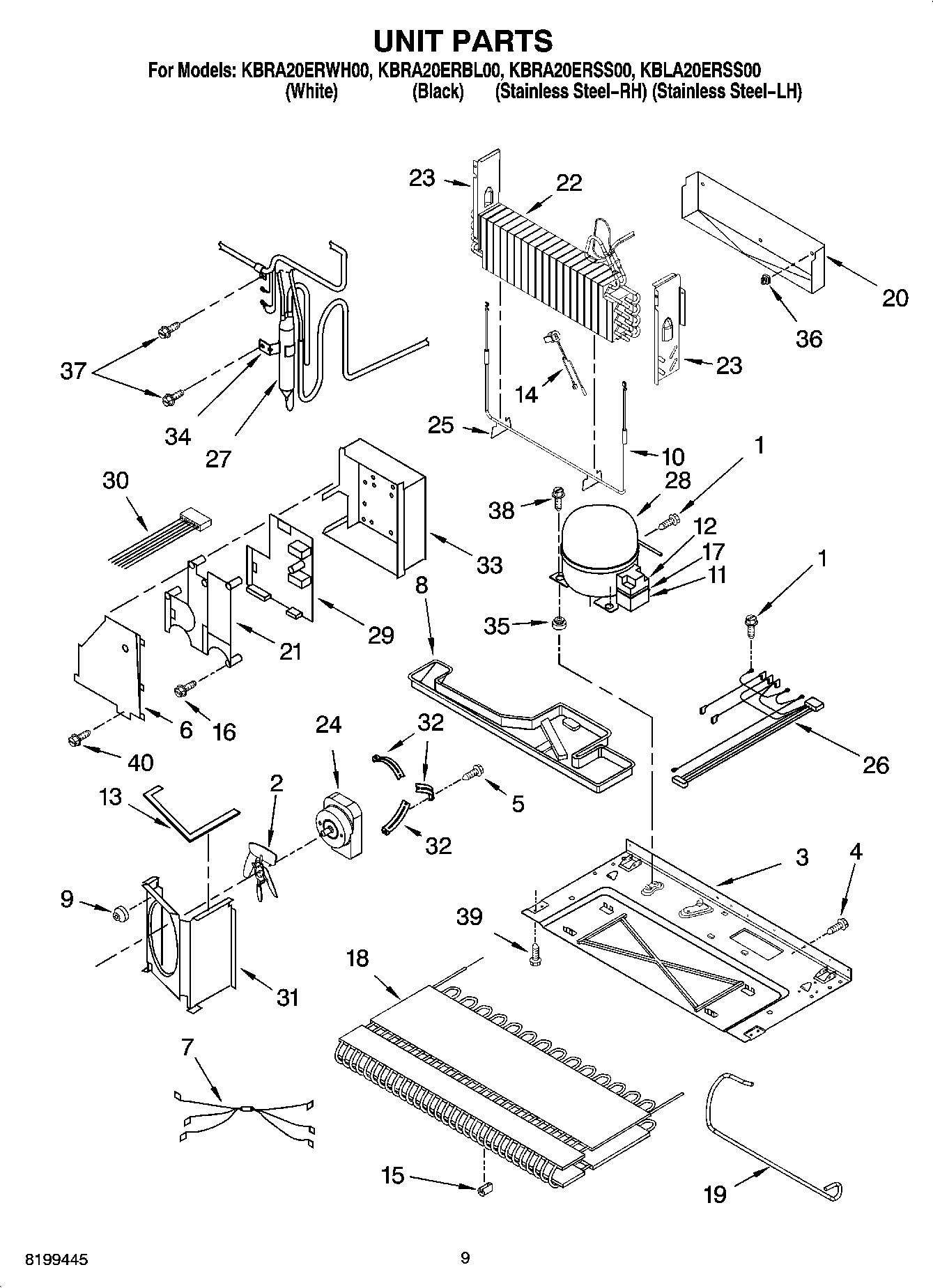

KBRA20ERSS00 06 – UNIT PARTS

Products

Position	Product
1	12992301 Whirlpool Refrigerator Screw
2	W10156818 Whirlpool Refrigerator Fan Blade
3	Base
4	WPL 4344167
5	WP67004954 Whirlpool Refrigerator Screw
6	67005421 Whirlpool Hoist Cover
7	Harness, Evap Heater
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	Grommet (3)
10	WP67002493 Whirlpool Refrigerator Defrost Heater
12	W10613606 Whirlpool Refrigerator Start Device Relay Overload
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	WP67003426 Whirlpool Refrigerator Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	Screw
17	Clip
18	WP67006131 Whirlpool Refrigerator Condenser
19	WP12866903 Whirlpool Refrigerator Discharge Tube
20	Tray, Drip
21	Spacer
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	Dam (Right Side)
23	Dam (Left Side)
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	Harness, Unit
27	W10843121 Whirlpool Refrigerator Tube
28	W10309989 Whirlpool Refrigerator Compressor
29	Control Board
30	67005419 Whirlpool Refrigerator HV Board Harness
31	SHROUD
32	WP67004953 Whirlpool Refrigerator Bracket
33	Box, Control
34	Clip, Drier
35	WPL 4343845
36	Clip, Evap Motor
37	W10709801 Whirlpool Refrigerator Screw
38	12846902 Whirlpool Refrigerator Screw
39	WPL 4344292
40	REFRIGERANT CHARGE 5.00 Ozs. (R-134A)
40	Following Parts Not Illustrated and Optional Parts Not Included
40	876764 Whirlpool Refrigerator Primary Valve
40	978026 Whirlpool Refrigerator Primary Valve
40	Screw
40	978030 Whirlpool Refrigerator Valve
40	VALVE, ACCESS (5/8“)
40	WP978025 Whirlpool Refrigerator Valve
40	VALVE, ACCESS (1/2“)
40	978027 Whirlpool Refrigerator Primary Valve
