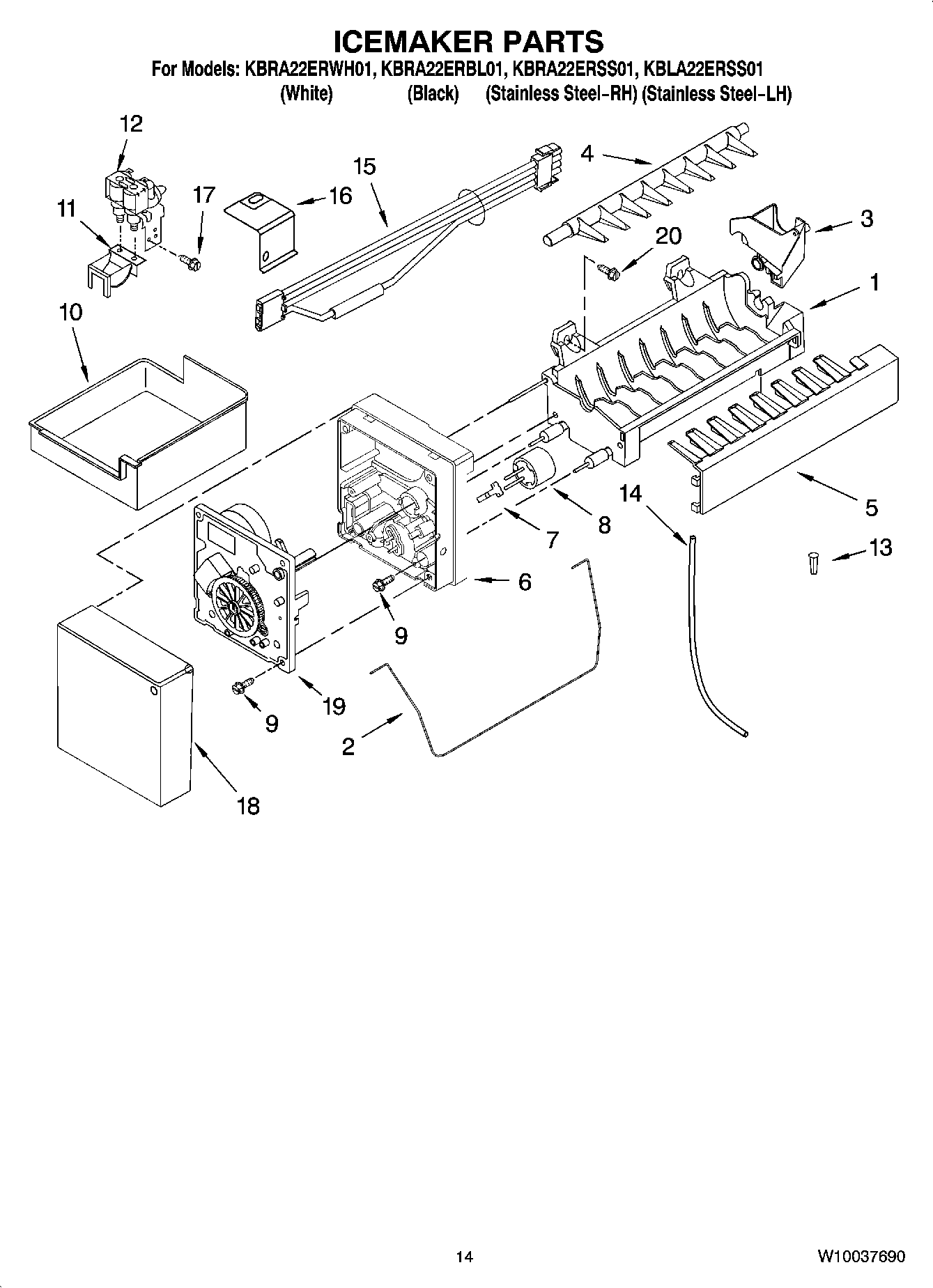

KBRA22ERBL01 08 – ICEMAKER PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WP503695 Whirlpool Refrigerator Sealer
	WP505587 Whirlpool Refrigerator Sealer
	WP542638 Whirlpool Refrigerator Grease
	Torx Key
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	833938 Whirlpool Refrigerator Terminal
	72032 Whirlpool Touch Up Paint Black
	212643 Whirlpool Refrigerator Permagum Sealer
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	ACCESSORIES
	350942 Whirlpool Spray Paint
	TORX SCREW WRENCH
	CLEANER, (STAINLESS STEEL)
	Miscellaneous
	285006 Whirlpool Spray
1	Mold & Heater Assembly (Not Available — Order 8170937)
2	ARM-SHUT
3	WP628356 Whirlpool Refrigerator Fill Cup
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	Thermostat (Not Available — Order 8170937)
9	WP681249 Whirlpool Screw Assembly
10	WP67001255 Whirlpool Ice Bucket
11	12831101 Whirlpool Refrigerator Tube Clamp
12	WP67005154 Whirlpool Water Valve
13	WPA3223101 Whirlpool Refrigerator Insert PL
14	W10823511 Whirlpool Refrigerator Water Tube
15	WPD7813010 Whirlpool Refrigerator Wire Harness
16	WP2256087 Whirlpool Refrigerator Bracket
17	681390 Whirlpool Refrigerator Screw
18	WPW10289690 Whirlpool Ice Maker Cover
19	Module Assembly (Not Available — Order 8170937)
20	WP98165 Whirlpool Screw
100	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
