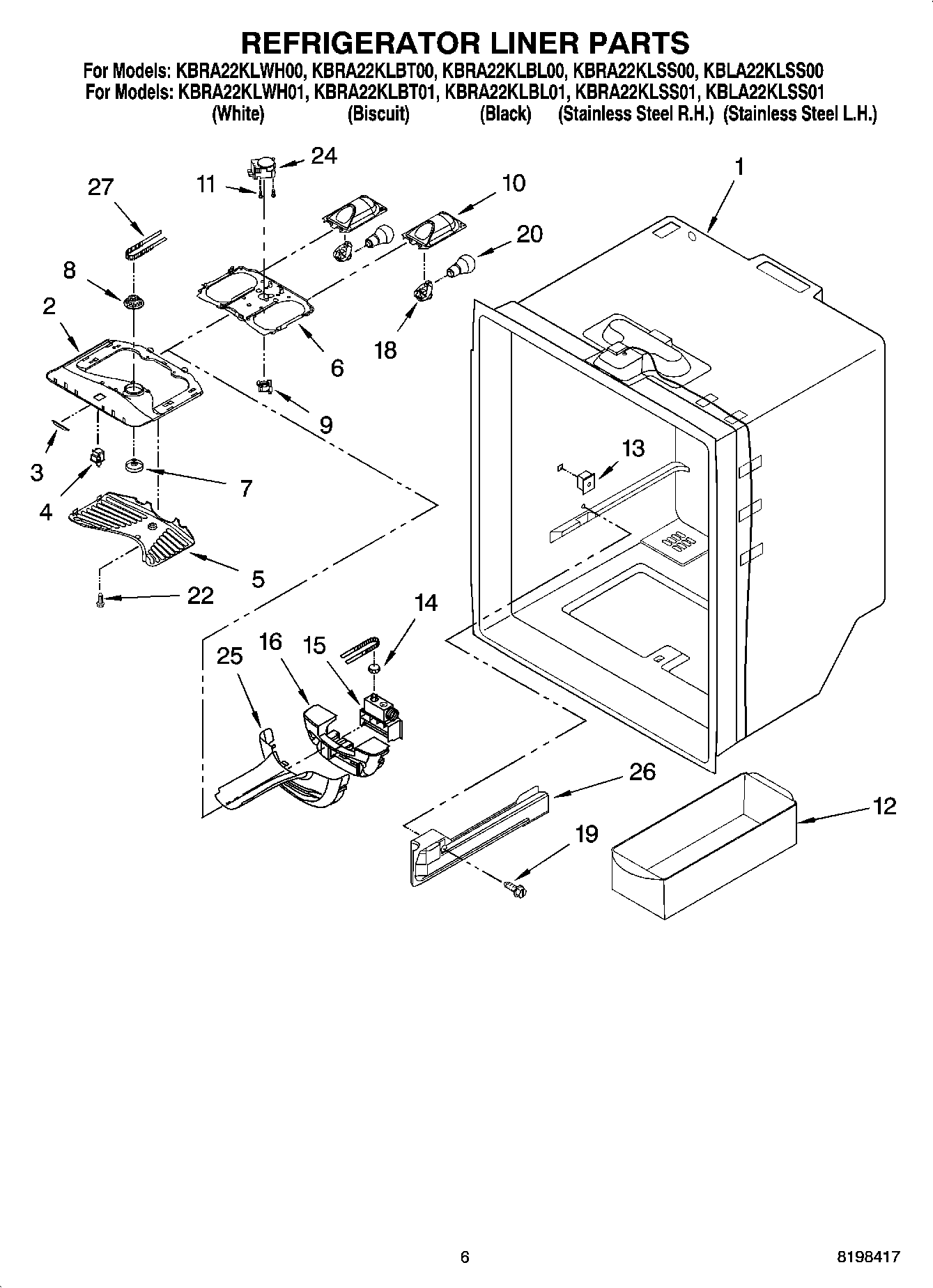

KBRA22KLBL00 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Housing, Ref. Light
3OVERLAY
4W11384469 Whirlpool Door Switch
5Cover, Ref. Light
6WP67002085 Whirlpool Refrigerator Housing
7Knob, Damper
867001033 Whirlpool Refrigerator Knob Gear
967001034 Whirlpool Refrigerator Tensioner Belt
10Housing, Light
11Screw (2)
12W10136387A Whirlpool Refrigerator Egg Container
13Grommet, Screw
14Gear, Damper
15Control, Damper
16Insulation, Damper
18W11447232 Whirlpool Refrigerator Socket
19WPL 4344167
20W11679940 Whirlpool Refrigerator Light Bulb Assembly
22WP98165 Whirlpool Screw
24WP67001036 Whirlpool Refrigerator Defrost Timer
25Cover, Control
26Support, Crisper (Left Side)
26Support, Crisper (Right Side)
27Belt, Damper
