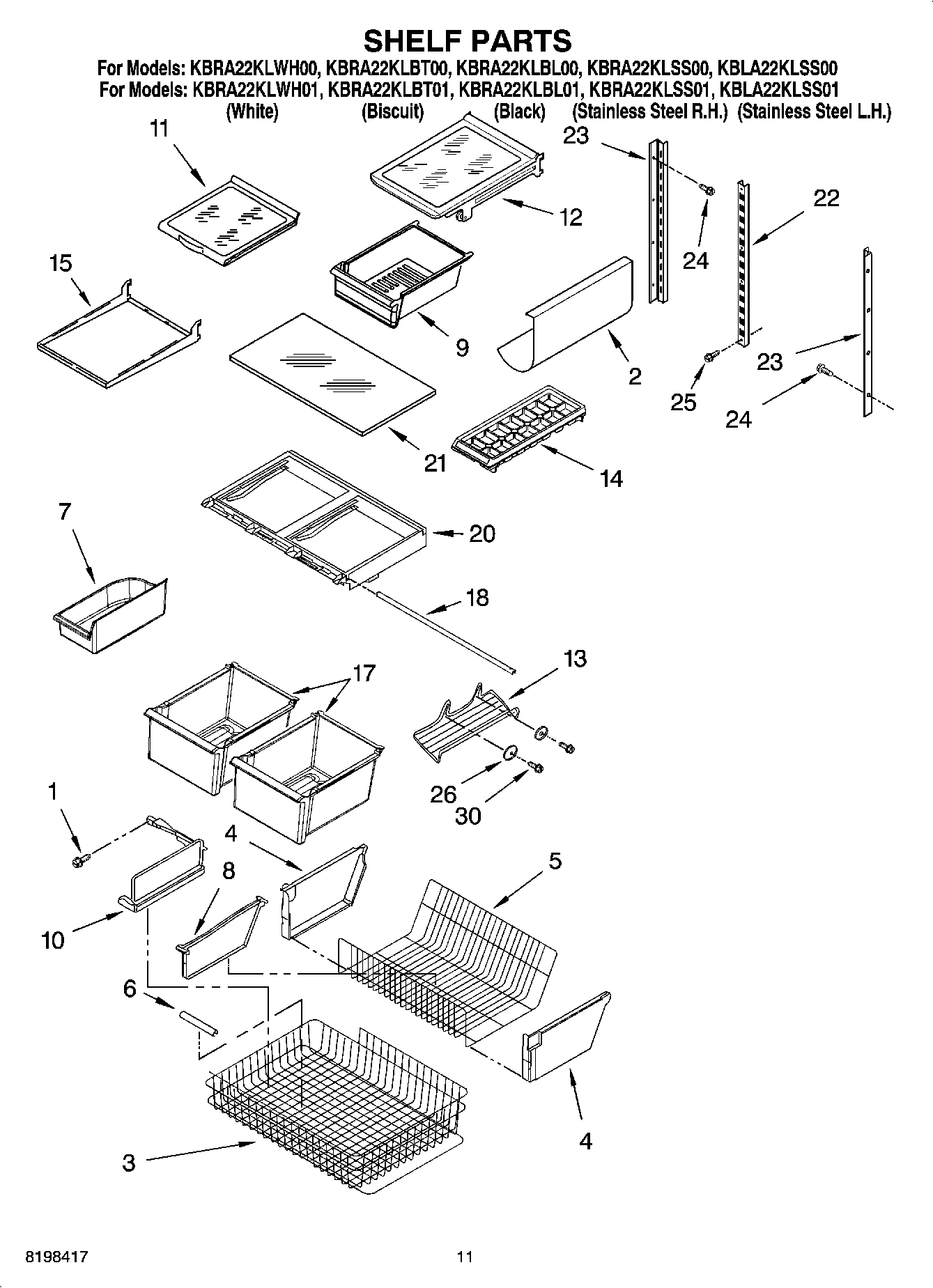

KBRA22KLBL00 07 – SHELF PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI79411A3
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	WPL 876029
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	4396418 Whirlpool Ice Maker
	Ice Container Assembly
	WPL ARI79412A5
	WPL ARI79407A3
	WPL ARI79408A4
	WPL ARI79409A8
	WPL ARI79410A9
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	212643 Whirlpool Refrigerator Permagum Sealer
	Almond (Uncut)
	WP505587 Whirlpool Refrigerator Sealer
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350942 Whirlpool Spray Paint
	511873 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	WP503695 Whirlpool Refrigerator Sealer
	350930 Whirlpool White Spray Paint
1	Screw
2	Rack, Wine
3	Basket, Lower
4	Endcap, Basket (Left Side)
4	Endcap, Basket (Right Side)
5	Basket, Freezer (Upper)
6	Handle, Basket
7	WP67001255 Whirlpool Ice Bucket
8	Divider, Basket (Lower)
9	Meat Pan
10	Divider, Upper Basket
11	Shelf, S/G (3)
12	Shelf Assy (Meat Pan)
13	Rack, Ice Tray
14	WP841180A Whirlpool Microwave Glass Turntable Tray
15	Frame & Roller Assembly (3)
17	Crisper (2)
18	WP2172748 Whirlpool Drawer Support
20	WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
21	Glass, Crisper Cover
22	Ladder, Center
23	Ladder, Side
24	67006425 Whirlpool Refrigerator Screw
25	Screw
26	WP10972101 Whirlpool Refrigerator Spacer
30	WP67006908 Whirlpool Refrigerator Screw
