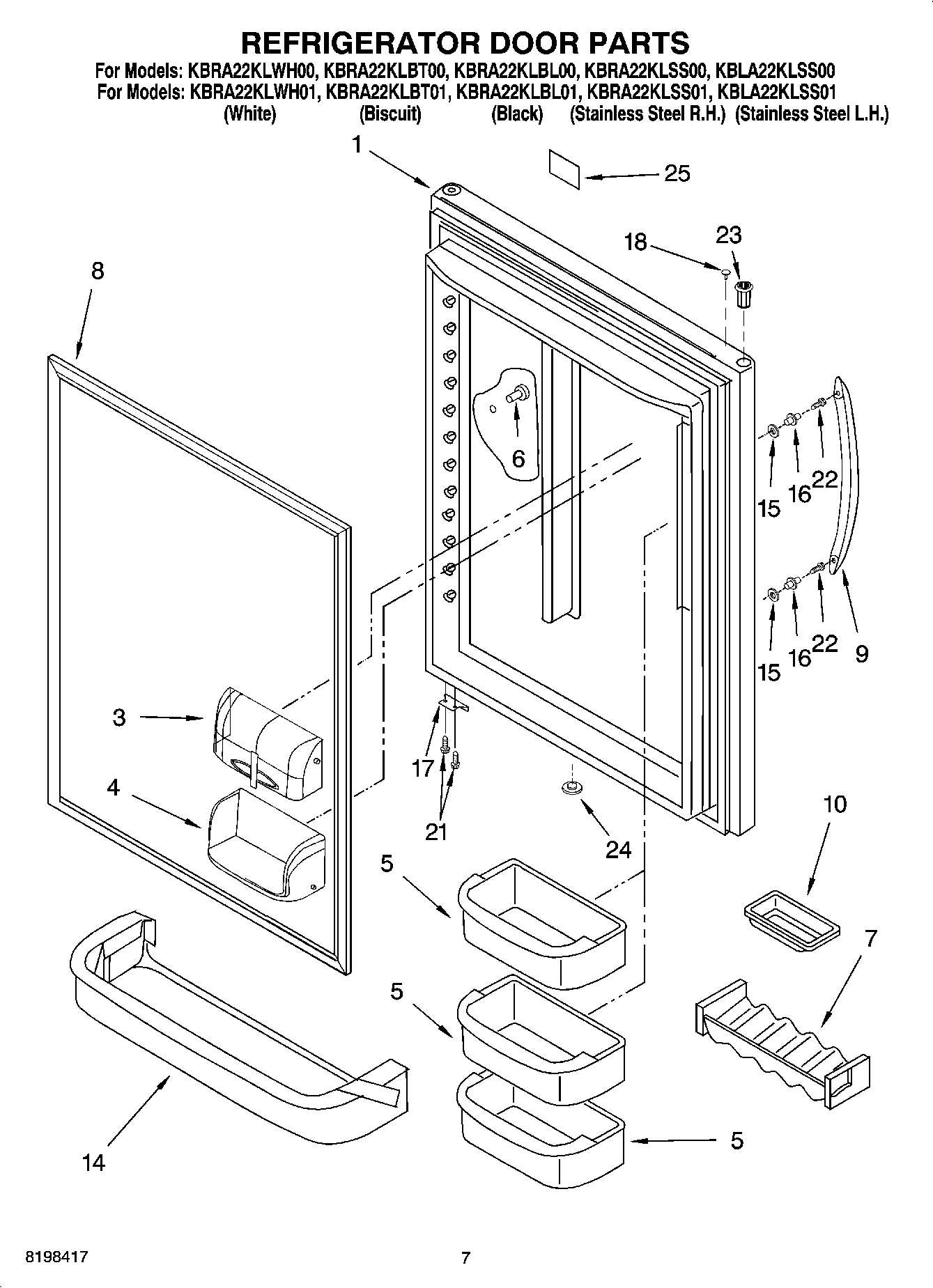

KBRA22KLBL01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel (Includes Insulation) (Stainless Steel LH)
1	Refrigerator Door Panel (Includes Insulation) (White)
1	Housing, Frz. Light
1	Refrigerator Door Panel (Includes Insulation) (Biscuit)
1	Refrigerator Door Panel (Includes Insulation) (Black)
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	Shelf Bin (Medium)
6	WP12246608 Whirlpool Refrigerator Button
6	WP67001130 Whirlpool Refrigerator White Button Plug
6	W10709784 Whirlpool Refrigerator Handle Plug
7	WP67005626 Whirlpool Refrigerator Can Caddy
8	Door Gasket, Magnetic (White)
8	WPW10436248 Whirlpool Door Gasket
9	Handle (White)
9	Handle (Stainless Steel)
9	Door Handle (Biscuit)
9	Door Handle (Black)
10	WPL 4344296
14	Trim, Door Shelf
15	WASHER
16	Stud, Handle
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
17	67003781 Whirlpool Refrigerator Door Stop (BSQ)
18	67004838 Whirlpool Refrigerator Button Vent Plug
18	10712401 Whirlpool Refrigerator Vent Plug (White)
21	WPW10348409 Whirlpool Screw
22	WP3387230 Whirlpool Screw
23	Bushing (Black)
23	WPL 4344362
24	Plug, Button
24	Plug, Button (White)
25	Nameplate (White)
25	Nameplate (Bisquit)
25	Nameplate (Black)
