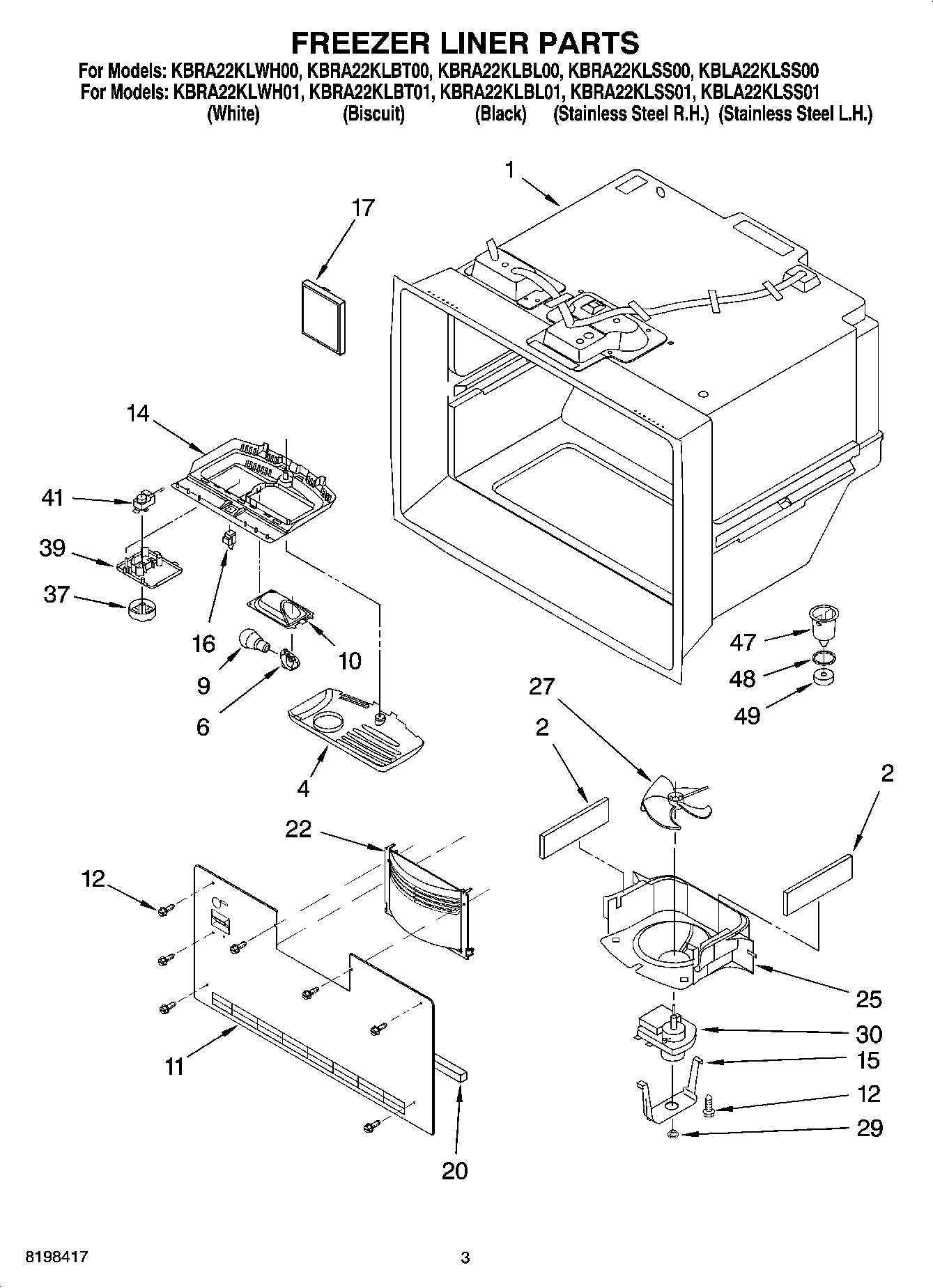

KBRA22KLBT00 02 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	W10856123 Whirlpool Refrigerator Gasket
4	Cover, Control
6	W11447232 Whirlpool Refrigerator Socket
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	Housing, Light
11	Cover, Evaporator
12	WPL 4344167
14	WP12476002 Whirlpool Refrigerator Module
15	Clip, Evap. Motor
16	W11396033 Whirlpool Refrigerator Rocker Switch
17	WP67001098 Whirlpool Refrigerator Tube Cover
20	W11159742 Whirlpool Refrigerator Gasket
22	WPW10175909 Whirlpool Grille Assembly
25	Shroud, Evap.Fan
27	WP2169142 Whirlpool Fan Blade
29	WP67002780 Whirlpool Refrigerator Grommet
30	WPW10128551 Whirlpool Evaporator Fan Motor
37	Knob, Control
39	Cover, Frz. Control
41	WP67003000 Whirlpool Refrigerator Control
47	W10815413 Whirlpool Refrigerator Funnel
48	WPM0500703 Whirlpool Refrigerator O-Ring Seal
49	WPB8381501 Whirlpool Refrigerator Door Gasket
