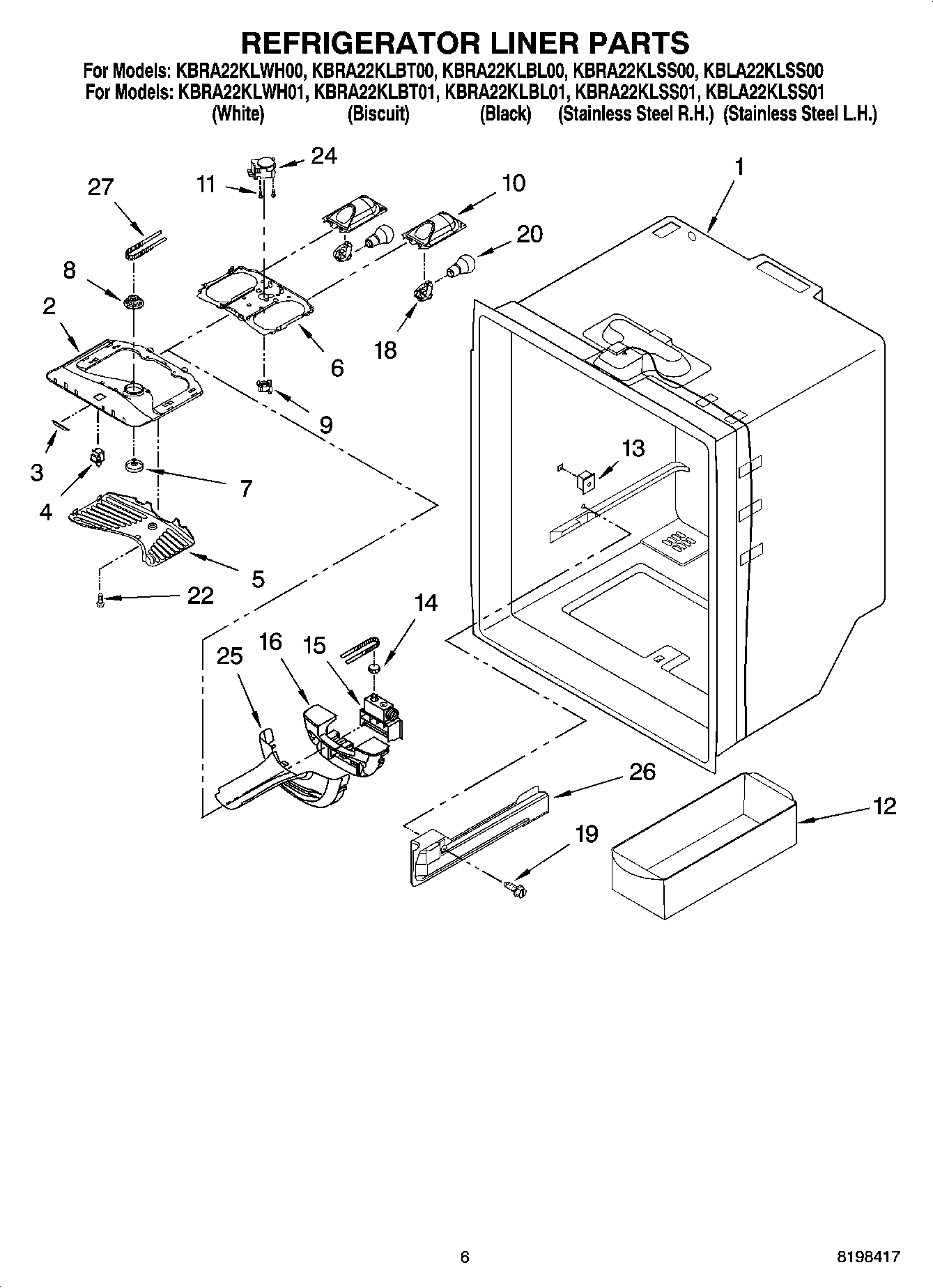

KBRA22KLWH00 04 – REFRIGERATOR LINER PARTSadmin2025-04-26T09:36:05+00:00KBRA22KLWH00 04 – REFRIGERATOR LINER PARTS
Products
| Position | Product |
|---|
| 1 | Liner (Not A Serviceable Part) |
| 2 | Housing, Ref. Light |
| 3 | OVERLAY |
| 4 | W11384469 Whirlpool Door Switch |
| 5 | Cover, Ref. Light |
| 6 | WP67002085 Whirlpool Refrigerator Housing |
| 7 | Knob, Damper |
| 8 | 67001033 Whirlpool Refrigerator Knob Gear |
| 9 | 67001034 Whirlpool Refrigerator Tensioner Belt |
| 10 | Housing, Light |
| 11 | Screw (2) |
| 12 | W10136387A Whirlpool Refrigerator Egg Container |
| 13 | Grommet, Screw |
| 14 | Gear, Damper |
| 15 | Control, Damper |
| 16 | Insulation, Damper |
| 18 | W11447232 Whirlpool Refrigerator Socket |
| 19 | WPL 4344167 |
| 20 | W11679940 Whirlpool Refrigerator Light Bulb Assembly |
| 22 | WP98165 Whirlpool Screw |
| 24 | WP67001036 Whirlpool Refrigerator Defrost Timer |
| 25 | Cover, Control |
| 26 | Support, Crisper (Left Side) |
| 26 | Support, Crisper (Right Side) |
| 27 | Belt, Damper |
