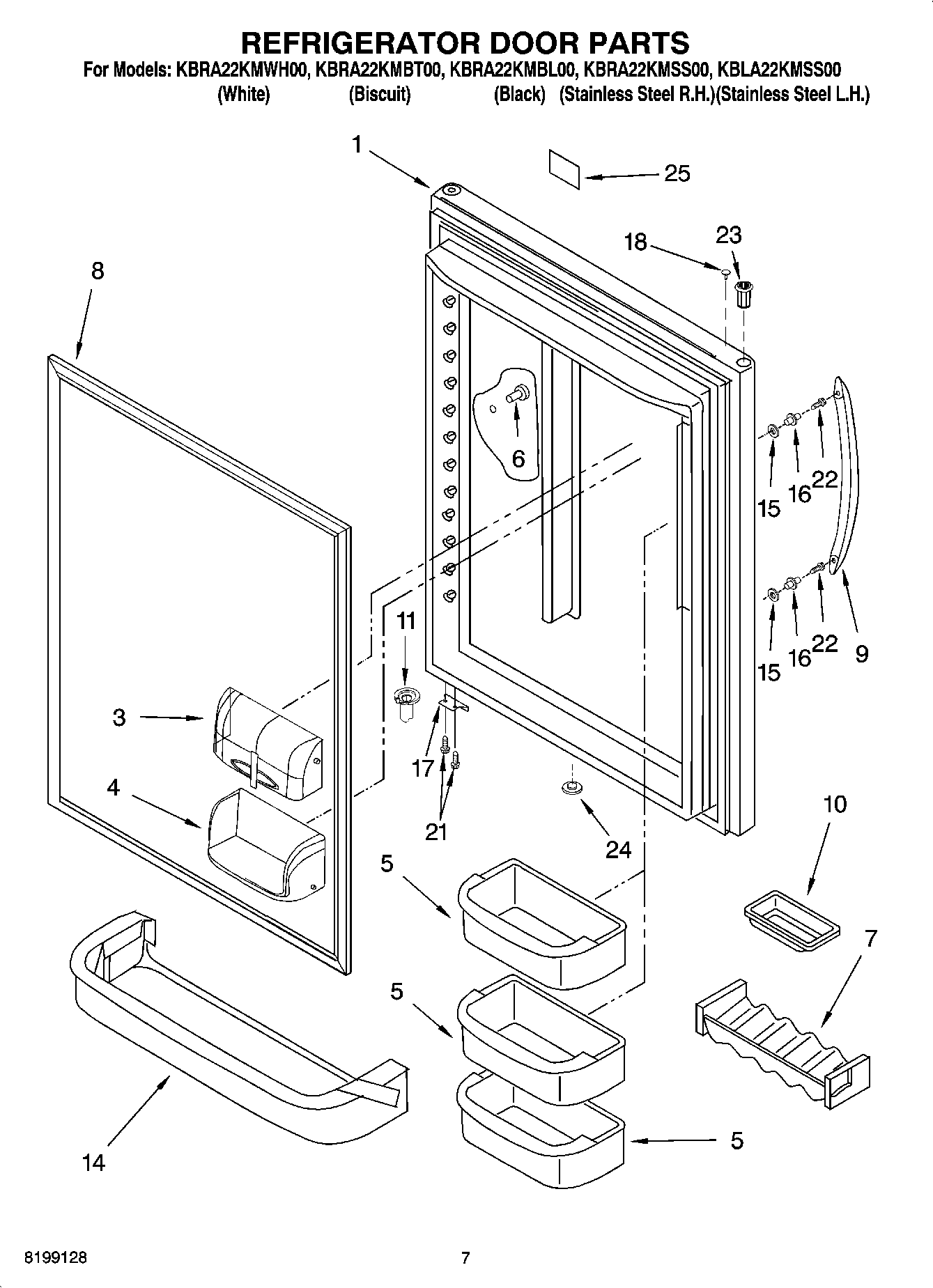

KBRA22KMBL00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel (Includes Insulation) (Biscuit)
1	Refrigerator Door (w/ Insulation) (Stainless Steel-RH)
1	Refrigerator Door (w/ Insulation) (White)
1	Refrigerator Door (w/ Insulation) (Stainless Steel-LH)
1	12658533BQ Whirlpool Refrigerator FIP Door
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	Shelf Bin (Medium)
6	WP12246608 Whirlpool Refrigerator Button
6	WP67001130 Whirlpool Refrigerator White Button Plug
6	W10709784 Whirlpool Refrigerator Handle Plug
7	WP67005626 Whirlpool Refrigerator Can Caddy
8	WPW10436248 Whirlpool Door Gasket
8	Gasket, Door Magnetic (White)
9	Door Handle (White)
9	Door Handle (Biscuit)
9	Door Handle (Black)
9	Door Handle (Stainless)
10	WPL 4344296
11	WP67003638 Whirlpool Closing Cam
11	WP67003639 Whirlpool Refrigerator Closer
14	Trim, Door Shelf
15	Washer
16	Stud, Handle
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
17	67003781 Whirlpool Refrigerator Door Stop (BSQ)
18	67004838 Whirlpool Refrigerator Button Vent Plug
18	10712401 Whirlpool Refrigerator Vent Plug (White)
21	WPW10348409 Whirlpool Screw
22	WP3387230 Whirlpool Screw
23	WPL 4344362
23	67004978 Whirlpool Refrigerator Black Door Bushing
24	Plug, Button (White)
24	Plug, Button
25	Nameplate (White)
25	Nameplate (Bisquit)
25	Nameplate (Black)
