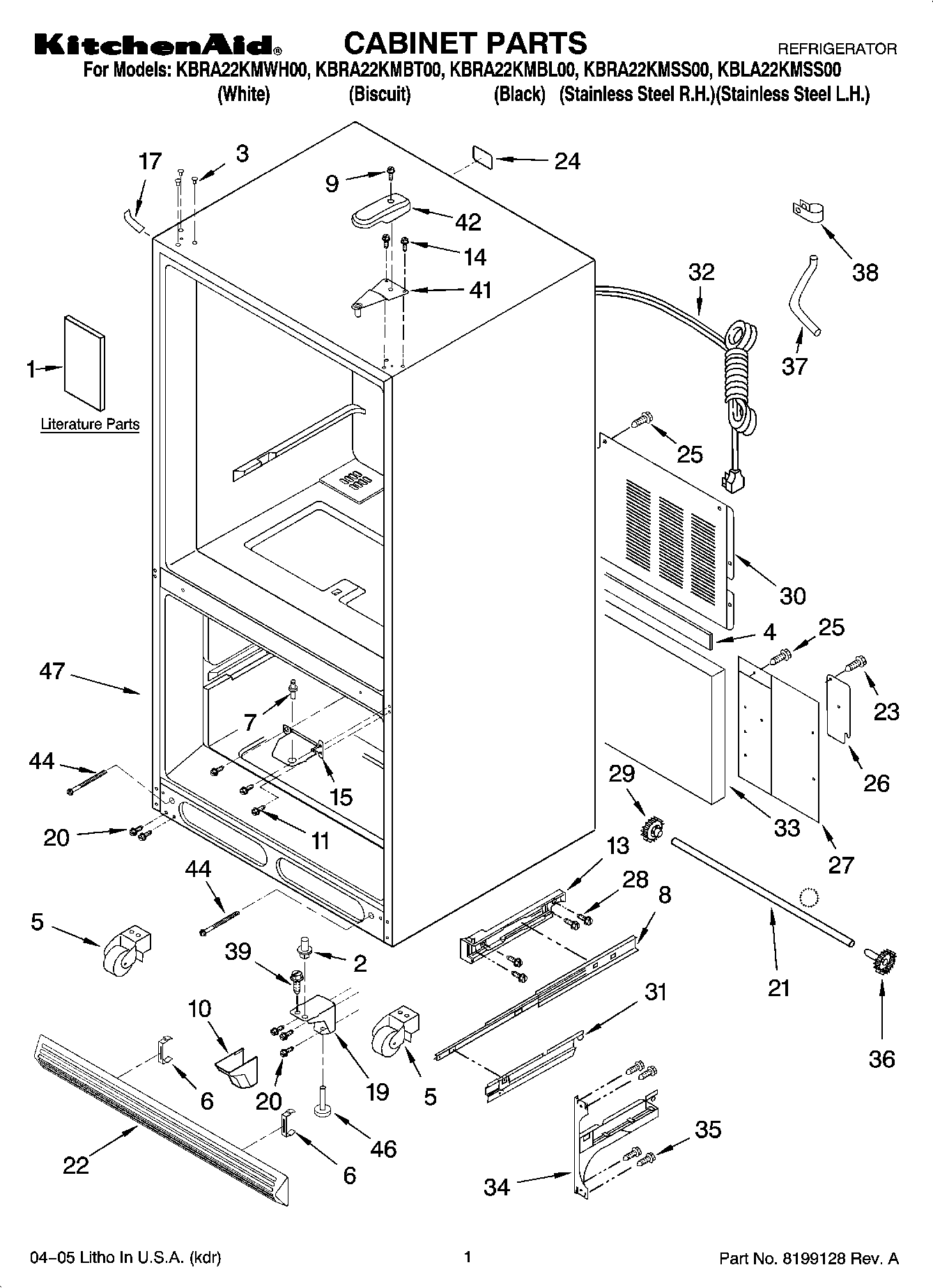

KBRA22KMWH00 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Tech Sheet
1Energy Tag
267007018 Whirlpool Refrigerator Bottom Hinge PIN
3WP2189009 Whirlpool Refrigerator Handle Plug
3W10709784 Whirlpool Refrigerator Handle Plug
3WP2189000 Whirlpool Refrigerator Handle Plug
4GASKET
5Roller Assembly
6Clip, Grille
712002311 Whirlpool Refrigerator Center Hinge Pin Kit
8Slide, Drawer
9WP8281196 Whirlpool Screw
10Hinge Cover, Bottom (White)
10Hinge Cover, Bottom (Black)
10Hinge Cover, Bottom (Biscuit)
11WP67006380 Whirlpool Screw
13Adapter (Left Side)
13Adapter (Right Side)
14WP489349 Whirlpool Refrigerator Screw
15WP12607104ED Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
17Cover, Corner (Biscuit)
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1767003484 Whirlpool Refrigerator White Corner Cover
19Hinge Bottom (White)
19Hinge Bottom (Black)
20Screw
21W11715937 Whirlpool Shaft
22Grille Assembly (Includes Clips) (Biscuit)
22Grille Assembly (Includes Clips) (Black)
22Grille Assembly (Includes Clips) (White)
23681390 Whirlpool Refrigerator Screw
24WP628356 Whirlpool Refrigerator Fill Cup
25WPL 4344167
26Plate, Cover
27Cover, Water Valve
28WP489474 Whirlpool Refrigerator Screw
2912002497 Whirlpool Refrigerator Drawer Gear Kit
30Cover, Unit
31WPW10280608 Whirlpool Refrigerator Bracket
31WPW10280613 Whirlpool Refrigerator Bracket
32WP67006506 Whirlpool Refrigerator Power Cord
3367003796 Whirlpool Refrigerator Fiber Acoustic
34Bracket, Door (Right)
34Bracket, Door (Left)
35WP98165 Whirlpool Screw
37Tube, Drain
3867001067 Whirlpool Refrigerator Drain Tube Clip
39M0310343 Whirlpool Button Plug
41WP12566606ED Whirlpool Refrigerator Door Hinge
4267001014 Whirlpool Refrigerator Top Hinge Cover White
42Cover, Hinge (Biscuit)
4267001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
4471003131 Whirlpool Oven Screw
46W11177593 Whirlpool Leveling Feet
47WPL ARI79533A7
