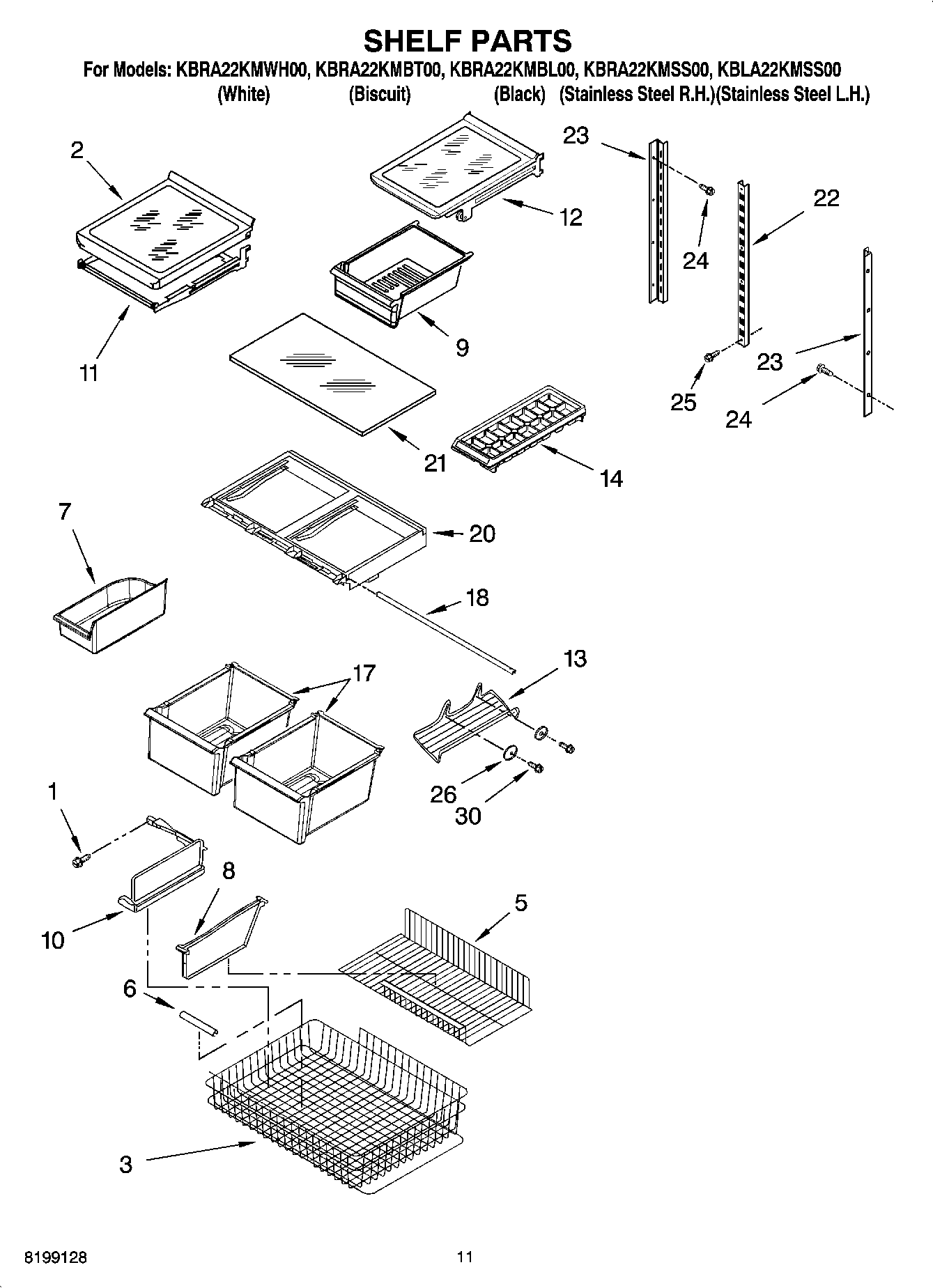

KBRA22KMWH00 07 – SHELF PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	WPL 876029
	WPL ARI79543A5
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL ARI79542A4
	WPL ARI79541A2
	4396418 Whirlpool Ice Maker
	WPL ARI79540A9
	Ice Container Assembly
	WPL ARI79539A2
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	212643 Whirlpool Refrigerator Permagum Sealer
	WPL ARI79544A4
	350942 Whirlpool Spray Paint
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	876370 Whirlpool Refrigerator Insulation
	833938 Whirlpool Refrigerator Terminal
	606755 Whirlpool Refrigerator Bag
	511873 Whirlpool Refrigerator Paint
1	Screw
2	Shelf, S/G (3)
3	Basket, Freezer (Lower)
5	Basket, Freezer (Upper)
6	Handle, Basket
7	WP67001255 Whirlpool Ice Bucket
8	Divider, Lower Basket
9	Meat Pan
10	Divider, Upper Basket
11	Frame & Roller Assembly (3)
12	Shelf Assy (Meat Pan)
13	Rack, Ice Tray
14	WP841180A Whirlpool Microwave Glass Turntable Tray
17	Crisper (2)
18	WP2172748 Whirlpool Drawer Support
20	Frame, Crisper
21	Glass, Crisper Cover
22	Ladder, Center
23	Ladder, Side
24	67006425 Whirlpool Refrigerator Screw
25	Screw
26	WP10972101 Whirlpool Refrigerator Spacer
30	WP67006908 Whirlpool Refrigerator Screw
