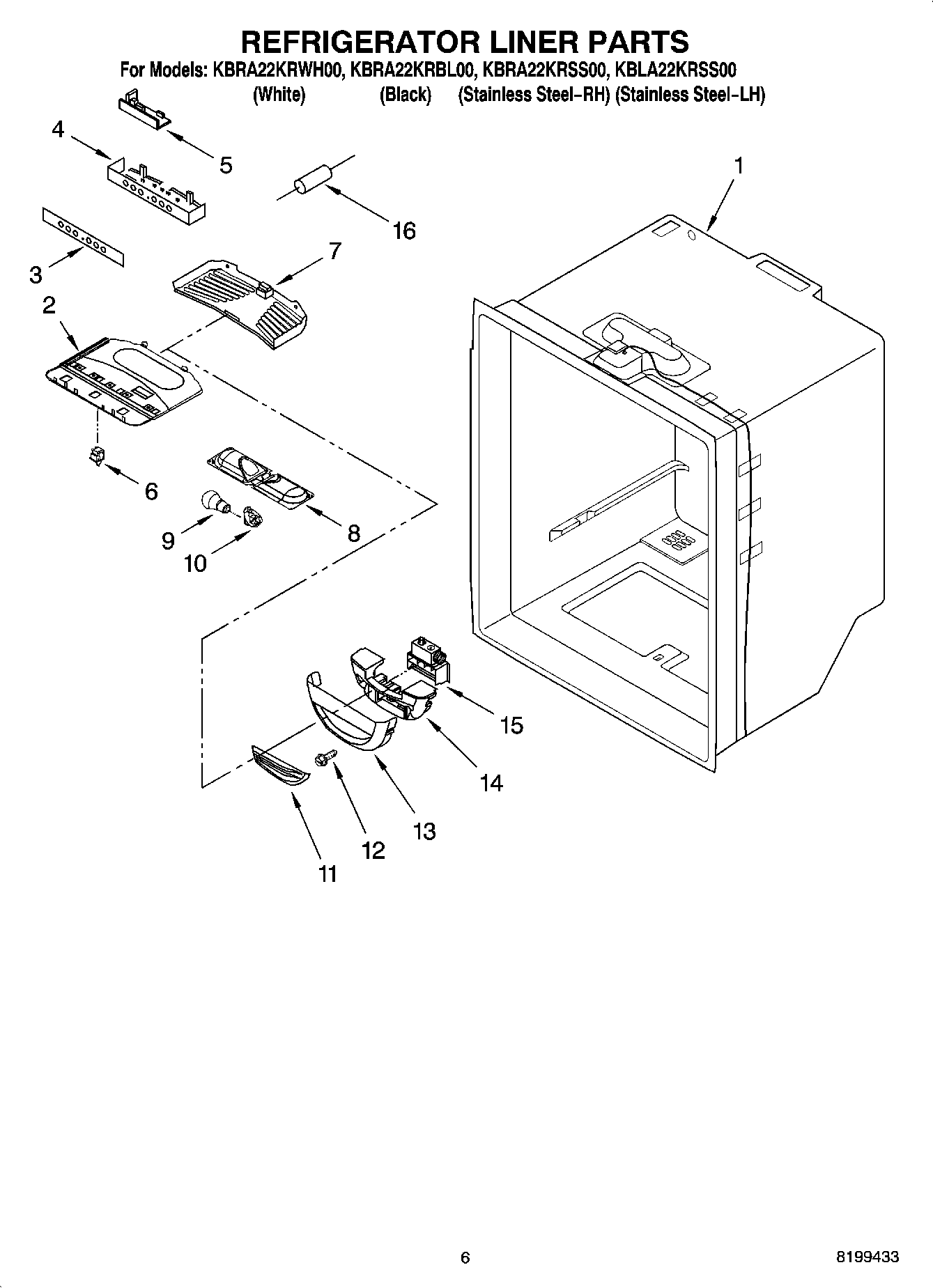

KBRA22KRBL00 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
267003906 Whirlpool Refrigerator Control Module
3Overlay
4W11416469 Whirlpool Refrigerator Housing
5WPW10207861-includeCORE Whirlpool WPW10207861 Refrigerator Electronic Control Board + Core
6W11384469 Whirlpool Door Switch
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9RANGE ONLY 40W 120V APPL BULB
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14WP67003904 Whirlpool Refrigerator Insulation
15WP67003903 Whirlpool Refrigerator Damper Control
1612002355 Whirlpool Refrigerator Thermistor Kit
1667005644 Whirlpool Refrigerator Wire Harness
16Harness, Damper Control
16FOLLOWING PARTS NOT ILLUSTRATED
