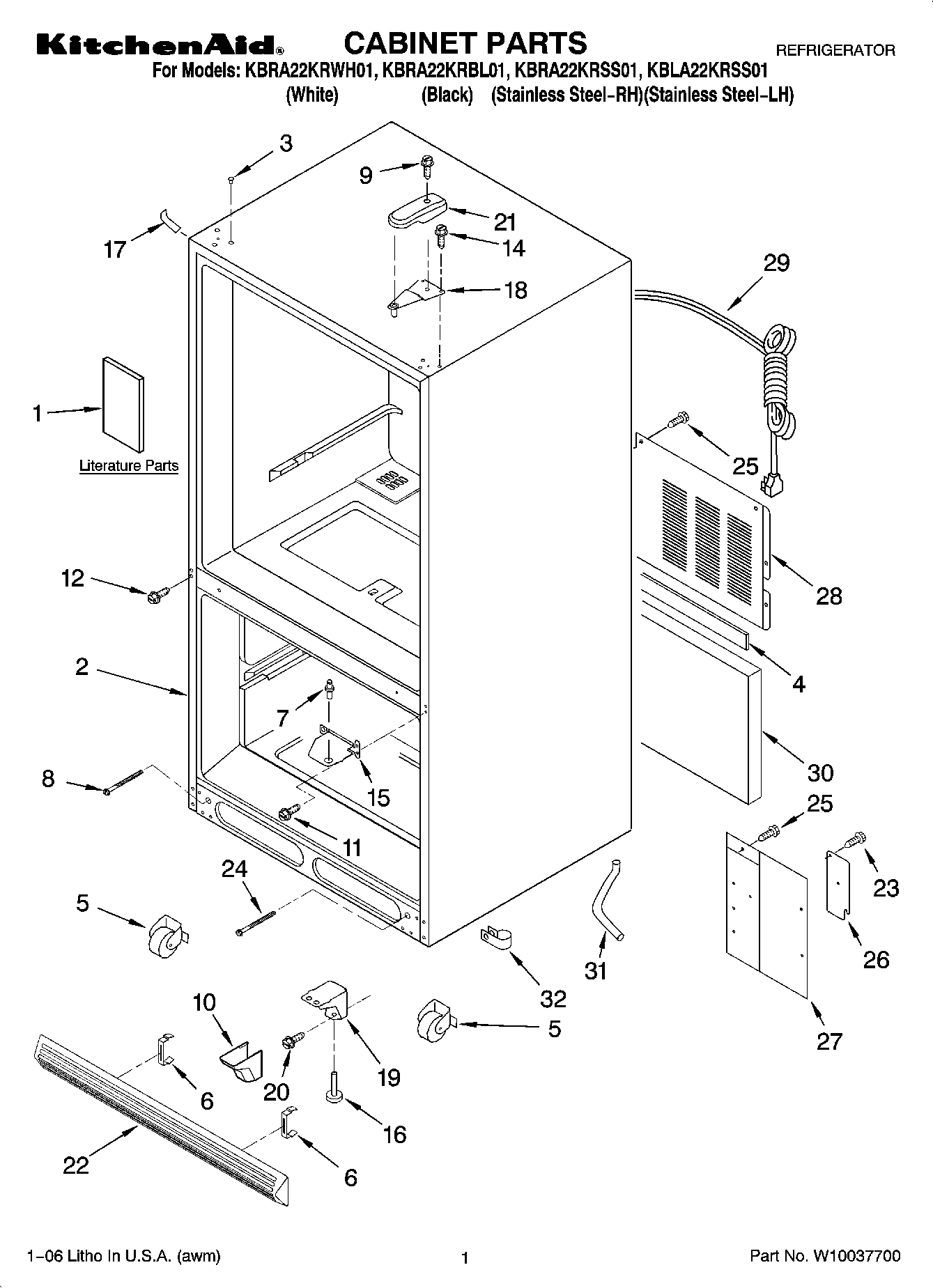

KBRA22KRBL01 01 – CABINET PARTS

Products

Position	Product
1	Tech Sheet
1	Energy Tag
1	Use & Care Guide
2	Cabinet (Not A Servicable Part)
3	WP2189000 Whirlpool Refrigerator Handle Plug
3	WP2189009 Whirlpool Refrigerator Handle Plug
4	GASKET
5	Roller Assembly
6	Clip, Grille
7	12002311 Whirlpool Refrigerator Center Hinge Pin Kit
8	Bolt, Adjusting (Rear)
9	WP8281196 Whirlpool Screw
10	Hinge Cover, Bottom (White)
10	Hinge Cover, Bottom (Black)
11	WP67006380 Whirlpool Screw
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	W11177593 Whirlpool Leveling Feet
17	67003484 Whirlpool Refrigerator White Corner Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	WP12566606ED Whirlpool Refrigerator Door Hinge
19	Hinge Bottom (Black)
19	Hinge Bottom (White)
20	Screw
21	67001014 Whirlpool Refrigerator Top Hinge Cover White
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
22	Grille Assembly (Includes Clips) (Black)
22	Grille Assembly (Includes Clips) (White)
23	681390 Whirlpool Refrigerator Screw
24	71003131 Whirlpool Oven Screw
25	WPL 4344167
26	Plate, Cover
27	Cover, Water Valve
28	Cover, Unit
29	WP67006506 Whirlpool Refrigerator Power Cord
30	67003796 Whirlpool Refrigerator Fiber Acoustic
31	Tube, Drain
32	67001067 Whirlpool Refrigerator Drain Tube Clip
