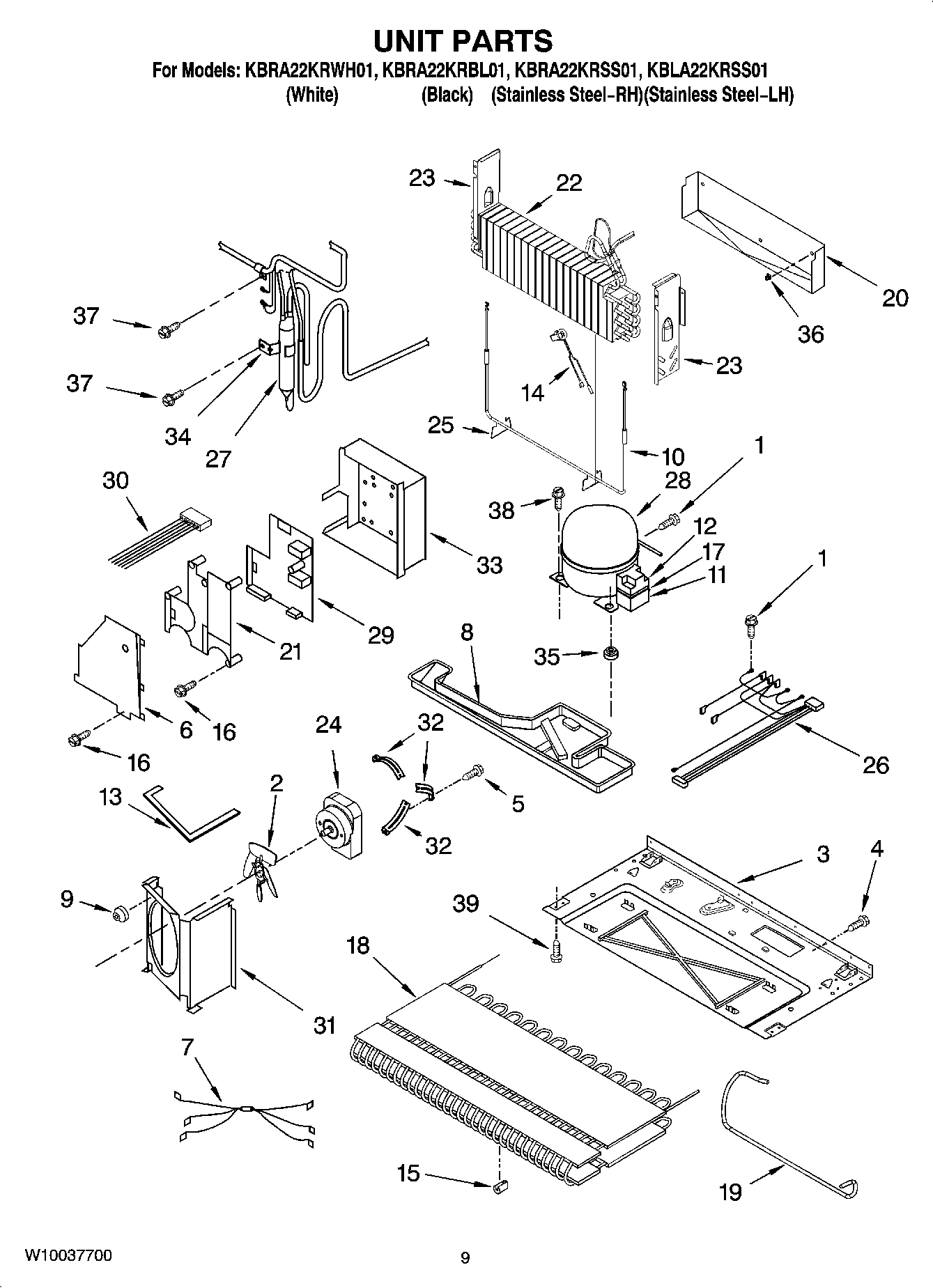

KBRA22KRBL01 06 – UNIT PARTS

Products

Position	Product
1	12992301 Whirlpool Refrigerator Screw
2	W10156818 Whirlpool Refrigerator Fan Blade
3	Base
4	WPL 4344167
5	WP67004954 Whirlpool Refrigerator Screw
6	67005421 Whirlpool Hoist Cover
7	Harness, Evap Heater
8	Drain Pan
9	Grommet (3)
10	WP67001794 Whirlpool Refrigerator Defrost Heater
12	W10613606 Whirlpool Refrigerator Start Device Relay Overload
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	WP67003426 Whirlpool Refrigerator Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	Screw
17	Clip
18	WP67006132 Whirlpool Refrigerator Condenser
19	Tube, Drain
20	WPW10292802 Whirlpool Refrigerator Drip Tray
21	Spacer
22	12001919 Whirlpool Refrigerator Evaporator Replacement Kit
23	Dam (Left Side)
23	Dam (Right Side)
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	Harness, Unit
27	W10843121 Whirlpool Refrigerator Tube
28	W10309989 Whirlpool Refrigerator Compressor
29	Control Board
30	Harness, Wiring
31	SHROUD
32	WP67004953 Whirlpool Refrigerator Bracket
33	Box, Control
34	Clip, Drier
35	WPL 4343845
36	Clip, Evap Motor
37	W10709801 Whirlpool Refrigerator Screw
38	12846902 Whirlpool Refrigerator Screw
39	876764 Whirlpool Refrigerator Primary Valve
39	978026 Whirlpool Refrigerator Primary Valve
39	REFRIGERANT CHARGE 5.00 Ozs. (R-134A)
39	Following Parts Not Illustrated and Optional Parts Not Included
39	978030 Whirlpool Refrigerator Valve
39	978027 Whirlpool Refrigerator Primary Valve
39	WP978025 Whirlpool Refrigerator Valve
39	VALVE, ACCESS (1/2“)
39	VALVE, ACCESS (5/8“)
39	WPL 4344292
