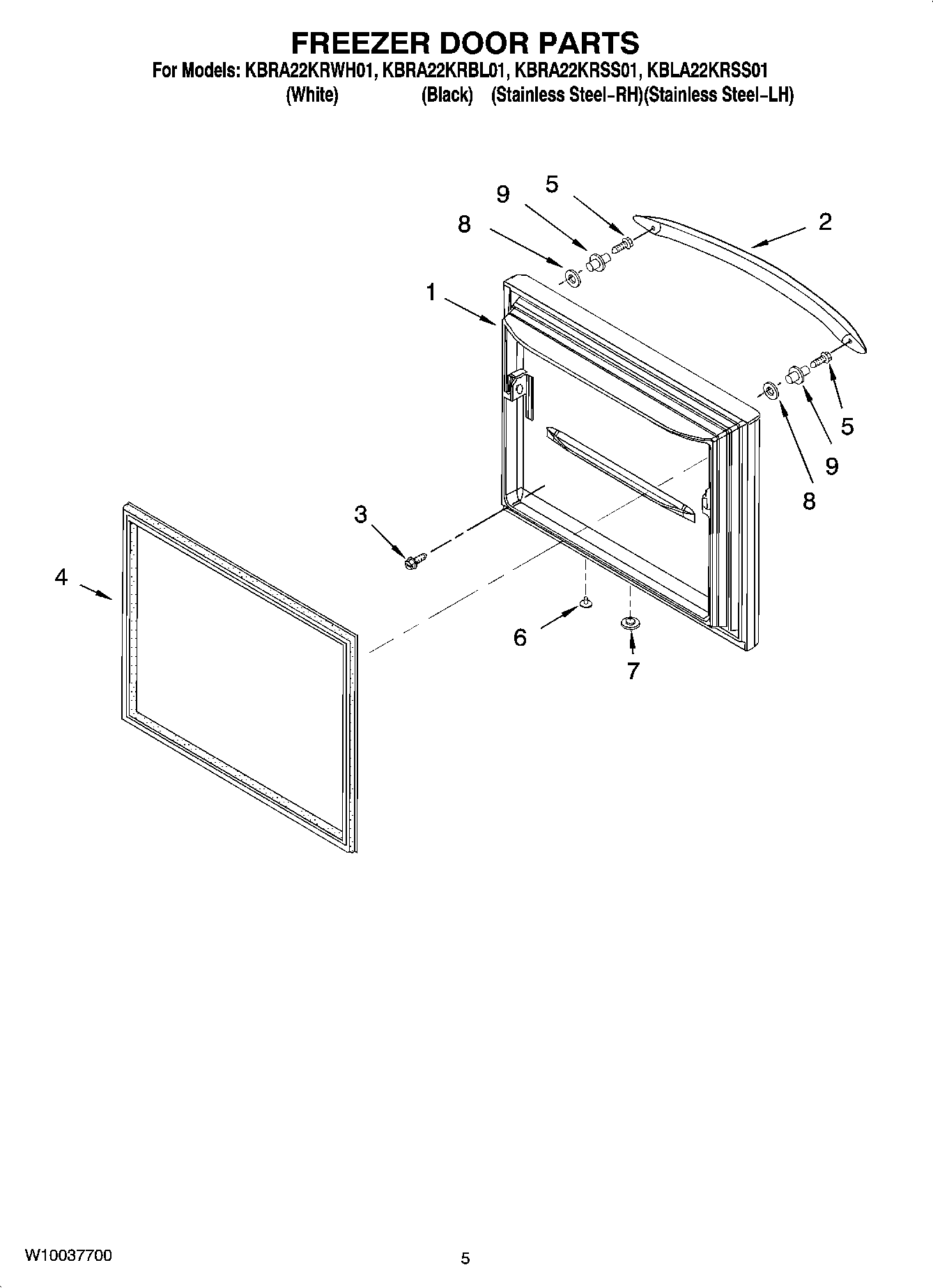

KBRA22KRSS01 03 – FREEZER DOOR PARTS

KBRA22KRSS01 03 – FREEZER DOOR PARTS

Written by

in

KBRA22KRSS01 03 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (w/ Insulation) (White)
1Freezer Door (w/ Insulation) (Black)
112658928SQ Whirlpool Refrigerator DOR FIP
2Door Handle (White)
2Door Handle (Black)
2Door Handle (Stainless)
3WP3400805 Whirlpool Screw Assembly
4WPW10436250 Whirlpool Refrigerator Freezer Door
4W10443315 Whirlpool Door Gasket
5WP3387230 Whirlpool Screw
6Plug, Button
6Plug, Button (White)
710712401 Whirlpool Refrigerator Vent Plug (White)
767004838 Whirlpool Refrigerator Button Vent Plug
8Washer
9Stud, Handle
