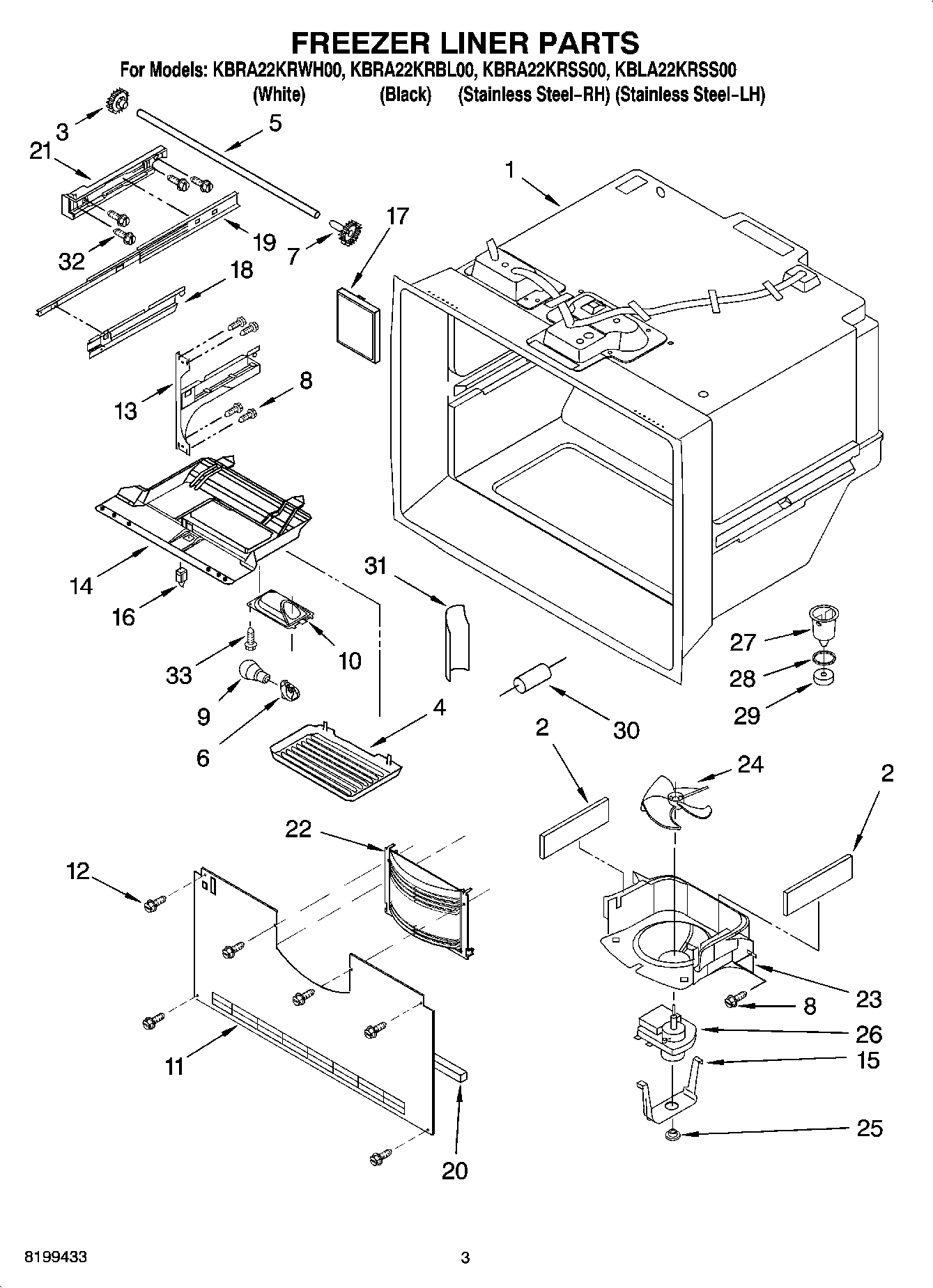

KBRA22KRWH00 02 – FREEZER LINER PARTSadmin2025-04-26T09:36:29+00:00KBRA22KRWH00 02 – FREEZER LINER PARTS
Products
| Position | Product |
|---|
| 1 | Liner (Not A Seviceable Part) |
| 2 | W10856123 Whirlpool Refrigerator Gasket |
| 4 | Cover, Light |
| 5 | W11715937 Whirlpool Shaft |
| 6 | W11447232 Whirlpool Refrigerator Socket |
| 7 | 12002497 Whirlpool Refrigerator Drawer Gear Kit |
| 8 | WP98165 Whirlpool Screw |
| 9 | RANGE ONLY 40W 120V APPL BULB |
| 10 | Housing, Light |
| 11 | Cover, Evaporator |
| 12 | WPL 4344167 |
| 13 | Bracket, Door (Left) |
| 13 | Bracket, Door (Right) |
| 14 | 67003906 Whirlpool Refrigerator Control Module |
| 15 | WP67005633 Whirlpool Refrigerator Bracket |
| 16 | W11396033 Whirlpool Refrigerator Rocker Switch |
| 17 | WP67001098 Whirlpool Refrigerator Tube Cover |
| 18 | WPW10280613 Whirlpool Refrigerator Bracket |
| 18 | WPW10280608 Whirlpool Refrigerator Bracket |
| 19 | Slide, Drawer (2) |
| 20 | W11159742 Whirlpool Refrigerator Gasket |
| 21 | Bracket, Slide (Left) |
| 21 | Bracket, Slide (Right) |
| 22 | WPW10175909 Whirlpool Grille Assembly |
| 23 | Shroud, Evap.Fan |
| 24 | WP2169142 Whirlpool Fan Blade |
| 25 | WP67002780 Whirlpool Refrigerator Grommet |
| 26 | WPW10128551 Whirlpool Evaporator Fan Motor |
| 27 | W10815413 Whirlpool Refrigerator Funnel |
| 28 | WPM0500703 Whirlpool Refrigerator O-Ring Seal |
| 29 | WPB8381501 Whirlpool Refrigerator Door Gasket |
| 30 | 12002355 Whirlpool Refrigerator Thermistor Kit |
| 31 | WP67003924 Whirlpool Refrigerator Cover |
| 33 | Harness, Lights (Freezer) |
| 33 | WPW10139210 Whirlpool Screw |
| 33 | FOLLOWING PARTS NOT ILLUSTRATED |
