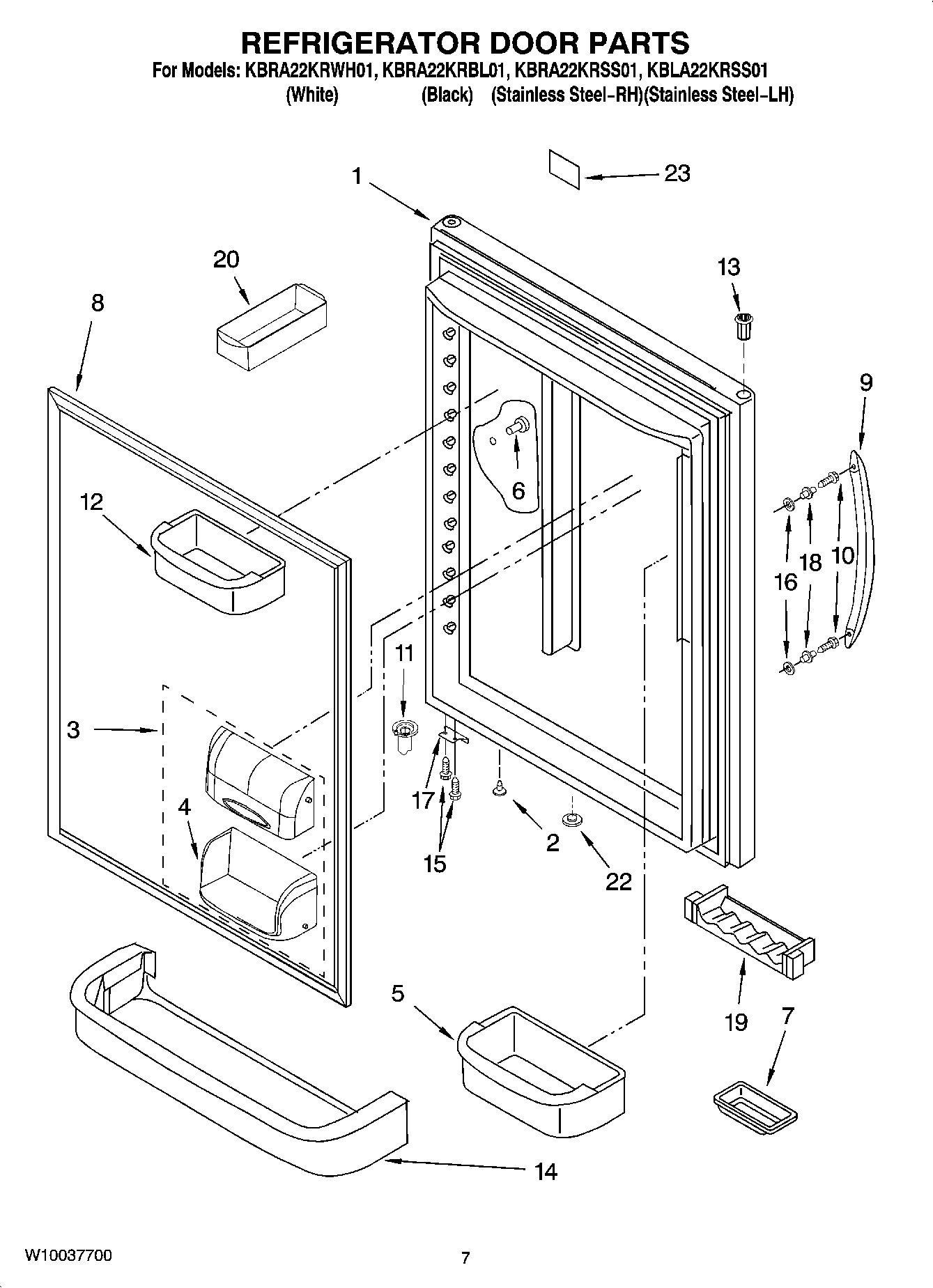

KBRA22KRWH01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (w/ Insulation) (Stainless Steel-LH)
1	12658533BQ Whirlpool Refrigerator FIP Door
1	Refrigerator Door (w/ Insulation) (Stainless Steel-RH)
1	Refrigerator Door (w/ Insulation) (White)
2	10712401 Whirlpool Refrigerator Vent Plug (White)
2	67004838 Whirlpool Refrigerator Button Vent Plug
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371195 Whirlpool Refrigerator Cantilever Bin
6	WP12246608 Whirlpool Refrigerator Button
6	WP67001130 Whirlpool Refrigerator White Button Plug
7	WPL 4344296
8	Gasket, Door Magnetic (White)
8	WPW10436248 Whirlpool Door Gasket
9	Door Handle (White)
9	Door Handle (Black)
9	Door Handle (Stainless)
10	WP3387230 Whirlpool Screw
11	WP67003638 Whirlpool Closing Cam
11	WP67003639 Whirlpool Refrigerator Closer
12	Bin, Shelf (1) (Small)
13	67004978 Whirlpool Refrigerator Black Door Bushing
13	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
14	Trim, Door Shelf
15	WP98165 Whirlpool Screw
16	Washer
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
18	Stud, Handle
19	WP67005626 Whirlpool Refrigerator Can Caddy
20	W10136387A Whirlpool Refrigerator Egg Container
22	Plug, Button
22	Plug, Button (White)
23	Nameplate (Black)
23	Nameplate (White)
