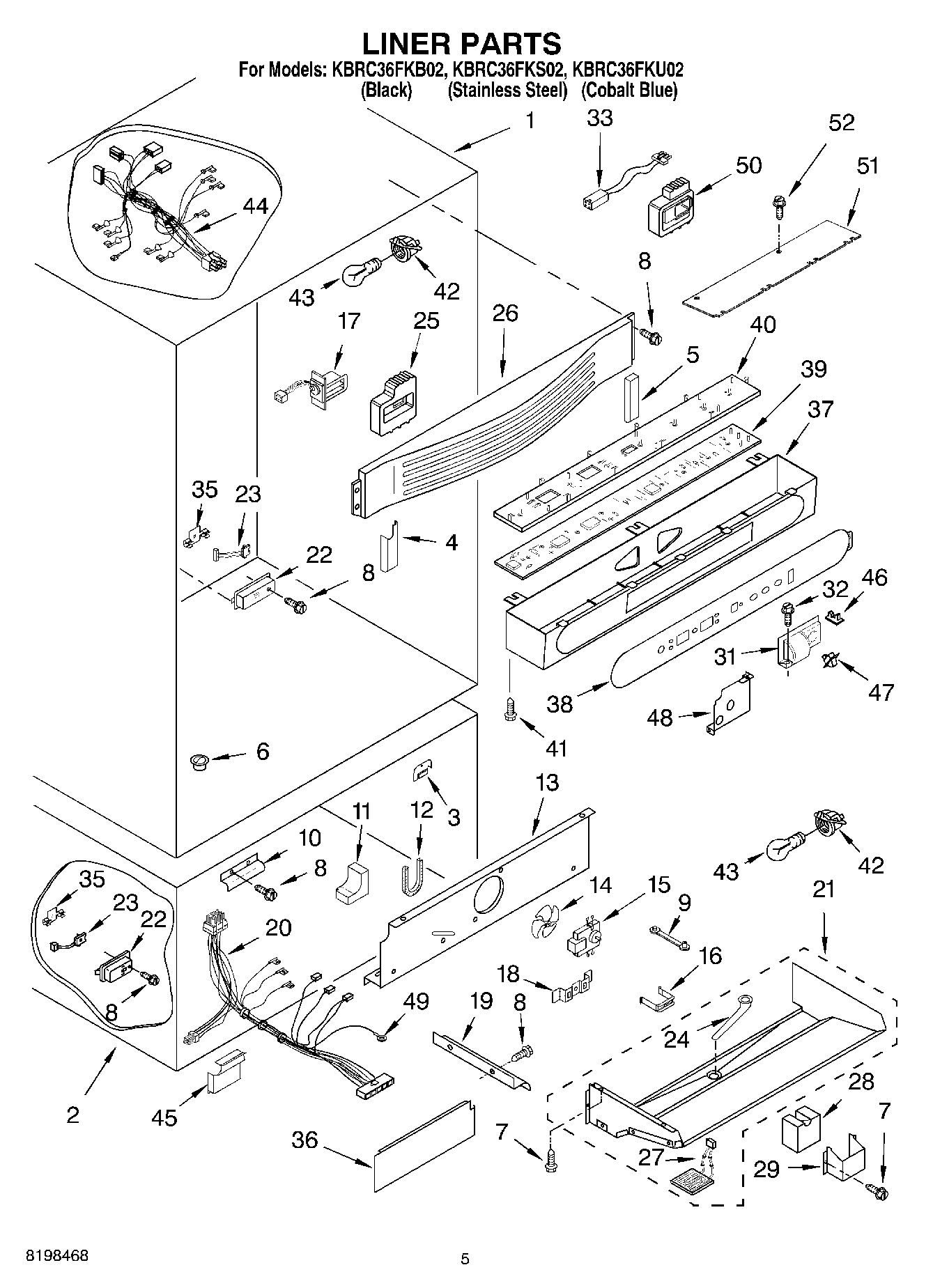

KBRC36FKB02 04 – LINER PARTS

Products

Position	Product
1	Liner, Refrigerator (Not Servicable)
2	Liner, Freezer (Not Servicable)
3	Cover, Heat Exchanger
4	Diffuser Cap, Left Side
5	Diffuser Cap, Right Side
6	2171846 Whirlpool Refrigerator Release Valve
7	WP488729 Whirlpool Refrigerator Door Screw
8	W11624204 Whirlpool Screw
9	8201663 Whirlpool Refrigerator Primary Fan Blade
10	Wiring Channel, Freezer Rear
11	Foam, Fan Shroud
12	2215910 Whirlpool Refrigerator Grommet
13	Shroud, Evaporator Fan
14	WP2169142 Whirlpool Fan Blade
15	8201589 Whirlpool Refrigerator Evaporator Motor
16	WP2155590 Whirlpool Refrigerator Retainer
17	WP2221296 Whirlpool Air Baffle
18	Bracket
19	Wiring Channel
20	Wiring Harness, Freezer
21	Cover, Evaporator Assembly
22	1116793 Whirlpool Refrigerator Cover
23	WP2188820 Whirlpool Refrigerator Thermistor
24	Drain Tube, Condensate
25	Insulation, Baffle
26	Cover, Air Diffuser
27	Heater-Tube, Drain
28	Insulation, Tube Drain
29	Cover, Tube Drain
31	Housing, Switch
32	WP489069 Whirlpool Compactor Screw
33	Wire, Jumper
35	Clip, Thermistor
36	2215612 Whirlpool Refrigerator Duct Cover
37	Control Panel
38	Overlay, Control Panel
39	Circuit Board (User Interface)
40	Insert, Control Box
41	WP489464 Whirlpool Refrigerator Screw
42	4387478 Whirlpool Refrigerator Light Socket
43	W10887190 Whirlpool Refrigerator Light Bulb
44	Harness, Control Box
45	Cover, Wiring Freezer Light
46	CLIP, WIRING
47	W11457217 Whirlpool Refrigerator Rocker Switch Combination
48	Wiring Cover, Icemaker
49	Defrost Bi-Metal
50	Diffuser Assembly
51	2221121 Whirlpool Refrigerator Support
52	WP488920 Whirlpool Refrigerator Screw
