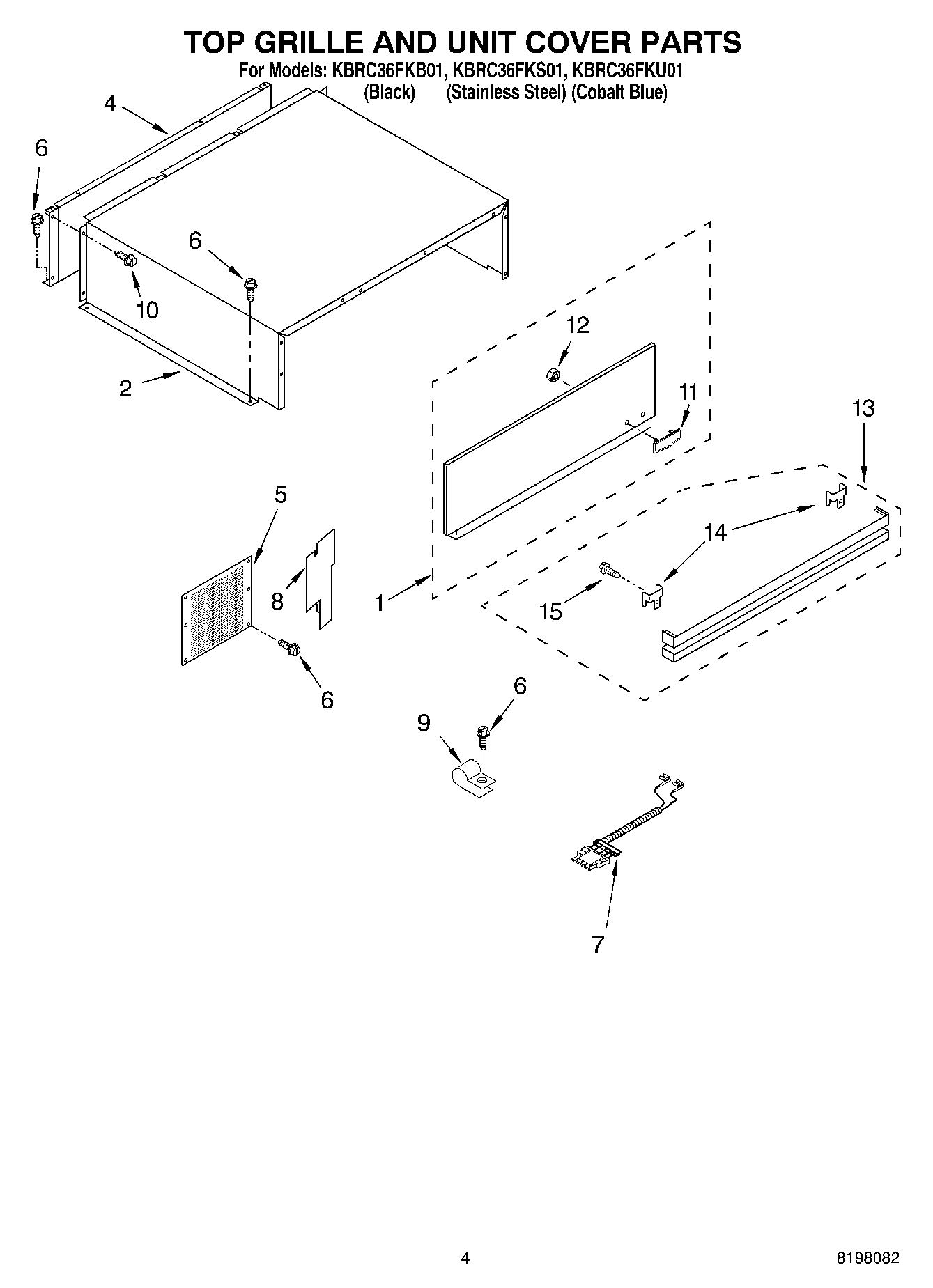

KBRC36FKS01 03 – TOP GRILLE AND UNIT COVER

KBRC36FKS01 03 – TOP GRILLE AND UNIT COVER

Written by

in

KBRC36FKS01 03 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly (Cobalt Blue)
1Top Grille Assembly (Black)
1Top Grille Assembly (Stainless Steel)
2Cover, Unit
42256466 Whirlpool Refrigerator Unit Cover
5Guard, Wiring
6WP965173 Whirlpool Dishwasher Screw
7Wire Assembly
8Baffle-Air, Condenser
9489348 Whirlpool Refrigerator Tube Clamp
10SCREW
11Nameplate (Black)
11Nameplate (Cobalt Blue)
12WP2004333 Whirlpool Refrigerator Nut
13Louver, Vent (Black)
13Louver, Vent (Stainless Steel)
14Louver, Bracket
15303776 Whirlpool Dishwasher Screw
