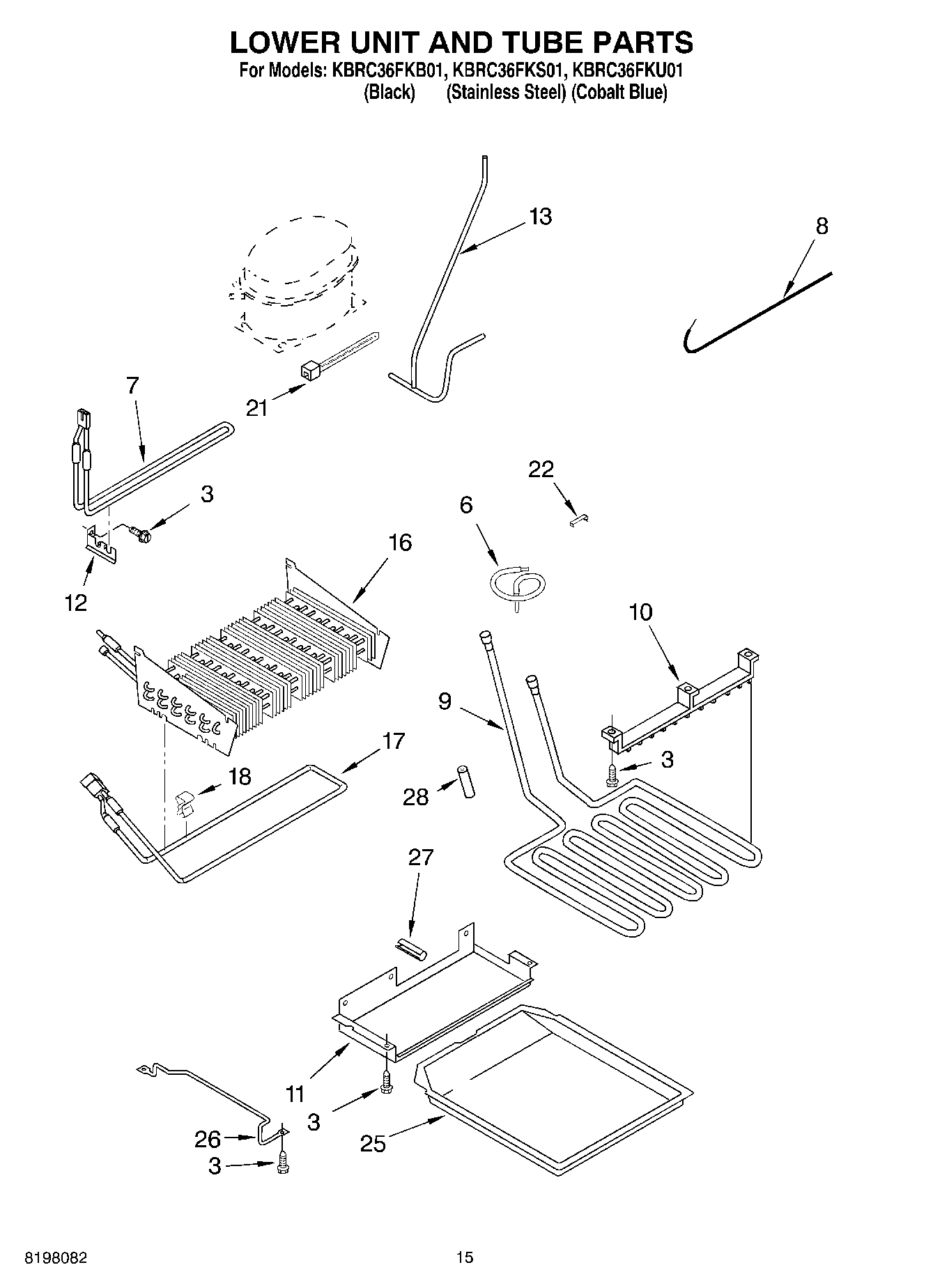

KBRC36FKS01 09 – LOWER UNIT AND TUBE

Products

Position	Product
3	W11624204 Whirlpool Screw
6	Suction Tube
7	Heater, Defrost (Rear)
8	Tube, Connect (Drier)
9	Heater, Drain Pan
10	Hanger, Heater
11	Shield, Drain Pan
12	Support, Heater
13	Tube, Discharge
16	Evaporator
17	Heater, Defrost (Front)
18	Clamp, Heater (2)
21	WPW10339879 Whirlpool Wire Tie
22	W10169509 Whirlpool Refrigerator Clip
25	WP2001264 Whirlpool Refrigerator Drip Pan
26	Bracket, Drain Pan (Right)
26	Bracket, Drain Pan (Left)
27	WP2158826 Whirlpool Refrigerator Dampener
28	2215648 Whirlpool Refrigerator Dampener
