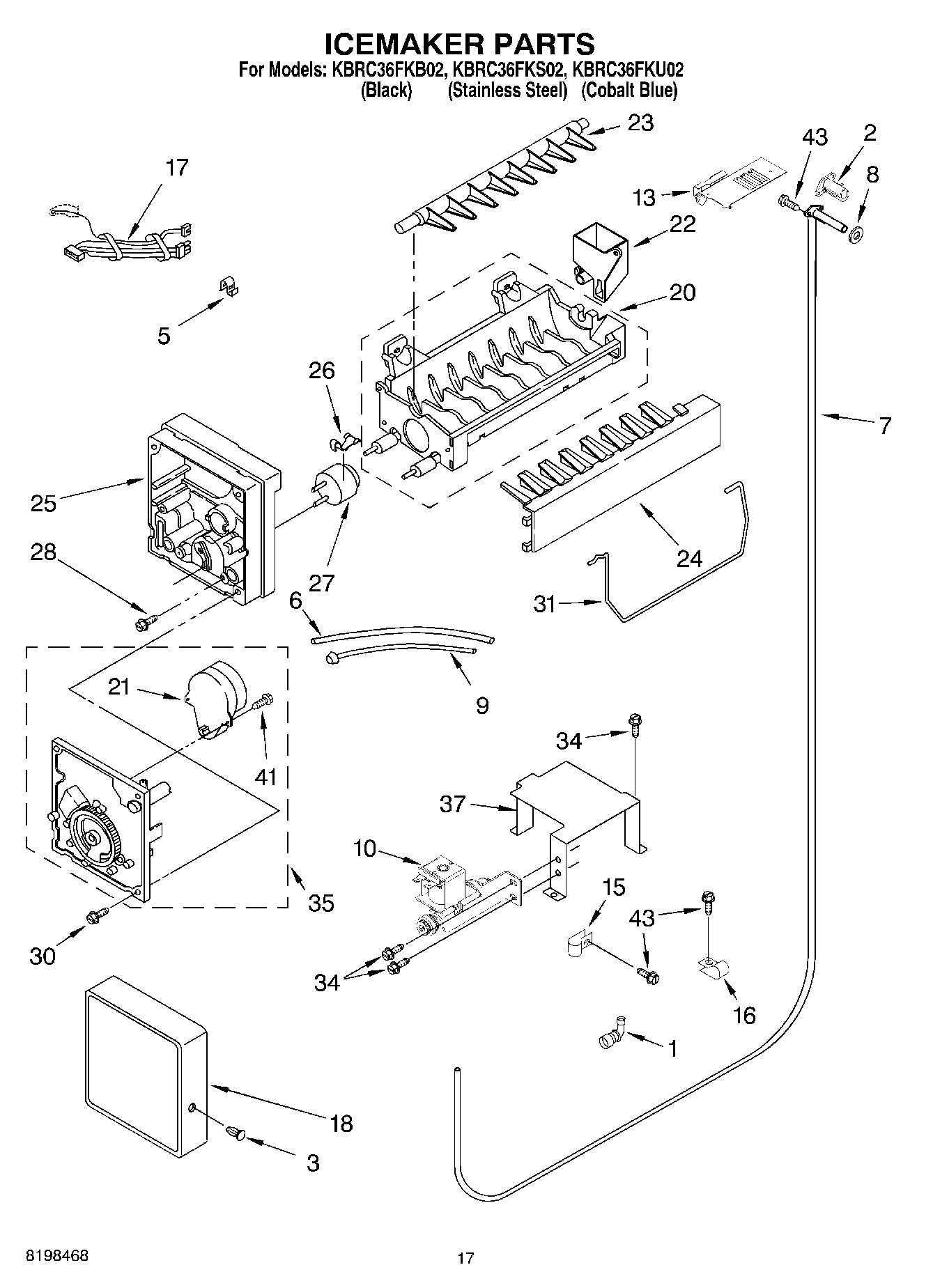

KBRC36FKS02 10 – ICEMAKER PARTSadmin2025-04-26T09:37:48+00:00KBRC36FKS02 10 – ICEMAKER PARTS ProductsPositionProduct1Tube, Valve2WP2221240 Whirlpool Refrigerator Heater3WP489115 Whirlpool Refrigerator Rivet5WP628379 Whirlpool Refrigerator Clip6Tube, Filter Inlet7Water Inlet Tube Assembly8WP1106508 Whirlpool Refrigerator Gasket9Tube, Filter Outlet10WP2313917 Whirlpool Refrigerator Inlet Valve13WP2221231 Whirlpool Refrigerator Shield15489348 Whirlpool Refrigerator Tube Clamp16488946 Whirlpool Air Conditioner Clamp17Wire Assembly, Icemaker18Cover20WPW10190929 Whirlpool Refrigerator Ice Maker Mold21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31Shut Off Arm34WP489464 Whirlpool Refrigerator Screw358201515 Whirlpool Refrigerator Motor and Gear Module Kit37Water Valve Mounting Bracket41489136 Whirlpool Refrigerator Screw43W11624204 Whirlpool Screw1004317943 Whirlpool Refrigerator Ice Maker Assembly
