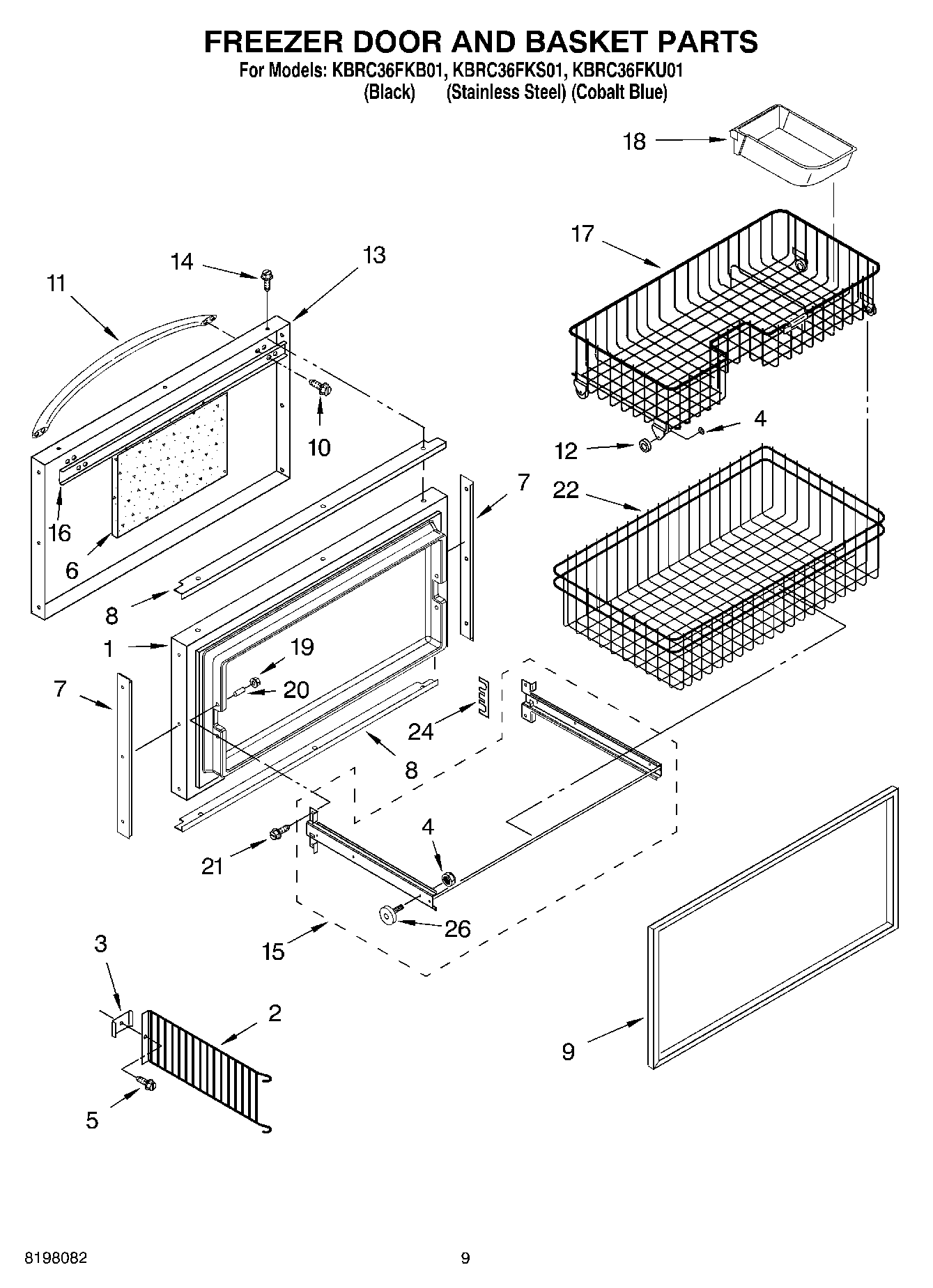

KBRC36FKU01 06 – FREEZER DOOR AND BASKET

Products

Position	Product
1	Freezer Door Panel (Includes Item 9)
2	Divider, Basket
3	Clamp, Divider
4	2207415 Whirlpool Refrigerator Nut
5	WPW10141625 Whirlpool Refrigerator Screw Assembly
6	Foam, Filler
7	Spacer, Door Edge – Side
8	Spacer, Door Edge Top & Bottom
9	Door Gasket, Magnetic
10	WP308544 Whirlpool Screw
11	Handle, Door (Black)
11	Handle, Door (Stainless Steel)
12	W11214482 Whirlpool Refrigerator Roller
13	Skin, Door (Cobalt Blue)
13	Skin, Door (Black)
13	Skin, Door (Stainless Steel)
14	W10851443 Whirlpool Refrigerator Screw
14	WP8281250 Whirlpool Refrigerator Screw
15	Bracket, Assembly Freezer Basket
16	Plate, Handle
17	Basket, Upper
18	Pan, Ice Cube
19	WP2207454 Whirlpool Refrigerator Nut
20	Bushing
21	Screw
22	Basket, Freezer Lower
24	Spacer
26	Roller
