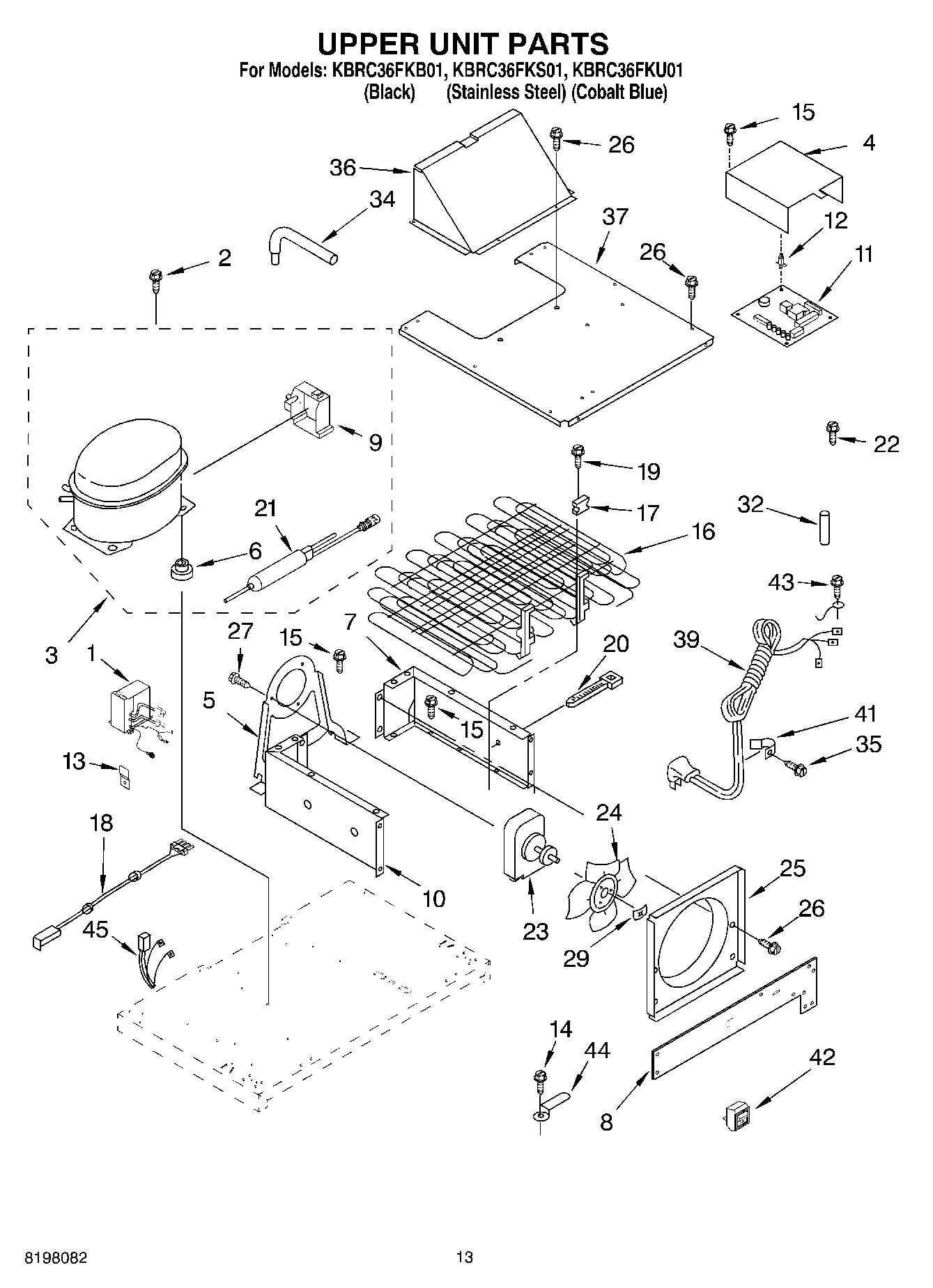

KBRC36FKU01 08 – UPPER UNIT

Products

PositionProduct
1W10629033 Whirlpool Refrigerator Inverter Control Box
3876765 Whirlpool Primary Mounting Kit Refrigerator
3W10841139 Whirlpool Refrigerator Compressor
4Housing, Control Board
5Bracket, Fan Motor
6876811 Whirlpool Grommet
7Shroud, Condenser (Right)
8Panel, Condenser Front
92215676 Whirlpool Refrigerator Terminal Cover
10Shroud, Condenser (Left)
11Control Board
12WP2203075 Whirlpool Refrigerator Spacer
132256328 Whirlpool Bracket Assembly
14Screw
15WP489069 Whirlpool Compactor Screw
16Condenser
17Grommet (4)
18Wire, Jumper
19WP488163 Whirlpool Refrigerator Screw
20WPW10339879 Whirlpool Wire Tie
21W10843121 Whirlpool Refrigerator Tube
22Screw
23MOTOR-COND/INCL BLADE&BRKT
24Blade, Fan
25Orifice, Fan
26WP965173 Whirlpool Dishwasher Screw
278281160 Whirlpool Screw
29WP486692 Whirlpool Refrigerator Nut
32Sleeve, Condenser
34W10528578 Whirlpool Refrigerator Tube
35W11624204 Whirlpool Screw
36Cover, Fan
37Cover, Condenser
39Service Cord
41549193 Whirlpool Refrigerator Power Clamp
42WP2266802 Whirlpool Refrigerator Switch
43WP489128 Whirlpool Refrigerator Screw
44Clip, Cord Plug
45VALVE, ACCESS (5/8“)
45VALVE, ACCESS (1/2“)
45WP978025 Whirlpool Refrigerator Valve
45978030 Whirlpool Refrigerator Valve
45978027 Whirlpool Refrigerator Primary Valve
45978026 Whirlpool Refrigerator Primary Valve
45876764 Whirlpool Refrigerator Primary Valve
45Wiring Harness, Unit Compartment
