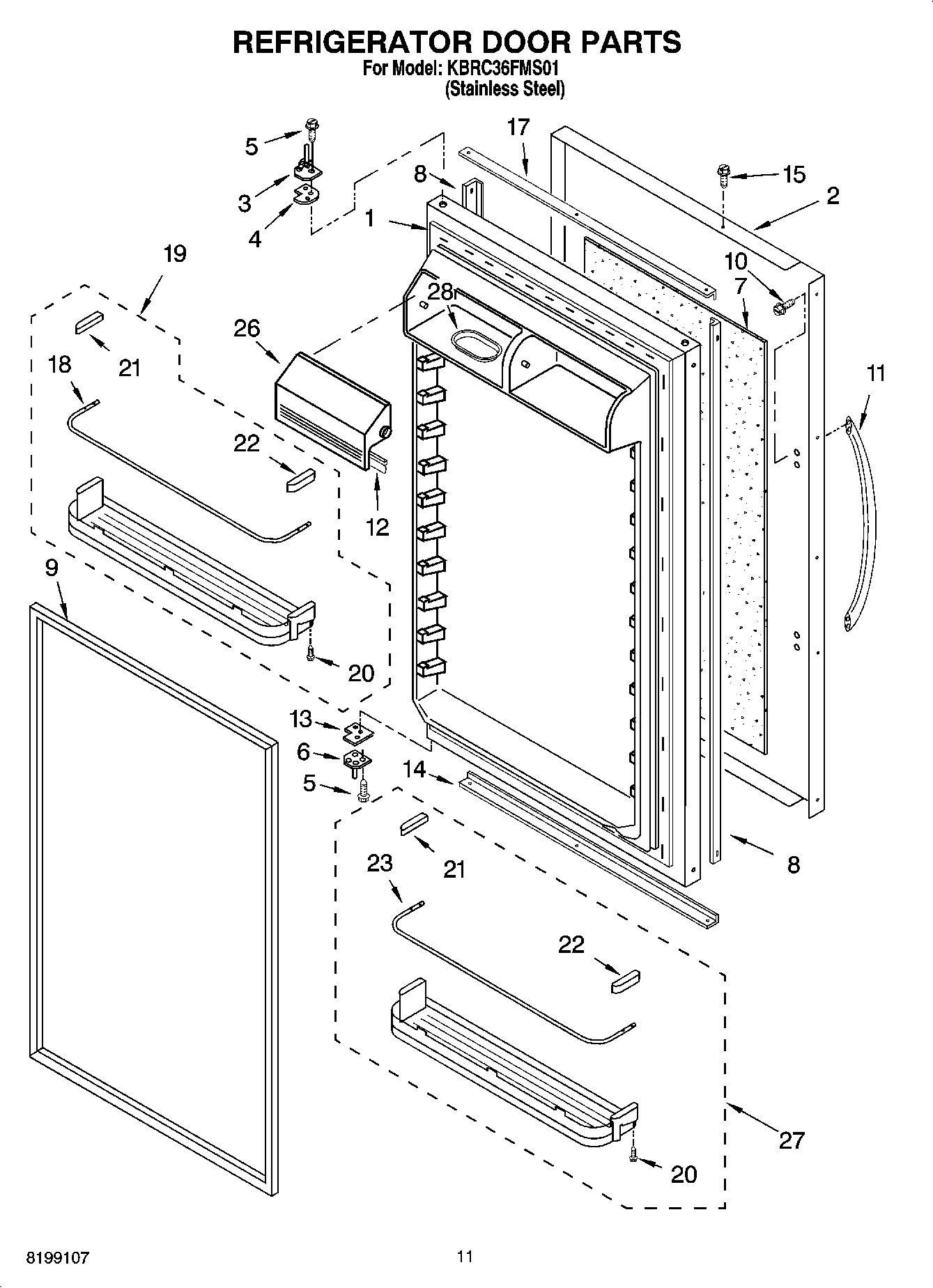

KBRC36FMS01 07 – REFRIGERATOR DOOR PARTS
Written by
in
KBRC36FMS01 07 – REFRIGERATOR DOOR PARTS
Products
Position
Product
1
Refrigerator Door (Includes Item 9)
2
Skin, Door (Stainless Steel)
3
Hinge Assembly, Top
4
Spacer-Hinge, Top
5
W11474472 Whirlpool Screw
6
Hinge Assembly, Bottom
7
Filler, Foam
8
Spacer, Door Edge – Side (2)
9
2302709 Whirlpool Refrigerator Door Gasket
10
WP308544 Whirlpool Screw
11
Handle, Door (Stainless Steel)
12
Gasket (2)
13
SPACER, HINGE (BOTTOM)
14
SPACER, DOOR EDGE (BOTTOM)
15
WP8281250 Whirlpool Refrigerator Screw
15
W10851443 Whirlpool Refrigerator Screw
17
SPACER, DOOR EDGE (TOP)
18
Tube, Door Shelf
19
Shelf, Door (2)
20
WP681249 Whirlpool Screw Assembly
21
End Cap, Left
22
End Cap, Right
23
Tube, Door Shelf (Gallon)
26
Door, Utility Bin (2) (Includes Item 12)
27
Door Shelf, Gallon
28
Butter Tray
←
