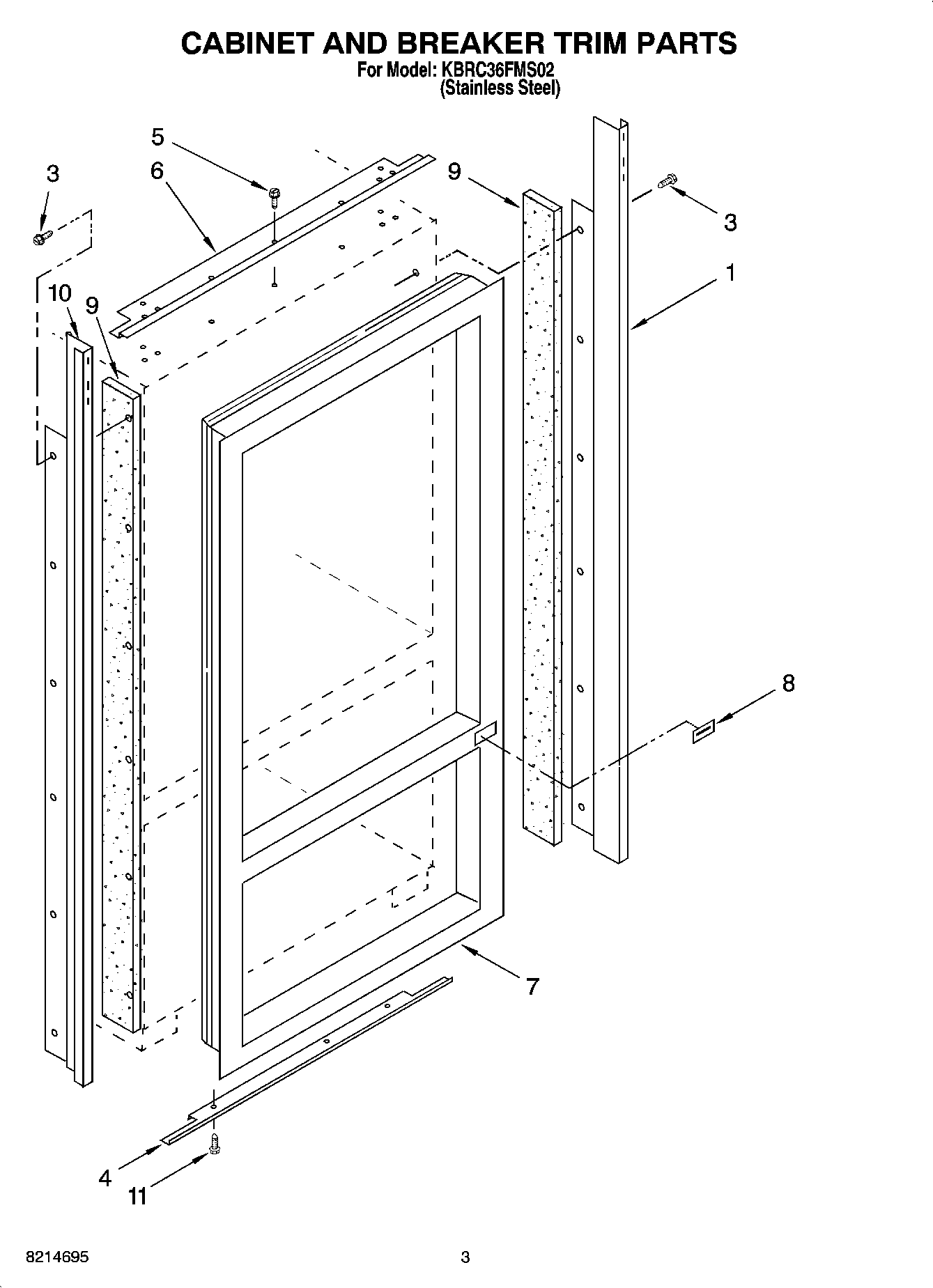

KBRC36FMS02 02 – CABINET AND BREAKER TRIM PARTS

Written by

Products

Position	Product
1	Cabinet Trim, Right Side (Stainless Steel)
3	WP1163283 Whirlpool Air Conditioner Screw
4	Cabinet, Trim (Bottom)
5	W11624204 Whirlpool Screw
6	Cabinet Trim, Top
7	Breaker Trim (Not Serviced)
8	Cover, Hinge
9	Seal, Side Trim
10	Cabinet Trim, Left Side (Stainless Steel)
11	WP489464 Whirlpool Refrigerator Screw
