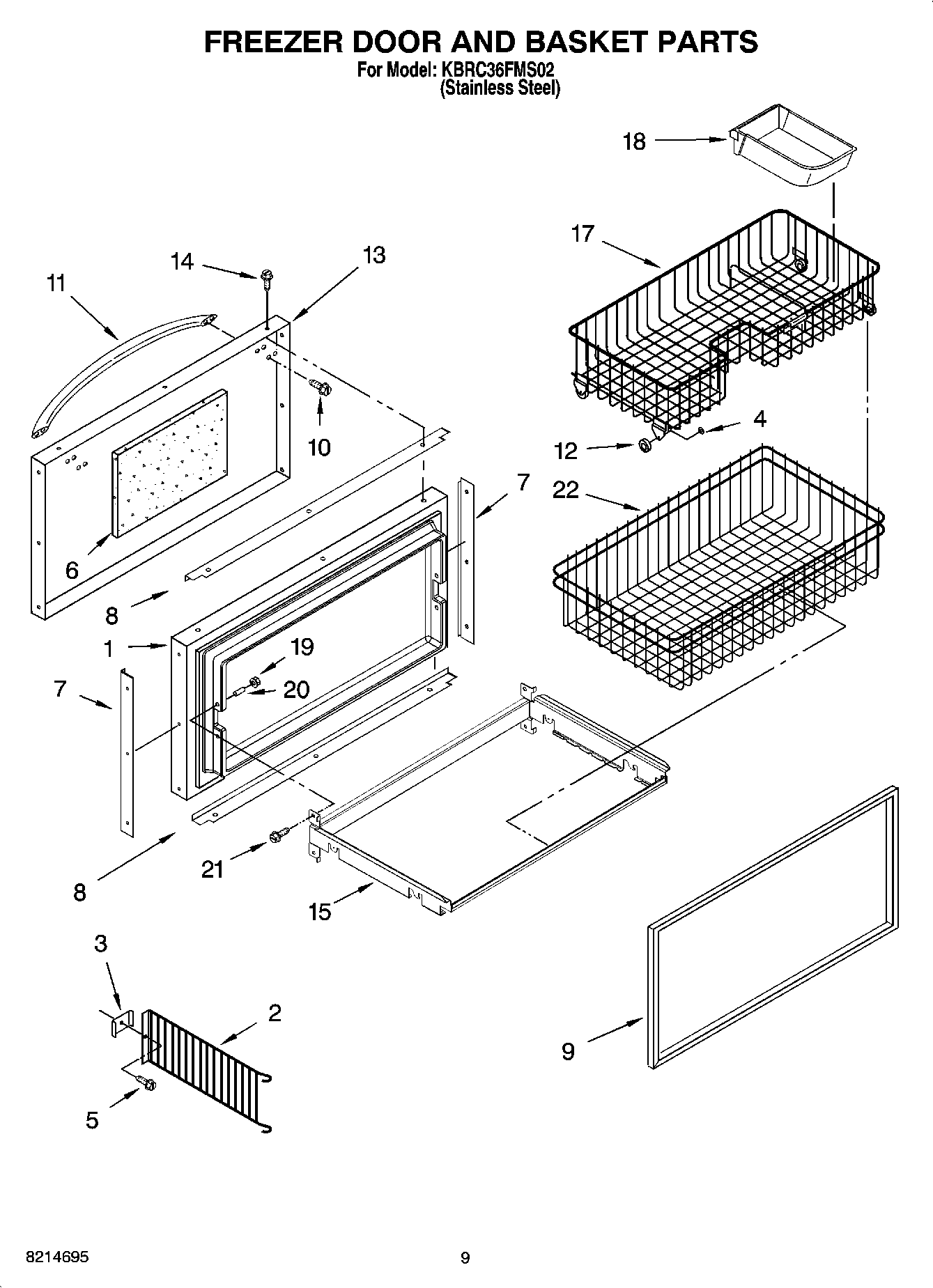

KBRC36FMS02 06 – FREEZER DOOR AND BASKET PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Item 9)
2	Divider, Basket
3	Clamp, Divider
4	2207415 Whirlpool Refrigerator Nut
5	Screw
6	Foam, Filler
7	Spacer, Door Edge Top & Bottom
8	2300027 Whirlpool Spacer
9	2302710 Whirlpool Refrigerator Door Gasket
10	WP308544 Whirlpool Screw
11	Handle, Door (Stainless Steel)
12	W11214482 Whirlpool Refrigerator Roller
13	Skin, Door (Stainless Steel)
14	WP8281250 Whirlpool Refrigerator Screw
15	Bracket Assembly, Freezer Basket
17	Basket, Upper
18	Pan, Ice Cube
19	WP2207454 Whirlpool Refrigerator Nut
20	Bushing
21	Screw
22	Basket, Freezer Lower
