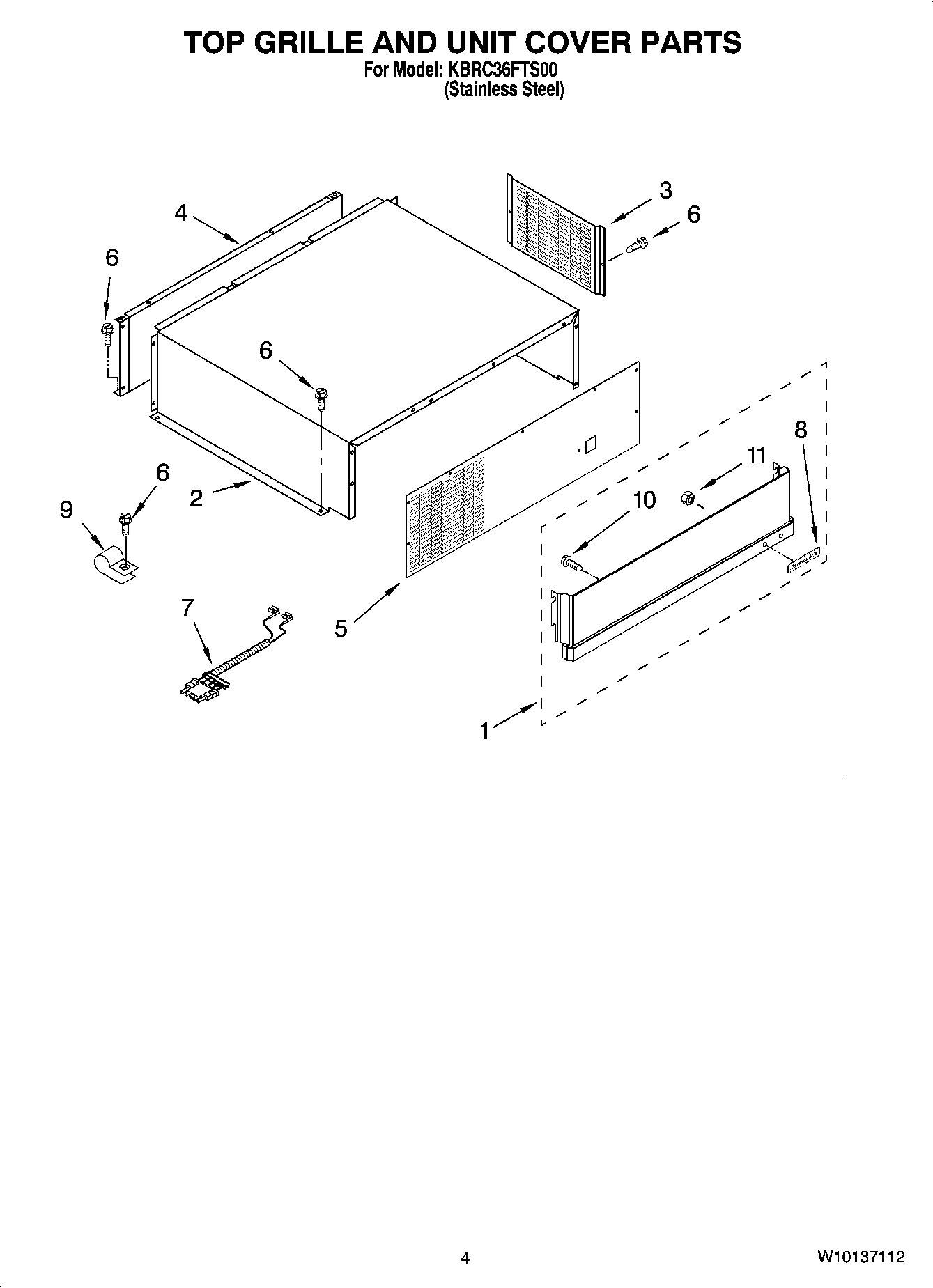

KBRC36FTS00 03 – TOP GRILLE AND UNIT COVER PARTS

Written by

Products

Position	Product
1	Top Grille Assembly
2	Cover, Unit
3	Grille, Condenser
4	2256466 Whirlpool Refrigerator Unit Cover
5	Front, Unit Cover
6	WP965173 Whirlpool Dishwasher Screw
7	2187894 Whirlpool Harness Switch
8	NAMEPLATE
9	489348 Whirlpool Refrigerator Tube Clamp
10	WP489399 Whirlpool Refrigerator Screw
11	WP2004333 Whirlpool Refrigerator Nut
