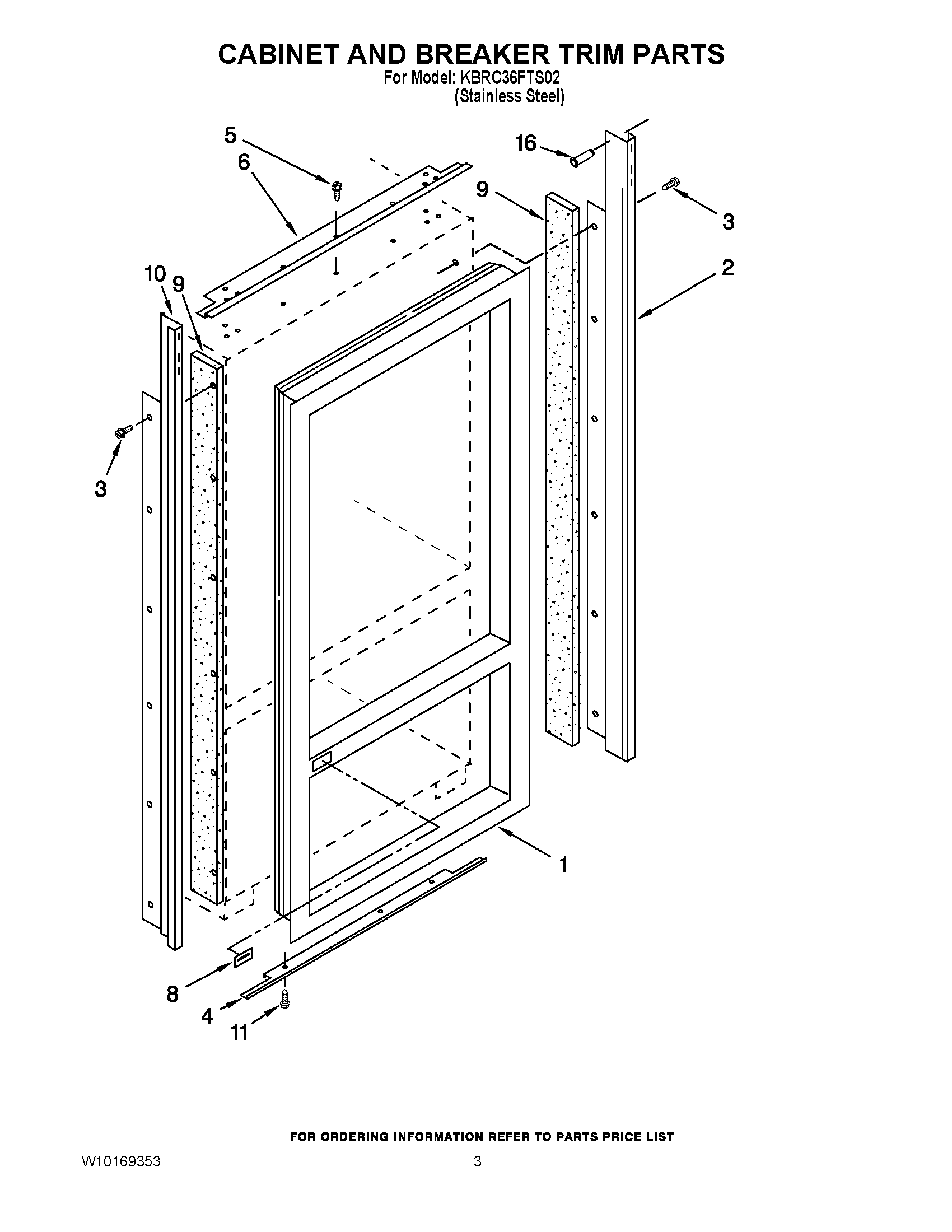

KBRC36FTS02 02 – CABINET AND BREAKER TRIM PARTS

KBRC36FTS02 02 – CABINET AND BREAKER TRIM PARTS

Written by

in

KBRC36FTS02 02 – CABINET AND BREAKER TRIM PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2CABINET TRIM, RIGHT SIDE
3WP1163283 Whirlpool Air Conditioner Screw
42316686 Whirlpool Refrigerator Cabinet Trim
5W11624204 Whirlpool Screw
62314019 Whirlpool Refrigerator Cabinet Trim
8Cover, Hinge
9Seal, Side Trim
10CABINET TRIM, LEFT SIDE
11WP489464 Whirlpool Refrigerator Screw
16WPW10121451 Whirlpool Refrigerator Insert
