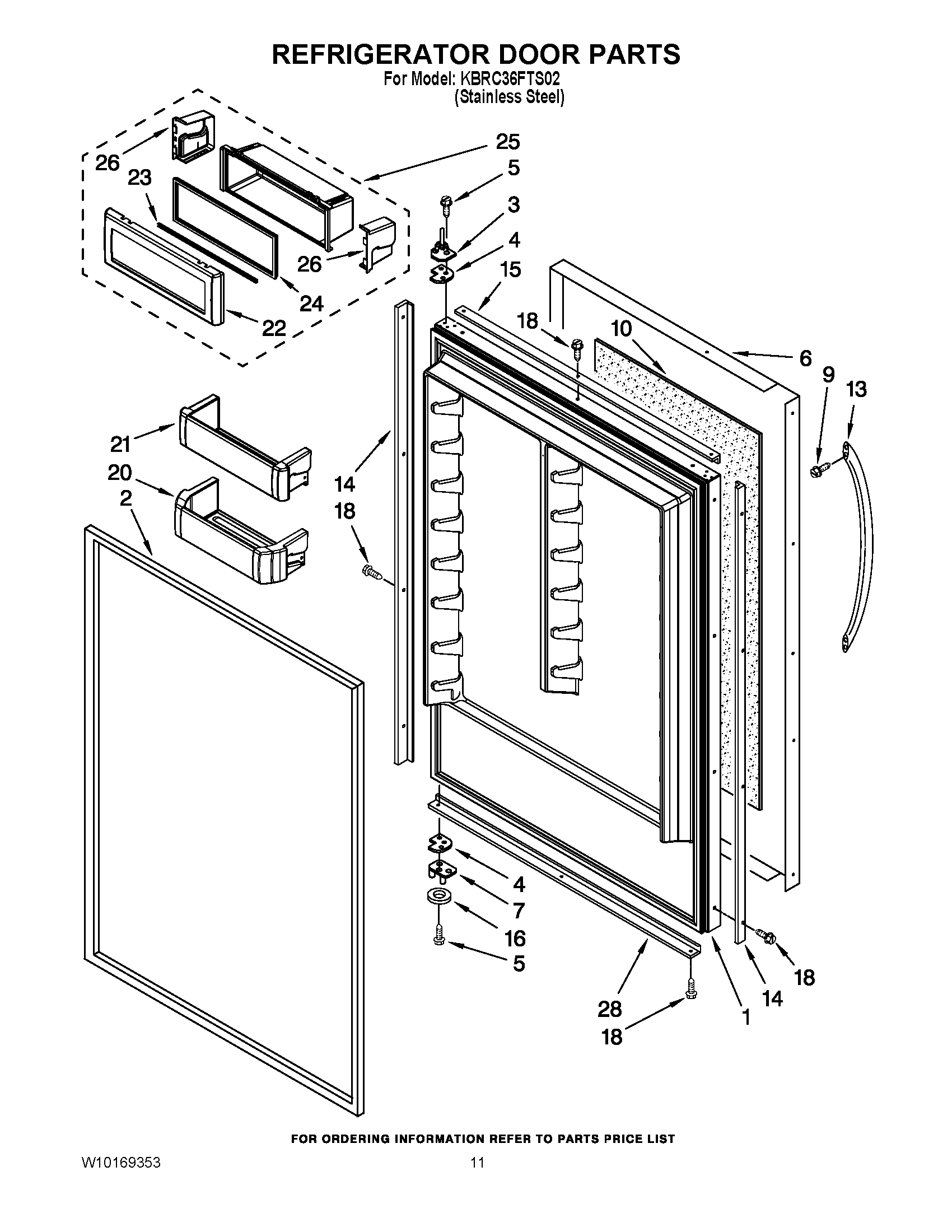

KBRC36FTS02 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Refrigerator (Includes Item 2)
2	2302709 Whirlpool Refrigerator Door Gasket
3	Hinge Assembly, Top
4	W11673500 Whirlpool Door Hinge
5	WP8533980 Whirlpool Refrigerator Screw
6	Skin, Door
7	2316805 Whirlpool Refrigerator Door Hinge
9	WP308544 Whirlpool Screw
10	Filler, Foam
13	WP2316868 Whirlpool Refrigerator Handle
14	Spacer, Door Edge – Side (2)
15	SPACER, DOOR EDGE (TOP)
16	WP2006346 Whirlpool Refrigerator Washer
18	WP8281250 Whirlpool Refrigerator Screw
20	W10323749 Whirlpool Refrigerator Cantilever Bin
21	W11590561 Whirlpool Refrigerator Cantilever Bin
22	Door, Utility Bin
23	Rail, Lid
24	Gasket, Utility Bin
25	W10323044 Whirlpool Refrigerator Cantilever Bin
26	WPW10323172 Whirlpool Refrigerator Retainer End Cap
26	WPW10323173 Whirlpool Refrigerator Retainer End Cap
28	SPACER, DOOR EDGE (BOTTOM)
