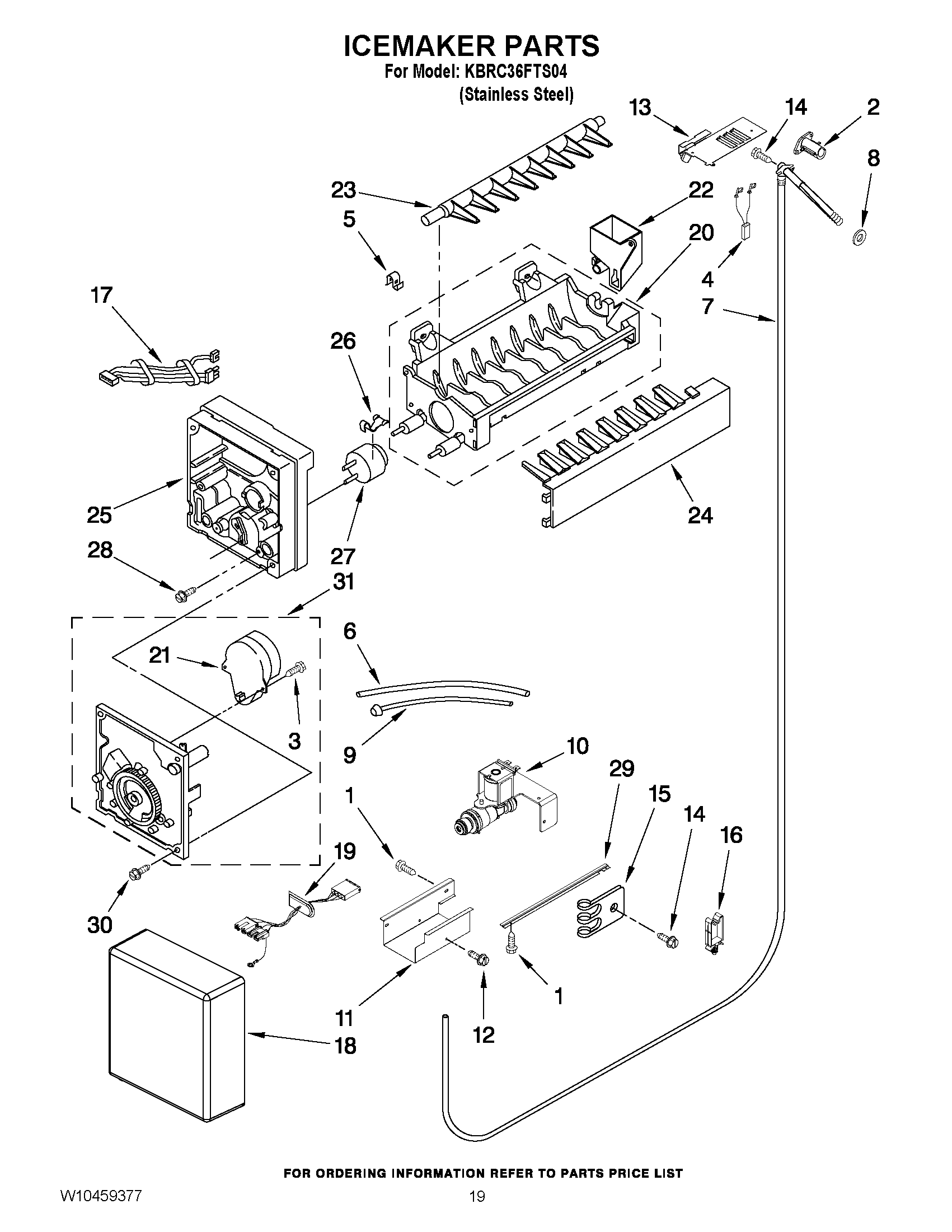

KBRC36FTS04 11 – ICEMAKER PARTSadmin2025-04-26T09:35:29+00:00KBRC36FTS04 11 – ICEMAKER PARTS ProductsPositionProductNICleaner, Stainless SteelNIW10129081 Whirlpool Refrigerator Handle1W11624204 Whirlpool Screw2WP2221240 Whirlpool Refrigerator Heater3489136 Whirlpool Refrigerator Screw4Jumper, Heater Fill Tube5WP628379 Whirlpool Refrigerator Clip6W11565275 Whirlpool Refrigerator Water Tube72317847 Whirlpool Refrigerator Water Tube8WP1106508 Whirlpool Refrigerator Gasket9W11533506 Whirlpool Refrigerator Water Tube10VALVE-INLT REFR11Shield, Valve12WP489128 Whirlpool Refrigerator Screw13WP2221231 Whirlpool Refrigerator Shield14WP489464 Whirlpool Refrigerator Screw15WP488366 Whirlpool Refrigerator Clamp16CLIP, TUBE172310136 Whirlpool Refrigerator Wire Harness18WPW10289690 Whirlpool Ice Maker Cover19W10279393 Whirlpool Refrigerator Wire Harness20WPW10190929 Whirlpool Refrigerator Ice Maker Mold218201515 Whirlpool Refrigerator Motor and Gear Module Kit22W10122561 Whirlpool Refrigerator Cup Fill23WP627843 Whirlpool Refrigerator Ejector Arm24WPW10122563 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw29Support, Valve30WP681249 Whirlpool Screw Assembly100WPW10277450 Whirlpool Refrigerator Icemaker
