KBRC36FTS06 06 – SHELF PARTS

KBRC36FTS06 06 – SHELF PARTS

Written by

in

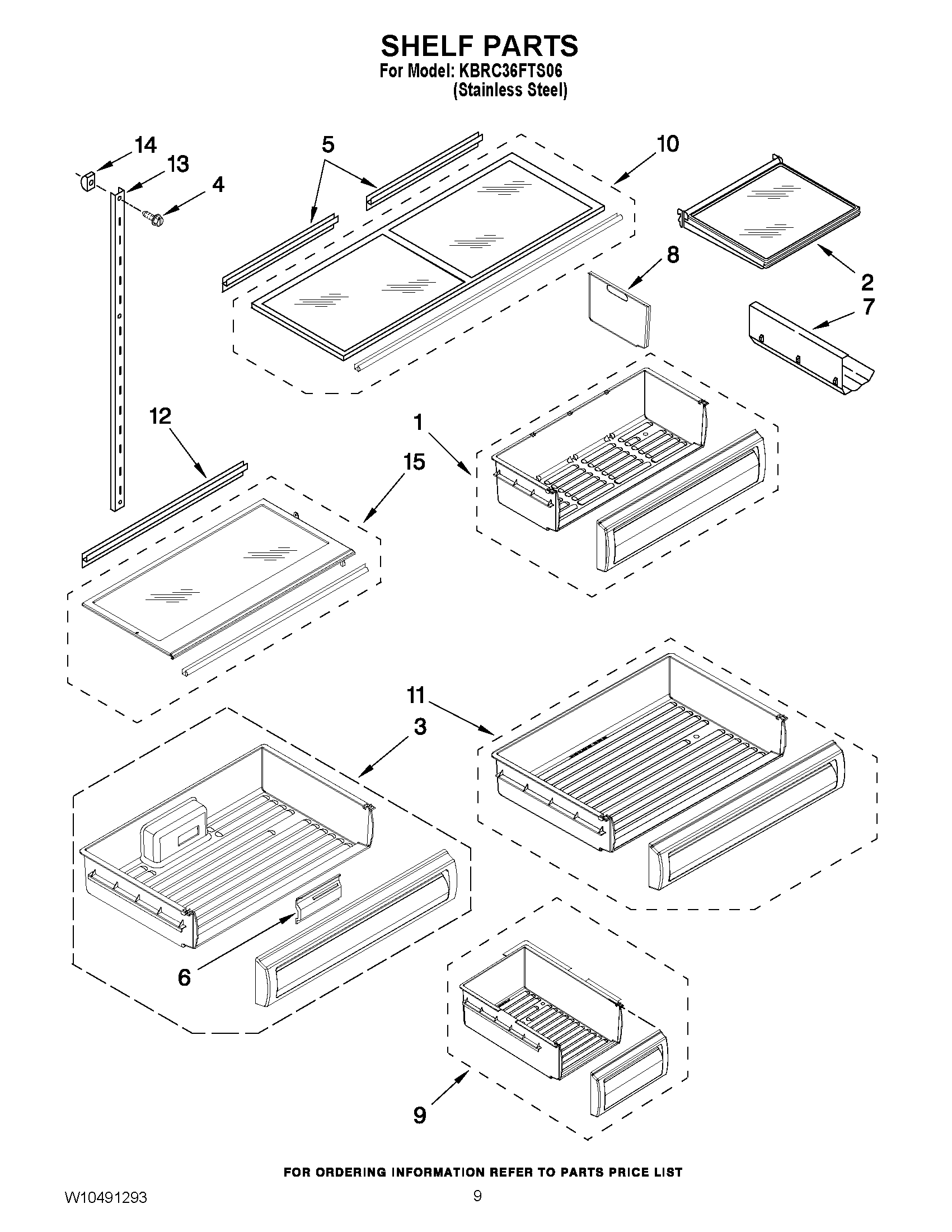

KBRC36FTS06 06 – SHELF PARTS

Products

PositionProduct
1WP2256375 Whirlpool Refrigerator Crisper Pan
2Shelf (4)
3DELI PAN ASSEMBLY (INCLUDES ITEM 6)
42006475 Whirlpool Refrigerator Screw
52309398 Whirlpool Pan Gasket
62317939 Whirlpool Refrigerator Deflector
7W10777924 Whirlpool Refrigerator Wine Rack
8Divider, Crisper Pan
9Ice Pan Assembly (Includes 10)
10WPW10183749 Whirlpool Glass Shelf
112327512 Whirlpool Freezer Pan
12Gasket, Rear
13Ladder, Shelf (4)
14520965 Whirlpool Refrigerator Support
15Cover, Deli Bin
